Product Details:
Payment & Shipping Terms:
|
| Type: | Sucker Rod Hook | Processing Type:: | Forging |
|---|---|---|---|
| Coating: | Anti-corrosion Painting | Max Related Load: | 98KN-343KN (10- 35 Tons) |
| Hook Open Dimension: | 1.7/8 In(47.6mm) | Length: | 500-1200mm |
| Package: | Wooden Case | Material: | Alloy Steel, Alloy Steel |
| High Light: | oilfield spare parts,drilling accessories tools |
||

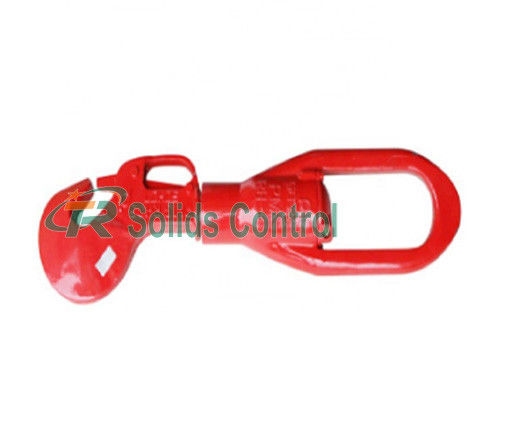

Oil Drilling Sucker Rod Elevator for Sale / API 8A Sucker Rod Hook
Main Introduction
Sucker Rod Hook is one of the hoisting equipments for sucker rods. It is suitable for all depth and operating condition. RH suck rod hook is composed of hook, bail and locking assembly. The bail of suck rod is able to get into the hook without opening the locking arm. After the bail is on right place, locking arm reset (preventing the bail of suck rod get out of hook) under the function of spring which ensures the lifting safety of suck rod hook. In addition, put a bush on the spring in case the something gets into the locking assembly and get the locking assembly lost the function.
Our sucker rod elevator is composed of elevator body and rod plates, which allow quick convert ion of the elevator body to various rod or pipe size. Additional saving is realized because work plates can be replaced instead of replacing the entire elevator. The basic elevator design provides excellent balance and non-tilt performance. Large access to the front and rear release levers assures easy, safe latching and unlatching. They are designed and manufactured according to API Spec 8C PSL1-specification for drilling and production Hoisting Equipment.
Parameters of RH Series Sucker Rod Hook
| Model | RH20 | RH25 | RH25L | RH35 |
| Rated capacity (short tons) |
20 us tons (180 KN) |
25 us tons (225 KN) |
25 us tons (225 KN) |
35 us tons (315 KN) |
| length | 488 mm | 494 mm | 798mm | 960mm |
Packing & Shipping
Packaging:Standard seaworthy packaging or as per requirement.
Shipping:By air or sea.
Our sucker rod is packed in wood cases or pallets as per API standard or as customer’s requirement. Professional packing and loading machines make products’ quality & appearance free from damage.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
