Product Details:
Payment & Shipping Terms:
|
| Shape: | Round | Rated Capacity(Kn): | 890 |
|---|---|---|---|
| Hook Style: | 3-Hook | Sheave Qty/Dia(mm): | 3/609.6 |
| Wire Line Od(mm): | 25.4 | Weight (Kg): | 1010 |
| Dimension: | 1685× 675× 510mm | ||
| High Light: | oilfield spare parts,drilling accessories tools |
||

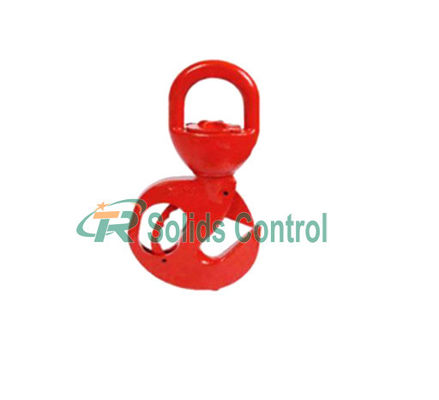

Sucker Rod Hook , Sucker Rod Wrench for Oilfield Wellhead Tools
Main Introduction
API 8A/ 8C SER Sucker Rod Elevators series are important apparatus to handle the descending and ascending of the sucker rod in the operation of well-repairing in oilfield.
Sucker Rod Hook is one of the hoisting equipments for sucker rods. It is suitable for all depth and operating condition complete with single-hand latch construction and safety ring. It is safe and dependable enough. The sucker rod hook is designed and manufactured according to API Spec 8A/8C.
Specifications of our Sucker Rod Hook
| Model | YG100 | YG150 | YG170 | YG250 |
| Rated Capacity(kN) | 890 | 1350 | 1700 | 2550 |
| Sheave qty/Dia(mm) | 3/609.6 | 4/915 | 5/915 | 5/915 |
| Hook style | 3-hook | 3-hook | 3-hook | 3-hook |
| Wire line OD(mm) | 25.4 | 26/29 | 29 | 32 |
| Hook opening dimension(mm) | _ | 165 | 180 | 190 |
| Spring travel(mm) | _ | 180 | 180 | 180 |
| Dimension (mm) | 1685×675×510 | 3195×960×616 | 3307×960×616 | 3450×970×850 |
| Weight (kg) | 1010 | 3590 | 4585 | 4732 |
Packing & Shipping
Packaging:Standard seaworthy packaging or as per requirement.
Shipping:By air or sea.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
