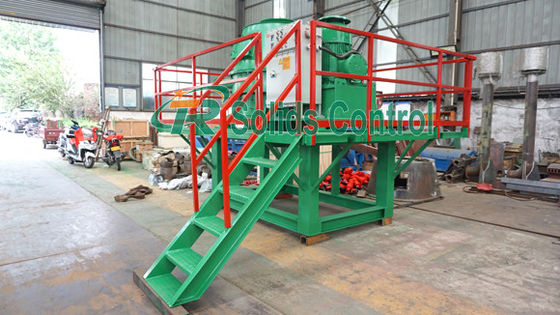

900r/Min Rotary Speed Oilfield Service Equipment Cutting Dryer High Performance

High Quality Oilfield Service Equipment Vertical Cutting Dryer for Sale

Brief Introduction

Vertical cutting dryer is used to do further separation for cuttings to recover valuable drilling fluids, dry solids discharge, clean return fluid and reduce mud loss. Drilling cuttings discharged by shale shaker, desander, desilters (or mud cleaner) can be fed into the dryer’s hopper and spaced widely to the inner screens. In this process we could achieve drying and separating efficiency.


The Vertical cutting dryer has been done strict balance testing for all major rotary components to minimize vibration & noisy.The Cutting Dryer is the ideal products for oil based drilling waste management.

Vertical Cutting Dryer fixed with individual oil lubrication system with automatic alarm for pressure limit. The main motor and oil pumpmotor is interlocked with each other for avoiding the start of the main motor prior to the start of the oil pump motor.

Main Application

TRCD series vertical cutting dryer is widely used in these industries: Oil Mud Seperation, Oil and Gas Drilling, Drilling Waste Management, Oil Sludge Dewatering Systems, Trenchless HDD & Tunnelling, Coal Bed Gas Solids Control System, Bored Pile.

Key Features of TRCD Series Vertical Cutting Dryer

• Efficient capacity and advanced design;
• Assembled with air knife, making it prevent basket from blocking;
• Independent oil cooling system, matched with scientific oil tank cooling system, making it meet operating requirement in high temperature environment;
• The highest rotary speed is 900 rpm. It could form 420 G separation factor, and separate the fluid from drilling waste effectively;
• Every changeable selected parts pass dynamic balance test, meeting the balance of the complete machine;
• Discharging scraper is made from high chromium cast iron, with long service life.


Specification of TRCD Series Vertical Cutting Dryer



Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
