| Types: | Z23X-35-DN50 | Operating Pressure(Mpa): | 35(5000PSI) |
|---|---|---|---|
| Nominal Bore Diameter(mm): | Φ50(2) | Working Media: | Mud |
| Type Of Connection: | Union-connected | Joint Connection Sizes(D): | TR20X6 |
| Length Of Structure（L）: | 205 | ||
| High Light: | oilfield spare parts,drilling accessories tools |
||

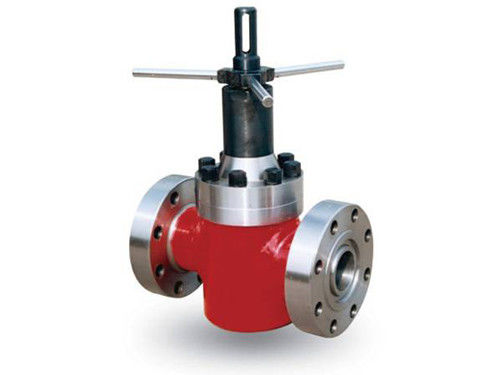

Metallic Seal Mud Valve
Mainly applicable to the equipment of mud circulatory system for drilling wells,theZ23X-35 series of mud gate valves are used to control or shut off the circulation of the mud fuild flow. The trapezoidal thread connection of the mud gate value makes it easy and efficient to install. With its high degree of rigidity ,the mud gate value is safe and reliable to operate. The seat and gate of the value are sealed by use of the parallel elastic sealing technology to ensure good sealing effects and ease of opening and closing. The two ends of value,which are connected with the pipeline,are tightly sealed and the close contact is maintained through movable spherical touch. In addition ,the swing joints combined with the O-type rubber sealing rings ensure greater sealing effectiveness and require less straightness of the pipeline length where are the value is to be installed.
|
No. |
Name | Quantity | Material | Remark |
| 1 | Note Oil Cup | 1 | Assy. | |
| 2 | Hand wheel | 1 | Steel | |
| 4 | Handle | 1 | Steel | |
| 6 | Nut of cover | 1 | Steel | |
| 7 | O wave spring | 1 | NBR | |
| 8 | Stent | 1 | Steel | |
| 9 | Valve lever | 1 | 410 | |
| 10 | O wave spring | 1 | NBR | |
| 11 | Fillers press cover | 1 | Steel | |
| 12 | Stem seal assembly | 1 | Assy. | |
| 13 | Tight set screw | 1 | Steel | |
| 15 | Connector | 1 | 4130 | |
| 16 | Valves cover | 1 | 4130 | |
| 17 | LocationPin | 1 | Steel | |
| 18 | O wave spring | 1 | NBR | |
| 19 | Gate plate | 1 | 410 | |
| 20 | Valve body | 1 | 4130 | |
| 21 | Valves seat | 1 | Steel+NBR | |
| 22 | Handle sales | 1 | Steel | |
| 23 | Valve cover bolts | 2 | 4140 | |
| 24 | Nut of cover | 2 | 1045 | |
| 25 | Valve bolts | 4 | 4140 | |
| 26 | Valve Nut | 4 | 1045 |
Technical Parameter
| Types | Z23X-35-DN50 | Z23X-35-DN65 | Z23X-35-DN60 | Z23X-35-DN100 |
| Operating pressure(Mpa) | 35(5000PSI) | |||
| Nominal bore diameter(mm) | Φ50(2) | Φ63(2-1/2) | Φ76(3) | Φ101.6(4) |
| Working media | mud | |||
| Type of connection | Union-connected | |||
| Joint connection sizes(D) | TR20X6 | TR130X6 | TR150X6 | TR180X8 |
| Length of structure(L) | 205 | 235 | 270 | 330 |
