Product Details:
Payment & Shipping Terms:
|
| Size: | 8 1/2 | Type: | ORI2532 |
|---|---|---|---|
| TFA: | 0.6-1.5 | Gauge Length: | 2-3 |
| Hydraulic Flow Rate(gpm): | 240-550 | Rotation Speed(rpm): | 60-1000 |
| Weight On Bit(klbs): | 17-29 | ||
| High Light: | drilling accessories tools,drill accessories kit |
||
|
Application:
|
| SRF BITS specializes in new,reruns and retips for the following: |
| --Mining Bits |
| --Oil Well Bits |
| --Water Well Bits |
| --Geothermal Bits |
| --Environmental Bits |
| --Construction Bits |
| --Exploration Bits |
| --Blast Hole Bits |
| SRF Bit carries a complete line of the following: |
| --New and Surplus Bits |
| --Rerun and Retip Bits |
| --Blade Bits(wing bits) |
| --Hole Openers |
| --PDC drill bits |
| For tricone bit,size range: 3"-26". |
| For PDC drill bit,size range: 3"to 17 1/ |

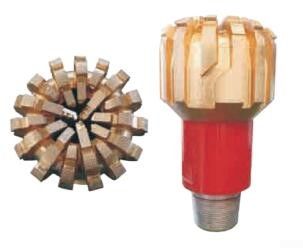

6-Blade matrix body PDC bits
Technical Data
| Size | Type | TFA | Gauge length | Hydraulic flow rate(gpm) | Rotation speed(rpm) | Weight on bit(klbs) |
| 8 1/2 | ORI2532 | 0.6-1.5 | 2-3 | 240-550 | 60-1000 | 17-29 |
| 6 | ORI2532 | 0.3-0.8 | 2.5-3.5 | 190-300 | 60-1000 | 10-20 |
| 5 7/8 | ORI2532 | 0.3-0.8 | 2.5-3.5 | 190-300 | 60-1000 | 10-20 |
| 8 1/2 | ORI2532L | 3.5-4 | 3.5-4 | 240-550 | 60-1000 | 17-29 |
| 6 | ORI2532L | 3.5-4 | 12-19 | 190-300 | 60-1000 | 10-20 |
| 5 7/8 | ORI2532L | 3.5-4 | 12-19 | 190-300 | 60-1000 | 10-20 |
| 1. PDC Bit | |
| Type and Features | PDC bit can be customized for oil well,water well, mining, explorer well drilling. |
| Suitable Formation | Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble. |
| Main Type | Bit Diameters: 5 7/8"~17 1/2" etc. Body Type: Matrix or Steel Cutter Sizes:5/16"(8mm),1/2"(13mm),5/8"(16mm),3/4"(19mm),etc. Blades:2~9 Wings. |
| 2. PDC Matrix Body Core Bit | |
| Type and Features | PDC core bit can be customized for oil well,water well, mining, explorer well drilling. |
| Suitable Formation | Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble. |
| Main Type | 75/54mm,94/74mm,113/89mm,113/109mm,153/129mm,215/105mm,etc. |
| 3. PDC Flat-top Concave Bit | |
| Type and Features | 3 wings flat-top concave PDC bits. |
| Suitable Formation | Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble. |
| Main Type | 65mm, 75mm, 94mm, 113mm, 133mm , etc. |
