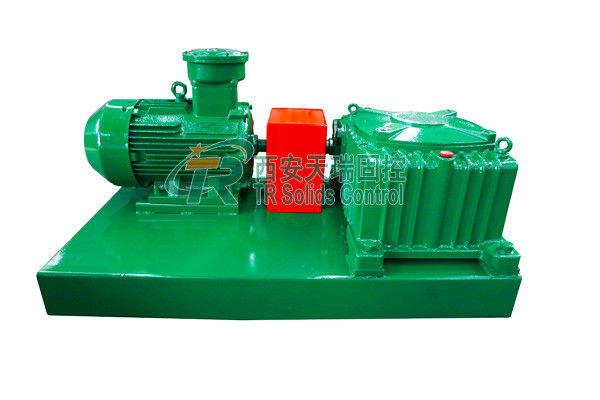

800mm High Efficiency Mud Mixer Machine , Antiseptic Effect Mud Agitator

800mm High Efficiency Mud Mixer Machine , Antiseptic Effect Mud Agitator
800mm High Efficiency Mud Mixer Machine , Antiseptic Effect Mud Agitator
video play

Large Image :  800mm High Efficiency Mud Mixer Machine , Antiseptic Effect Mud Agitator

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRJBQ11
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wooden or iron case
Delivery Time: 10 days after receiving deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 5000 Sets / Month
Contact Now
Detailed Product Description
Motor Power: 11kw Impeller Speed: 60/72r/min
Impeller Diameter: 800mm Impeller Qty: 2pcs
Ex Standard: ExdIIBt4/IECEX/A-TEX Dimension: 1297*740*692mm
Weight: 430kg Key Words: High Quality 11kw Mud Agitator For Well Drilling Fluid Mixing System, With Excellent Performance And Long Service Time
Highlight:

mud tank agitator

,

mud mixer machine

800mm High Efficiency Mud Mixer Machine , Antiseptic Effect Mud Agitator



Product Introduction



Mud agitator is an perfect device widely used in the mud solids control system. It is installed in slurry storage tanks or mud tanks to stir slurry/mud to prevent drilling fluid solid particles depositing in the mud tank. TRJBQ mud agitator consists of reducer and explosion-proof motor. It’s easy to maintain, and suitable for use in the field of harsh working conditions.

Our agitator has a large agitation strength, wide spread, and can reduce starting torque. TR Solids Control could supply both vertical mud agitator and horizontal mud agitator. Horizontal agitator is divided into coupling type and direct type agitator. TRJBQ series mud agitator is widely used in oil drilling, natural gas drilling, shield construction, city bored piled and other non-excavation site mud mixing.


Main benefits of TRJBQ series mud agitator

  1. Explosion-proof electric motor.
  2. The gearbox use worm gear. More reliable.
  3. Good heat exchange performance makes agitator faster cool down.​
  4. Optimized product structure, small size, compact structure.
  5. Running smoothly, small operating noise, long usage life, less wearing parts, and cost-saving.
  6. Motor and gear box will be connected by coupling directly. Agitation speed is more stable.

Technical Data of TRJBQ Series Mud Agitator



Model Motor Power Impeller Speed Impeller Diameter Impeller Qty. Explosion-proof Standard Weight Dimension
TRJBQ3 3kw 60/72r/min 600mm 1



ExdIIBt4/IECEX/A-TEX

 190kg 909×525×527mm
TRJBQ5.5 5.5kw 600mm 1 250kg 1072×610×588mm
TRJBQ7.5 7.5kw 650mm 2 380kg 1157×670×607mm
TRJBQ11 11kw 800mm 2 430kg 1297×740×692mm
TRJBQ15 15kw 950mm 2 480kg 1330×890×747mm
TRJBQ18.5 18.5kw 1000mm 2 740kg 1510×890×753mm
TRJBQ22 22kw 1100mm 2 780kg 1529×890×753mm
Remark Above weight and dimension exclude mud agitator shaft.



800mm High Efficiency Mud Mixer Machine , Antiseptic Effect Mud Agitator 0





Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). TR Solids Control has become VIP (assigned) supplier and built strategic partnership with some coutries' national petroleum companies. Welcome friends from all over the world to come to visit our factory and guidance our work.





Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
