Product Details:
Payment & Shipping Terms:
|
| Bowl Diameter: | 355mm | Bowl Length: | 1250mm |
|---|---|---|---|
| Bowl Speed: | 0~3200r/min | Capacity: | 40m3/h |
| G-Force: | 0~2035 | Separation Point: | 2-7um |
| Differential Speed: | 0~30r/min | Main Drive Motor: | 37kw |
| Auxiliary Motor Power: | 7.5kw | Ex Standard: | ExdIIBt4/IECEX/A-TEX |
| Weight: | 3200kg | Dimension: | 2600*1620*1750mm |
| High Light: | liquid solid separation centrifuge,drilling mud decanter centrifuge |
||

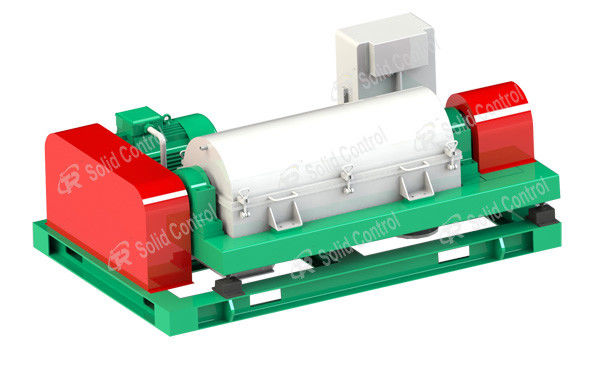

Oilfield Horizontal Decanter Centrifuge with Personalized Rotary Speed
Product Introduction
Decanter centrifuge is the fourth solid control equipment in handling drilling fluid. It’s used to separate suspension liquid by adopting principle of centrifugal sedimentation. According to different rotary speed, it can be divided into middle speed centrifuge, high speed centrifuge and high speed frequency centrifuge. It mainly separates 2-7μm solid particles in drilling fluid. TR decanter centrifuge is widely used in oil & gas drilling, drilling waster management and sewage treatment.
TR Solids Control is a lead and professional manufacturer of decanter centrifuge. TR decanter centrifuge is high in recovery rate, effective in solids control and remarkable in the reduction of cost spent on drilling mud resupplying and management.
Features of TRLW Series Decanter Centrifuge
Technical Data of High Speed Decanting Centrifuge
| Model | TRGLW355N-1 | TRGLW450N-2 | TRGLW450N-3 | TRGLW550N-1 |
| Bowl Diameter | 355mm (14inch) | 450mm (17.7inch) | 450mm (17.7inch) | 550mm (22inch) |
| Bowl Length | 1250mm(49.2inch) | 1250mm(49.2inch) | 1600(64inch) | 1800mm(49.2inch) |
| Max Capacity | 40m3/h | 60m3/h | 70m3/h | 90m3/h |
| Max Speed | 3800r/min | 3200r/min | 3200r/min | 3000r/min |
| Rotary Speed | 3200r/min | 3000r/min | 2800r/min | 2600r/min |
| G-Force | 3018 | 2578 | 2578 | 2711 |
| Separation | 2~5μm | 2~5μm | 2~5μm | 2~5μm |
| Main Drive | 30kW-4p | 30kW-4p | 45kW-4p | 55kW-4p |
| Back Drive | 7.5kW-4p | 7.5kW-4p | 15kW-4p | 22kW-4p |
| Weight | 2950kg | 3200kg | 4500kg | 5800kg |
| Dimension | 2850X1860X1250 | 2600X1860X1250 | 2950X1860X1250 | 3250X1960X1350 |
(Note: Rotary speed can be adjustable as per user's requirements)
Our Services:
1. We are a professional and well-know manufacturer of decanter centrifuge with more than 10 years experience.
2. Our factory has Automantic production line.
3. We have quality management system and relevant certificates.
4. 24 hours oversea service online.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
