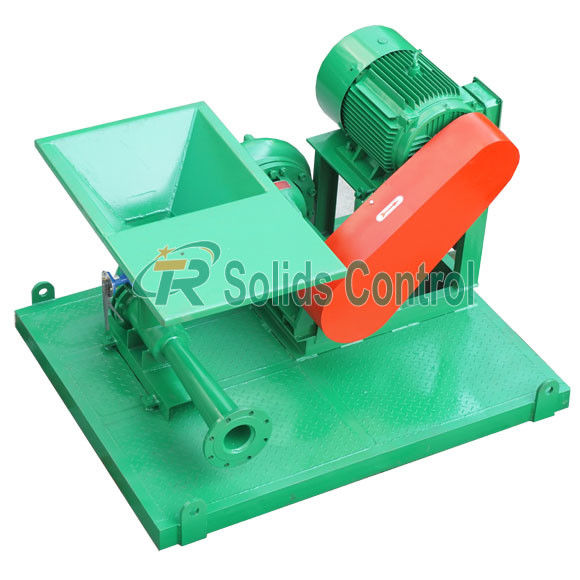

HDD / Trenchless Tunnelling Mud Mixing Hopper with 75*75cm Hopper Size

HDD / Trenchless Tunnelling Mud Mixing Hopper with 75*75cm Hopper Size
HDD / Trenchless Tunnelling Mud Mixing Hopper with 75*75cm Hopper Size

Large Image :  HDD / Trenchless Tunnelling Mud Mixing Hopper with 75*75cm Hopper Size

Product Details:

Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRSLH150-40

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Iron or wooden case
Delivery Time: 20 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 3000 Sets Per Month
Detailed Product Description
Capacity: 180m3/h Matching Pump: TRSB6*5-13J
Motor Power: 45kw Work Pressure: 0.25 To 0.4Mpa
Inlet Diameter: 150mm Nozzle Diameter: 40mm
Hopper Dimension: 750*750mm Burden Speed: <80kg/min
Weight: 1450kg Dimension: 2200*1700*1200mm
High Light:

mud mixing hopper

,

mud mixer machine

Jet Mud Mixer For Petroleum Drilling And Horizontal Directional Drilling(HDD)



Main Introduction



Jet mud mixer is a combination of centrifugal pump and mixing hopper with pipelines. It is scientifically designed to be the optimal solution for mixing of both mud bulk material and mud additive chemicals into the drilling fluid. TRSLH series jet mud mixer is made up of one set(or multi-set) centrifugal pump and one set(or multi-set) jet mixing hopper installed in a base. Its hopper and centrifugal pump either can be combined to use or be installed separately.



Jet mud mixer is a special equipment to prepare and increase drilling fluids weight by adding and mixing bentonite. It changes density, viscosity and dehydration of drilling fluids. The effect is more prominent matching with shear pump. Our TRSLH series jet mud mixer is a unit used together with other solids control system for oil & gas drilling, trenchless tunnelling and horizontal directional drilling. We can manufacture duplex jet mud mixer according to user’s requirements.



TRSLH series jet mud mixer can be matched with other drilling solids control system. It’s safe and reliable, and easy to move. It can enhance dispersion effect of material, improve pressure head of mixed liquid, make the material recycle and mix enough in the mud tank.



Benefits of TRSLH Series Jet Mud Mixer


1. The jet mixing hopper and sand pump can either be combined or be installed separately, and they are connected by pipelines and valves. Seals adopt packing and mechanical double seal, which have good sealing performance.

2. Single jet mud mixer is composed of one sand pump, one jet mixing hopper that are installed in a base with pipe valves. Duplex jet mud mixer is composed of two sand pumps and two jet mixing hoppers.

3. Jet mud mixer can change the density, viscosity and water loss effectively, and also enhance material dispersion effect, improve the mixed liquid pressure head, so that the material in the tank fully mixed.



Technical Data of TRSLH Series Jet Mud Mixer



Model TRSLH150-50 TRSLH150-40 TRSLH150-30 TRSLH100
Matched Pump TRSB8×6-13J(55kw) TRSB6×5-13J(45kw) TRSB5×4-14J(37kw) TRSB4X3-11J(15kw)
Capacity 240m3/h 180m3/h 120m3/h 60m3/h
Work Pressure 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa
Inlet Diameter 150mm 150mm 150mm 100mm
Nozzle Diameter 50mm 40mm 30mm 30mm
Hopper Size 750x750mm 750x750mm 600x600mm 600x600mm
Burden Speed ≤100kg/min ≤80kg/min ≤60kg/min ≤40kg/min
Weight 1600kg 1450kg 1300kg 1100kg
Dimension 2200*1700*1200mm 2200*1700*1200mm 2000*1650*1100mm 2000*1650*1100mm



HDD / Trenchless Tunnelling Mud Mixing Hopper with 75*75cm Hopper Size 0



Main Application


Our Jet mud mixer is mainly used in city bored piling, trenchless HDD, tunneling construction, oil & gas drilling, Drilling Waste Management, Oil Sludge Dewatering Systems, Oil Mud Seperation, environment protection, Coal Bed Gas Solids Control System, mining, Water Drilling etc. Please feel free to ask us for any inquiry of mud cleaner. We would like to provide good price and excellent service.



Competitive Advantages



1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
