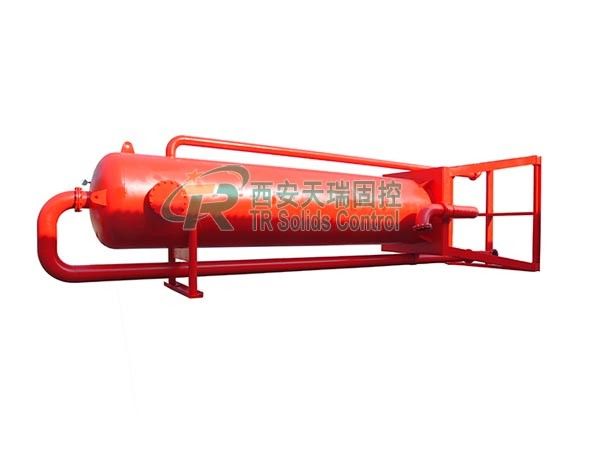

Oil and Gas Drilling Mud Gas Separator DN200mm Gas Discharge Pipe Included

Oil and Gas Drilling Mud Gas Separator DN200mm Gas Discharge Pipe Included
Oil and Gas Drilling Mud Gas Separator DN200mm Gas Discharge Pipe Included
video play

Large Image :  Oil and Gas Drilling Mud Gas Separator DN200mm Gas Discharge Pipe Included

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRZYQ-800
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days after receiving deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 30 Sets/Month
Detailed Product Description
Capacity: 180m3/h Main Body Diameter: 800mm
Inlet Pipe: DN100mm Output Pipe: DN150mm
Gas Discharge Pipe: DN200mm Weight: 1750kg
Dimension: 1900*1900*5700mm Key Words: Oil & Gas Drilling Mud Gas Separator, Trenchless HDD Mud Gas Separator
High Light:

poor boy degasser

,

poor boy gas separator

Oil and Gas Drilling TRZYQ Series Mud Gas Separator For 10% Discount Now

Introduction

Mud gas separator is ideal for use where drilling is likely to encounter large volumes of gas intruded, sour gas or when an operator is drilling with an underbalanced mud column. TRZYQ series mud gas separator is professional equipment to treat the gas invading mud. When the drilling mud has gas invading, the proportion of its weight and viscosity has a greater deviation not to meet the requirements of drilling. The serious situation is that would cause well kick, and even blowout accident occurred, if not to treat it timely.

TRZYQ series mud gas separator combined with the flare ignition device can be used to ensure drilling process smoothly. According to the pressure, our mud gas separator can be divided into normal pressure type and pressure auto-control type. Mud gas separator is a field proven and extremely reliable safety equipment designed for today’s challenging drilling operations.

Application

TRZYQ series Mud Gas Separator is primarily used to remove the enormous free gas from drilling fluids, including poisonous gases like H2S. Currently it is widely used in oil & gas drilling, Drilling Waste Management, city bored piling, trenchless HDD, mining, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, environment protection, Water Drilling etc.

Advantages of TRZYQ Series Mud Gas Separator

  1. Separates free gas accumulations especially toxic gases from drilling mud system.
  2. Reduces Hazardous Gas Threat. Separated gas is carried by discharge lines to safe area for combustion.
  3. Fail-safe gas delivery can be controlled by a back-pressure manifold valve in the flare line.
  4. Skid-Mounted and Trailer Transportable. Simplifying transport, spotting and installation.
  5. Versatile Configuration. Flow line adjustments can be raised or lowered  to minimize piping.
  6. Efficient degassing performance.


Technical Data of TRZYQ Series Mud Gas Separator


Model TRZYQ800 TRZYQ1000 TRZYQ1200
Capacity 180 m³/h 240 m³/h 320 m³/h
Main Body Diameter 800mm 1000mm 1200mm
Inlet Pipe DN100mm DN125mm DN125mm
Output Pipe DN150mm DN200mm DN250mm
Gas Discharge Pipe DN200mm DN200mm DN200mm
Weight 1750kg 2235kg 2600kg
Dimension 1900*1900*5700mm 2000*2000*5860mm 2200*2200*6634mm


Oil and Gas Drilling Mud Gas Separator DN200mm Gas Discharge Pipe Included 0

Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
