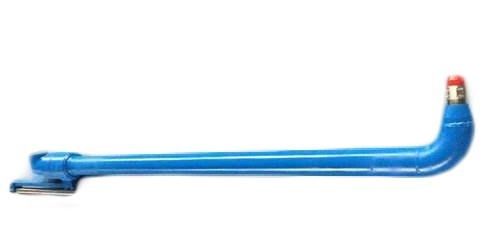

Solid Control 50mm Diameter Drilling Mud Gun

Solid Control 50mm Diameter Drilling Mud Gun
Solid Control 50mm Diameter Drilling Mud Gun Solid Control 50mm Diameter Drilling Mud Gun

Large Image :  Solid Control 50mm Diameter Drilling Mud Gun

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRNJQ50-3X
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 10 days after receiving deposit
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 30000 Pcs / Month
Detailed Product Description
Working Pressure: ≤3.2Mpa Diameter: 50mm
Rotation Angle: 360° Nozzle Qty: 3 Pcs
Weight: 120kg Key Words: Drilling Fluids Mud Gun, Oil & Gas Mud Gun, Solids Control Mud Gun
High Light:

drill fluid gun

,

solid control mud gun

Oilfield Drilling in Solid Control Mud Tank System NJQ Series Mud Gun



Main Introduction



TRNJQ Series Mud Gun is a bottom type mud gun. It is used to provide supplemental or primary mixing in mud tanks depending on the number being used and the pit size. They are best used in tank corners to keep solids from settling and a mud agitator is placed in the tank center.



TRNJQ series mud gun is the professional tool to prevent the mud precipitation in drilling mud circulation system. The impetus of mud gun can come from either mud pump or jet mud mixer. With simple structure, flexible operation, easy using, it is the ideal equipment to prevent the mud precipitation in solids control system.



TRNJQ mud gun is used to provide primary mixing inside mud tank. Due to the number and pit size, the treatment effect will differ accordingly. They are usually adopted to clean the wall tube and every corner of the tank in order to prevent the solids from sediment in the mud tank. It is usually matched with mud agitator to finish the whole process of agitation.



Key Benefits of TRNJQ Series Oilfield Mud Gun

  1. Can be 360° all-round rotation, easy to operate.
  2. Flexible on configuration of size and pressure rates.
  3. et nozzle is both replaceable and wearable.
  4. Adopts high-speed jet nozzle, with strong stirring and shearing function.
  5. Discharge nozzle are made from polyurethane material, with long service life.

Main Specifications of TRNJQ Series Mud Gun



Model TRNJQ50-3 TRNJQ50-3X TRNJQ80-3 TRNJQ80-3X
Diameter 50mm 50mm 80mm 80mm
Working Pressure ≤6.4MPa ≤3.2MPa ≤6.4MPa ≤3.2MPa
Nozzle No. 1/3e
Rotation Angle N/A 360° N/A 360°















Solid Control 50mm Diameter Drilling Mud Gun 0



Why you need to choose TR Solids Control?
As a professional oil and gas manufacturing company, TR Solids Control has many good experience in selling and serves for the oilfield industries for years. Quality is the culture of the company, we provide API and BV certified products for customer.



It would be our pleasure to begin a business relationship with you and supply u with our quality products, as a professional manufacturer, i would like to introduce our products to you and offer you a quote.

In general , we advice to make delivery by sea for large order, and for small order,Courier,By Air both ok,Also we respect your views of other transportation as well.



Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
