Flexible 1PC Nozzle 50mm API Drilling Rig Mud Gun

Flexible 1PC Nozzle 50mm API Drilling Rig Mud Gun
Flexible 1PC Nozzle 50mm API Drilling Rig Mud Gun Flexible 1PC Nozzle 50mm API Drilling Rig Mud Gun

Large Image :  Flexible 1PC Nozzle 50mm API Drilling Rig Mud Gun

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRNJQ50-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 10 days after receiving deposit
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 30000 Pcs / Month
Detailed Product Description
Working Pressure: ≤6.4Mpa Diameter: 50mm
Rotation Angle: N/A Nozzle Qty: 1 Pc
Weight: 50kg Key Words: Drilling Fluids Mud Gun, Oil & Gas Mud Gun, Solids Control Mud Gun
High Light:

drill fluid gun

,

solid control mud gun

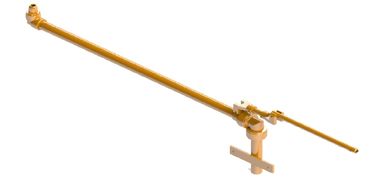

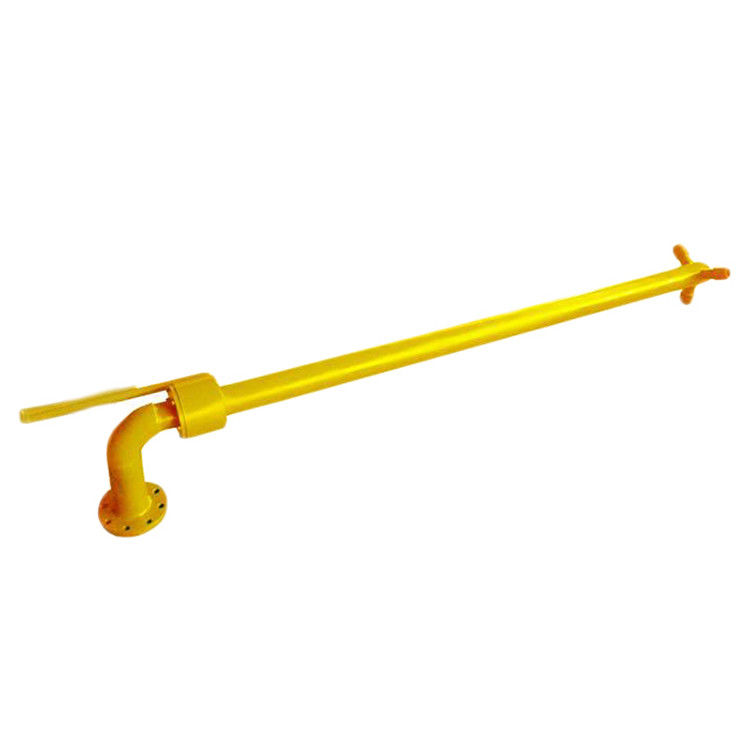

50mm API Oilfield Equipment Drilling Mud Gun with 1PC Nozzle



Product Introduction



When mud gun installed on the compartment of the solids control equipment (such as centrifuges, desander), it is possible to occur this case that liquid in pump could carry solid phase. Liquid carrying solid phase (especially sand), if continuous recycle will lead to rapid wear of pump components and mud gun nozzles. Drilling fluid density, viscosity and nozzle speed, size and feed pressure will have an impact on the use of results. In addition, the elbow, tee, valves and pipe size will also affect the actual performance of mud gun.



TRNJQ mud gun has simple structure, flexible operation, and can prevent mud precipitation in the corner. Generally mud guns include high pressure mud guns and low pressure mud guns. Drilling fluids through the nozzle produce high-speed flow for achieving the purpose of mixing drilling fluids. The pressure and flow rate are transmitted by the high pressure main drilling pump or by centrifugal pumps in most cases.



The mud gun in the mud system can also be used for transfer mud from compartment to compartment, like for trip tank compartment. TR Mud Guns are available for rotation adjustment to allow the operator to optimize the mud guns performance. The replaceable wear resistant jet nozzle is used, which is special design with better shearing.



Main Advantages of TRNJQ Series Mud Gun

  1. Jet nozzle is both replaceable and wearable.
  2. Adopts high-speed jet nozzle, with strong stirring and shearing function.
  3. Can be 360° all-round rotation, easy to operate.
  4. Flexible on configuration of size and pressure rates.
  5. Discharge nozzle are made from polyurethane material, with long service life.

Technical Data of TRNJQ Series Mud Gun



Model TRNJQ50-3 TRNJQ50-3X TRNJQ80-3 TRNJQ80-3X
Diameter 50mm 50mm 80mm 80mm
Working Pressure ≤6.4MPa ≤3.2MPa ≤6.4MPa ≤3.2MPa
Nozzle No. 1/3e
Rotation Angle N/A 360° N/A 360°















Flexible 1PC Nozzle 50mm API Drilling Rig Mud Gun 0



TR Solids Control exported directly or sold with supporting drillers to more than 30 countries and regions in the world such as Russia, United States, Australia, Latin America and the Middle East etc. Making sure to support first-class solid-control equipment with developing“Made in China”as our own tasks, holding forward-looking to each task, every drawing has technicity to direct, every process has worker to follow up and every product has QC to check on. To provide customers with a full set of solid-control equipment solutions effectively is our company’s goal.



Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
