Product Details:
Payment & Shipping Terms:
|
| Capacity: | 1800 GPM | Hydrocyclone Specs: | 12" |
|---|---|---|---|
| Hydrocyclone Qty: | 3pcs | Working Pressure: | 0.25-0.4Mpa |
| Inlet Diameter: | 8" | Outlet Diameter: | 10" |
| Separation Point: | 60-200 μm | ||
| High Light: | Hydrocyclones Desanding Machine,Polyurethane Drilling Mud Desander,Drilling Mud Desander Unit 1800 GPM |
||

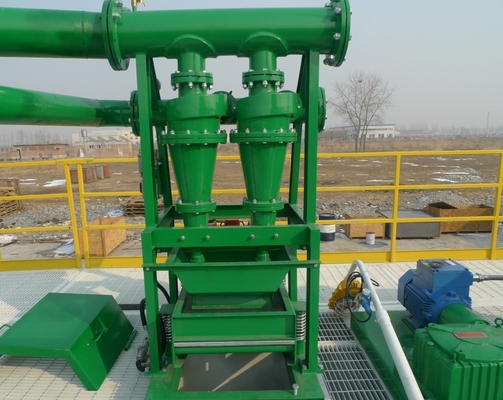

1800 GPM Drilling Mud Desander Without Bottom Shaker
Introduction
The drilling mud desander is located on the mud tank, and the drilling cuttings of 47-76 microns and above are separated by centrifugal force. Untreated slurry enters the desander cone from the horizontal inlet under pressure. The pressure and weight cause the solid particles to move near the cone wall and fall down. The fluid particles are pressed against the top and overflow through the pipe. There can be a vibrator to collect solids from the desander nozzle or drip directly onto the hopper.
The desalting capacity of this equipment is 30%-50% higher than that of the previous desander, which provides a reliable guarantee for increasing the drilling speed and reducing the drilling cost, and can also play the role of sand and mud removal in deep wells. Our mud desander is mainly used to remove finer solid particles in drilling fluid.
Main Benefits of TR Drilling Mud Desander
Main Parameters of TR Drilling Mud Desander
| Model | TRCS200-1S/2S | TRCS250-1S/2S | TRCS250-3S | TRCS300-1S/2S |
| Capacity | 60m3/120m3/h | 100m3/200m3/h | 300m3/h | 120m3/240m3/h |
| Cyclone Specs | 8” | 10” | 10” | 12” |
| Cyclone Qty | 1nos/2nos | 1nos/2nos | 3nos | 1nos/2nos |
| Working Pressure | 0.25-0.4Mpa | |||
| Inlet Size | DN125mm | DN150mm | DN150mm | DN150mm |
| Outlet Size | DN150mm | DN200mm | DN200mm | DN200mm |
| Separation Point | 45μm -75μm | |||
| Bottom Shaker | TRTS60 | TRTS60 | TRZS752 | TRZS752 |
| Dimension | 1510*1160*2000mm | 1510*1360*2250mm | 1835*1230*1810mm | 1835*1230*1810mm |
| Weight | 570kg/620kg | 670kg/760kg | 1300kg | 1380kg |
| Remark | All desander could be customized without bottom shaker. | |||
Application
Our Mud Desander is widely used in solid liquid separation, city bored piling, Drilling Waste Management, trenchless HDD, oil & gas drilling, tunneling construction, Oil Mud Seperation, Coal Bed Gas Solids Control System, mining, Oil Sludge Dewatering Systems, environment protection, Water Drilling etc. Our mud desander has good price and short delivery. It conforms to both API and ISO standard. We are sincerely waiting for your consulting!
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
