High Pressure API Drilling Fluid Screw Type Pump 60m3/H Flow Rate

China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
Professional solids control manufacturer. Their Product replacement shaker screens have long service time and good treatment. They help us a lot!

—— Mr. Samir

I purchased 10 pcs TRSB8*6-12J centrifugal pump from TR Solids Control. They are good-looking and really have good quality and considerate after sales service!

—— Mr. Warren

We ordered a set of mud system for our oilfield drilling field, TR product showed good performance in the site. We like that very much!

—— Diego Olbrich

TR shaker screens have top quality and good price. We have been purchasing them from TR for more than 4 years.

—— Nghiem Thic Hai

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Hossein Jafari

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Ms. Crina

We start use TRZS703 Shale Shaker since 2012, now we have 8 sets working in our customer's oilfield site, perfect machine with reasonable price.

—— S. A. Kazi

I'm Online Chat Now

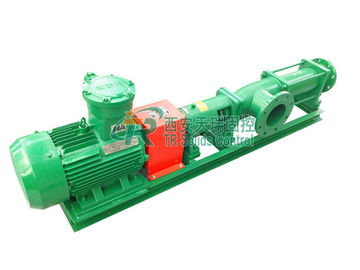

High Pressure API Drilling Fluid Screw Type Pump 60m3/H Flow Rate

High Pressure API Drilling Fluid Screw Type Pump 60m3/H Flow Rate
High Pressure API Drilling Fluid Screw Type Pump 60m3/H Flow Rate High Pressure API Drilling Fluid Screw Type Pump 60m3/H Flow Rate

Large Image :  High Pressure API Drilling Fluid Screw Type Pump 60m3/H Flow Rate

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRG60A-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 15 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 100000 Sets Per Month
Detailed Product Description
Flow Rate: 60m³/h Pressure: 0.3Mpa
Power: 15kw Inlet: 5"
Outlet: 5" Ex Standard: ExdIIBt4
Weight: 649kg Dimension: 3322×550×740mm
High Light:

Drilling Fluid Screw Type Pump

,

60m3/H High Pressure Screw Type Pump

,

API High Pressure Screw Pump

High Quality Drilling Fluid Screw Pump / API Standard Screw Pump



Product Descrption



Single screw pump is used in all fields widely to feel kinds of medium, running at a constant pressure continuously, without pulse and damage when feeding medium, and change the gauging aim through adjusting rotation speed.



Its flow rate is proportional to the speed, widely used in food metallurgy, papermaking, printing and dyeing, chemical industry, chemical fertilizer, pharmaceutical and other industrial sectors, the transmission can be directly connected by coupling, or the use of high-speed motor, triangular belt, gearbox and other devices.G type screw pump parts less, compact structure, small volume,Simple maintenance, rotor and stator is the vulnerable parts of the pump, simple structure, easy to disassemble.



Properties
Rotor
From friction and erosion resist metal rotor to no damage pottery rotor
Stator
Stator material is formed in steel pipe, the two ends are sealed and the inner cavity is made of kinds of spring rubber materials and plastics. A horn structure is taken at the stator entrance for flowing the medium conveniently.


Driving System
Through a coupling mandril with universal joints at ends, driving shaft and extension shaft will pass power to rotor.
Large Flow And High Pressure
Flow range: 0.2m3/h-200m3/h
The highest pressure range reaches 18bar.
Pump Suction Chamber And Extraction Body
Exit and entrance are designed according to Germany DIN standard and international standard, in flange form or thread form which is easy for liquid flowing, and the inner cavity is made of cast iron, NiCr steel, stainless steel, rubber lining cast iron and other special materials.



Technical Data of Our Screw Pump



Model Flow Rate Pressure Power

Inlet

(Inch)

Outlet

(Inch)

Ex Standard

Weight

(Kg)

Dimension
TRG10A-040 10m³/h 0.3Mpa 4kw 3 3 ExdIIBt4/IECEX/A-TEX 245 2245×320×550mm
TRG20A-055 20m³/h 5.5kw 3 3 323 2450×340×562mm
TRG30A-075 30m³/h 7.5kw 4 4 386 2761×370×600mm
TRG40A-110 40m³/h 11kw 5 5 454 3270×370×665mm
TRG50A-110 50m³/h 11kw 5 5 608 3790×400×782mm
TRG60A-150 60m³/h 15kw 5 5 649 3322×550×740mm
TRG70A-220 70m³/h 22kw 6 6 875 3740×420×785mm
TRG80A-220 80m³/h 22kw 6 6 875 3740×420×785mm
TRG90A-220 90m³/h 22kw 6 6 875 3740×420×785mm



High Pressure API Drilling Fluid Screw Type Pump 60m3/H Flow Rate 0



Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
