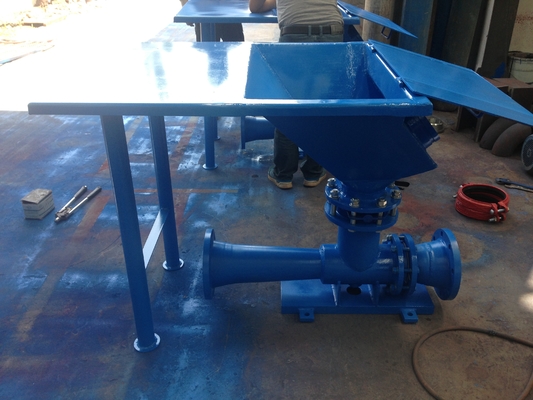

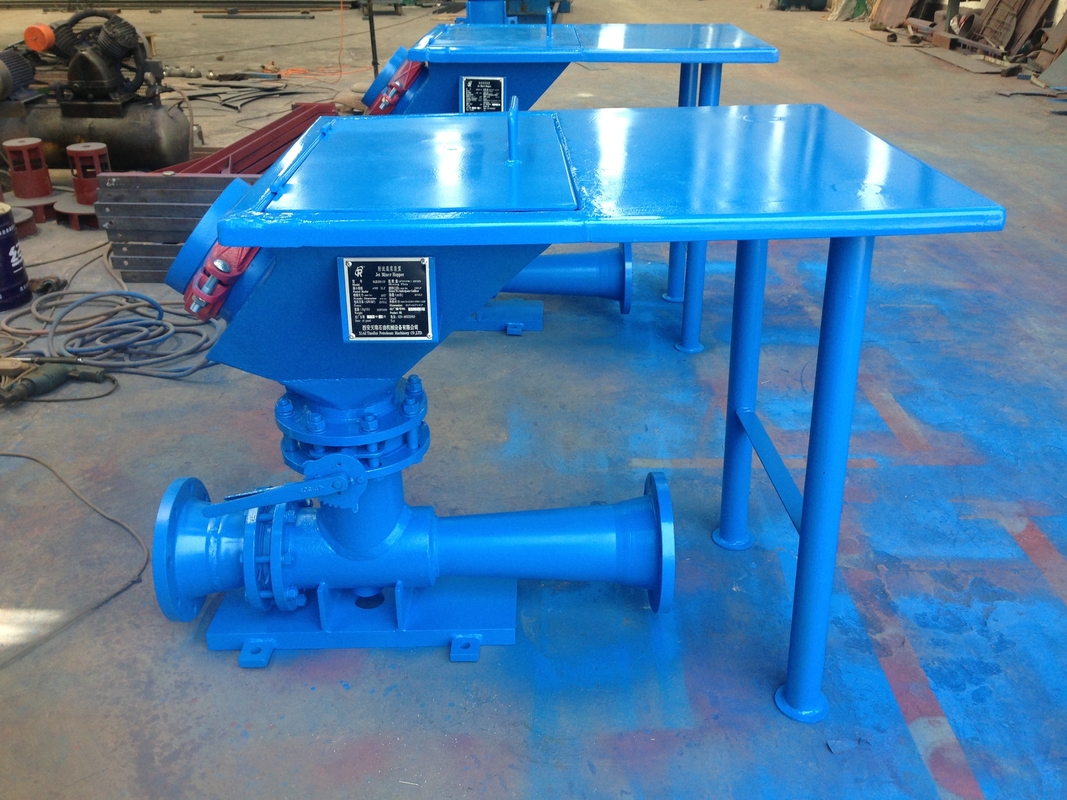

TRSLH150-30 Jet Mud Mixing Hopper 37kw 60kg/Min

TRSLH150-30 Jet Mud Mixing Hopper 37kw 60kg/Min
TRSLH150-30 Jet Mud Mixing Hopper 37kw 60kg/Min
video play

Large Image :  TRSLH150-30 Jet Mud Mixing Hopper 37kw 60kg/Min

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRSLH150-30
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Iron or wooden case
Delivery Time: 20 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 30 Sets Per Month
Detailed Product Description
Capacity: 120m3/h Matching Pump: TRSB5*4-14J
Motor Power: 37kw Work Pressure: 0.25 To 0.4Mpa
Inlet Diameter: 150mm Nozzle Diameter: 30mm
Hopper Dimension: 600*600mm Burden Speed: <60kg/min
Weight: 1300kg Dimension: 2000*1650*1100mm
High Light:

TRSLH150-30 Mud Mixing Hopper

,

60kg/Min Mud Mixing Equipment

,

Drilling Jet Mud Mixer

Mud Funnel with Aluminium Tube, Butterfly Valve and Nozzle Used in Jet Mud Mixer



Introduction



The mud hopper is a new type of jet ejector device designed by combining the venturi tube with the original jet nozzle and funnel. It is not only simple in structure, but also has strong feasibility. It is an important spare part of jet mud mixer. It’s the most commonly used dosing equipment in solid control system. In the emergency situation of blowout, we can use mud hopper to mix a large amount of weighting materials uniformly in the shortest time.



Jet Mud Mixer is the equipment to match with drilling solids control equipment, generally used for mixing and adjusting the proportion of drilling fluid, changing the density, viscosity and water loss etc. It has much excellent operation if being matched with shear pump, and also can be designed to single or double jet mud mixer as the clients’ requirements. TR jet mud mixer is composed of one set(or multi-set) centrifugal pump and one set(or multi-set) jet mixing hopper installed in a base with pipe valves. Its hopper and centrifugal pump either can be combined or be installed separately.



Application


TRSLH series jet mud mixer drilling jet mud mixer is widely used in these industries: Trenchless HDD & Tunnelling, Oil Sludge Dewatering Systems, Oil and Gas Drilling, Drilling Waste Management, Water Drilling, Coal Bed Gas Solids Control System, Oil Mud Seperation, Bored Piling.



Features of TRSLH Series Jet Mud Mixer


1. Single jet mud mixer consists of one centrifugal pump, one jet mixing hopper that are installed in a base with pipe valves. Duplex jet mud mixer is composed of two sand pumps and two jet mixing hoppers.
2. The jet mixing hopper and sand pump can either be combined or be installed separately, and they are connected by pipelines and valves. Seals adopt packing and mechanical double seal, with good sealing performance.
3. Jet mud mixer can change the density, viscosity and water loss effectively, and also improve the mixed liquid pressure head, enhance material dispersion effect, so that the material in the tank mixed fully.



Specifications of TRSLH Series Jet Mud Mixer



Model TRSLH150-50 TRSLH150-40 TRSLH150-30 TRSLH100
Matched Pump TRSB8×6-13J(55kw) TRSB6×5-13J(45kw) TRSB5×4-14J(37kw) TRSB4X3-11J(15kw)
Treating Capacity 240m3/h 180m3/h 120m3/h 60m3/h
Working Pressure 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa
Inlet Diameter 150mm 150mm 150mm 100mm
Nozzle Diameter 50mm 40mm 30mm 30mm
Hopper Size 750x750mm 750x750mm 600x600mm 600x600mm
Burden Speed ≤100kg/min ≤80kg/min ≤60kg/min ≤40kg/min
Weight 1600kg 1450kg 1300kg 1100kg
Dimension 2200*1700*1200mm 2200*1700*1200mm 2000*1650*1100mm 2000*1650*1100mm



TRSLH150-30 Jet Mud Mixing Hopper 37kw 60kg/Min 0



Competitive Advantages



1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
