18.5kw Motor Shearing Pump Blue Color 40m3/H Flow

China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
Professional solids control manufacturer. Their Product replacement shaker screens have long service time and good treatment. They help us a lot!

—— Mr. Samir

I purchased 10 pcs TRSB8*6-12J centrifugal pump from TR Solids Control. They are good-looking and really have good quality and considerate after sales service!

—— Mr. Warren

We ordered a set of mud system for our oilfield drilling field, TR product showed good performance in the site. We like that very much!

—— Diego Olbrich

TR shaker screens have top quality and good price. We have been purchasing them from TR for more than 4 years.

—— Nghiem Thic Hai

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Hossein Jafari

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Ms. Crina

We start use TRZS703 Shale Shaker since 2012, now we have 8 sets working in our customer's oilfield site, perfect machine with reasonable price.

—— S. A. Kazi

I'm Online Chat Now

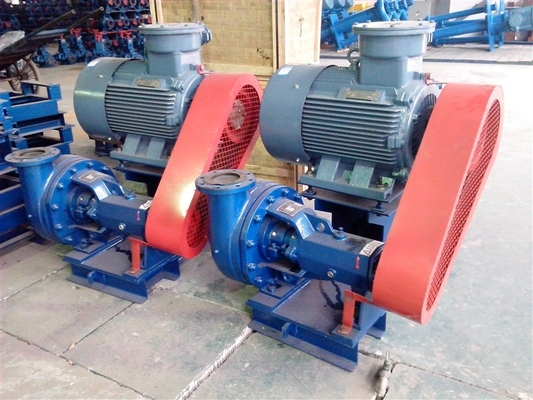

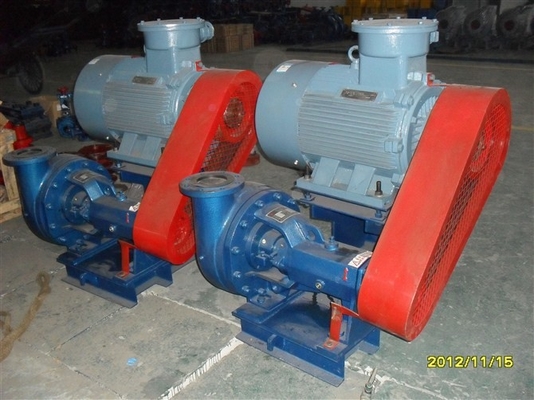

18.5kw Motor Shearing Pump Blue Color 40m3/H Flow

18.5kw Motor Shearing Pump Blue Color 40m3/H Flow
18.5kw Motor Shearing Pump Blue Color 40m3/H Flow
video play

Large Image :  18.5kw Motor Shearing Pump Blue Color 40m3/H Flow

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO9001 Certificate
Model Number: TRJQB4330
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 15 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 5000 Sets / Month
Detailed Product Description
Material: Steel Color: Green
Flow: 40m3/h Lift: 30m
Motor: 18.5kw Weight: 450kg
Dimension: 1050×1000×900mm Application: Oil & Gas Drilling, Trenchless HDD & Tunnelling
High Light:

18.5kw Motor Shearing Pump

,

40m3/H Flow Shear Pump

,

Shearing Drill Fluid Pump

18.5KW Trenchless Shield Drilling Mud Shear Pump ISO Certified , With Short Delivery

Product Introduction

TR Solids Control is a professional manufacturer engaged in shear pump with rich experience. Our shear pump can mix high property drilling mud very soon. Decrease the mixing time by much and enhance the drilling efficiency with great cost control, shear pump helps much on high quality drilling mud demand for well drilling.

TR shear pump adopts high quality mechanical seal with high durability. There won’t be any leakage. When drilling fluids flows pass shearing pump, there will be second cutting on the 50% fluid in the swirl collection room. Sometimes clients will require shearing mixing pump combined with shearing pump and mixing hopper.


Features of TRJBQ Series Shear Pump
  1. Using special impeller and shear board, shear efficiency> 95%.
  2. Bearings are internationally renowned brands SKF, quality assured.
  3. Oil seal adopts imported fluorine plastic seal, with good cooling capacity.
  4. Material of mechanical seal is carbide alloy, its life is 5 times than normal.
  5. Pump shell wall is thick, made by casting mold. Wear-resistant, fine appearance.
  6. Pump body adopts wear-resistant alloy cast iron with long service life.

Main Parameters of Our Shear Pump



Model Flow Rate Lift Motor Weight Dimension
TRJQB6545 150m3/h 45m 55kw 980kg 1050×1000×1360mm
TRJBQ6535 100m3/h 35m 37kw 800kg 1050×1000×1230mm
TRJBQ5430 60m3/h 30m 30kw 650kg 1050×1000×1100mm
TRJBQ4330 40m3/h 30m 18.5kw 450kg 1050×1000×900mm


18.5kw Motor Shearing Pump Blue Color 40m3/H Flow 0


Our shear pump is used to handle the high property mud, making the mud to obtain good rheological properties and to cut the drilling cost as much as possible. Currently it is widely used in tunnelling construction, oil & gas drilling, city bored piling, trenchless HDD, Water Drilling, Coal Bed Gas Solids Control System, Drilling Waste Management, Oil Mud Seperation, Oil Sludge Dewatering Systems etc.



Shear pump can make polymer shear dilute and hydrate The polymer used in mud has a high molecular weight and is difficult to be hydrated directly. Therefore, the polymer needs to be pre sheared. Shear pump can provide high shear efficiency and accelerate the process of polymer dilution and hydration.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
