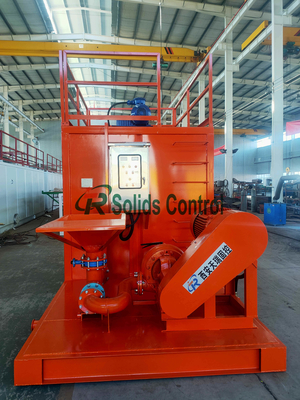

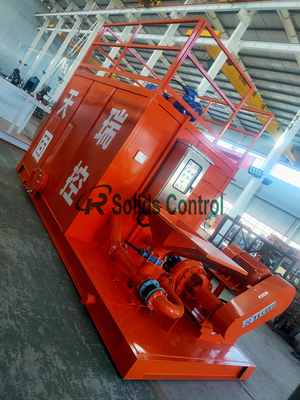

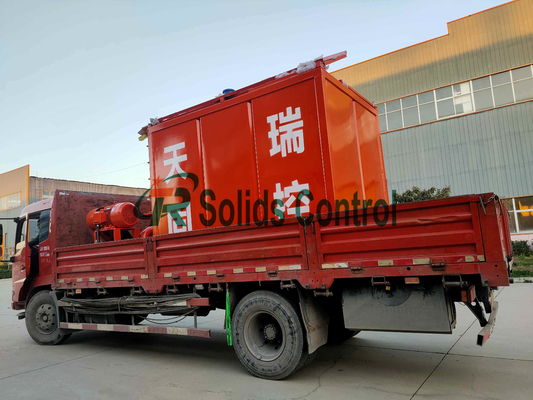

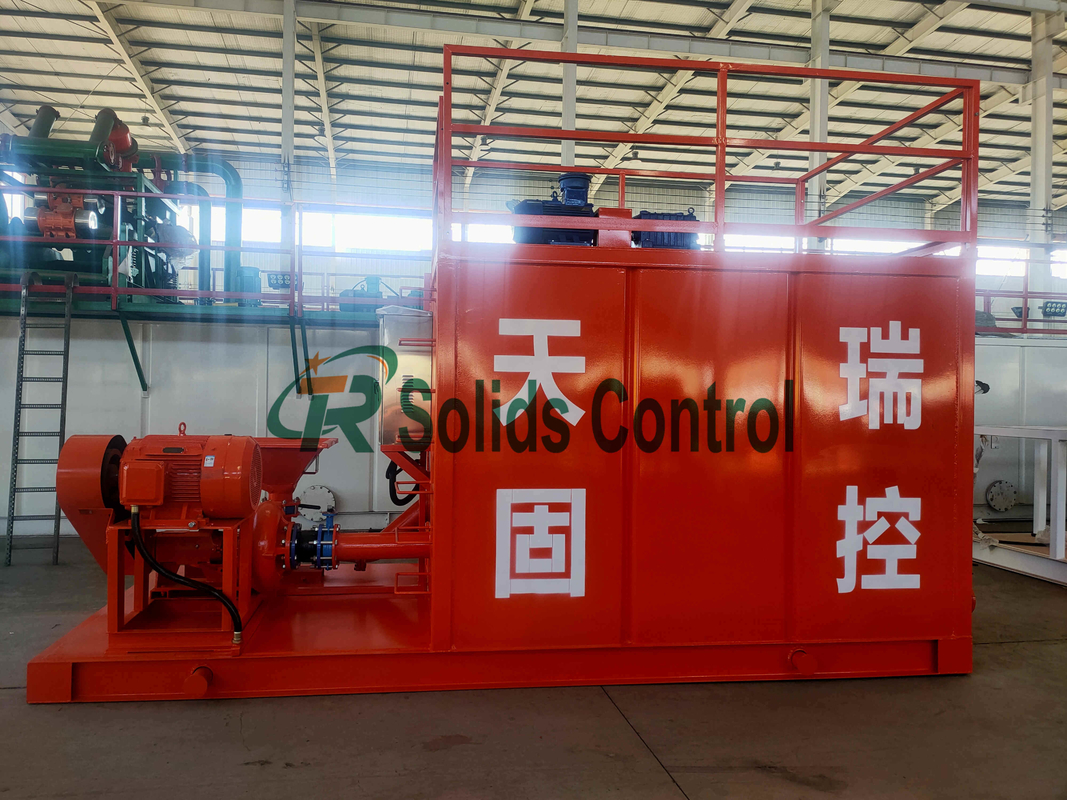

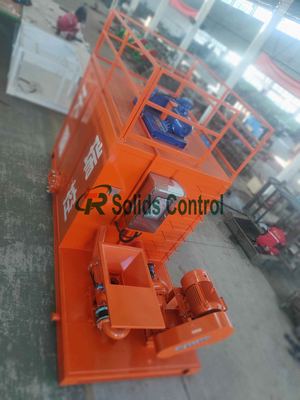

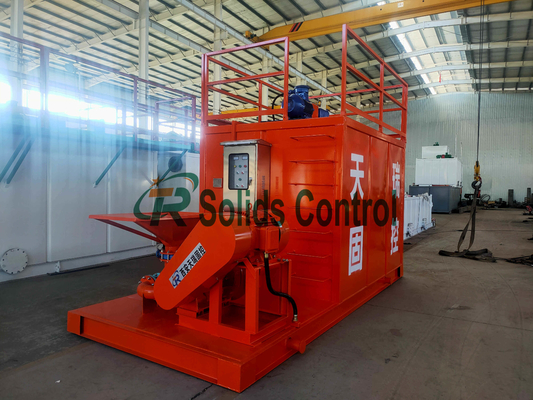

10CBM Mud Mixing Tank System Agitator Preparation Tank

10CBM Mud Mixing Tank System Agitator Preparation Tank
10CBM Mud Mixing Tank System Agitator Preparation Tank
video play

Large Image :  10CBM Mud Mixing Tank System Agitator Preparation Tank

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certified
Model Number: TRHDD-500
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: By Container
Delivery Time: 25 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 100 Set / Month
Detailed Product Description
Capacity: 500GPM Shale Shaker: TRZS703/TRZS585
Mud Cleaner: TRQJ250*1S-100*8N Desilter Cyclone: 4"*8pcs
Supply Pump Model: TRSB6*5-11J*2pcs Slurry Pump Model: TRSB6*5-12J
Jet Mud Mixer: TRSLH150-35(37kw) Mud Agitator: TRJBQ7.5
Weight: 17000kg Dimension: 10000*2360*4228mm
High Light:

Mud Mixing Preparation Tank


10CBM Mud Mixing Tank


Drilling Mud Agitator Tank

Solids Control Mud Mixing System HDD 120M3/H


System Introduction


Horizontal directional drilling short name is HDD. This technology has wide application in oil and gas pipelines crossing the rivers, lakes, highway, railway hub and other obstacles and important area. HDD site is all in large no-excavation area and do not allow to make mud discharge randomly, so it is very important to equip with mud recovery system. TR Solids Control is a professional manufacture in designing and customizing HDD mud recovery system.


TR Solids Control is a professional manufacturer of solid control system/equipment in china. we will provide our client high quality products with most reasonable price, at the same time we also sincerely offer the high level after sales service for any home or abroad clients. We still adhere to the concept of Creating the maximum values and the satisfaction for our clients.


Main Characterstics of TR HDD Mud System:


1. Mud recovery system is designed based on both over 10 years of technical experience in solids control industry and in-depth market research, with benefits as reasonable structure, favorable treatment process and a wide range of application fields.
2. Multifunctional and integrated design to meet mud purification, recycling, preparation and storage, greatly reducing overall dimensions of the tank system, meeting HDD requirements on site and space.
3. Explosion-proof, rainproof and dustproof electric system to ensure construction safety and quality.
4. With simple and compact structure, light weight, foldable or dismountable walkway and guardrail, being easy for transportation and installation.
5. Manufacturing base and outstanding research & development and management team. TR has obtained API and ISO certifications, CE certification, Certification for export to Russia, ISO14001 and ISO18001 of Environmental Safety System, and can meet export standards of all countries around the world.


Technical Parameters of TR HDD Mud Mixing System


Model TRHDD-200 Model TRHDD-500 TRHDD-1000
Capacity 200GPM (50m3 /h) Capacity 500GPM (120m3 /h) 1000GPM (240m3 /h)
Shale Shaker TRZS752S Shale Shaker TRZS703/TRZS585 TRZS703/TRZS585

Upper Screen Area


Screen Area

2.7m2 2X2.7m2

Upper Screen Area


Mud Cleaner

TRQJ250X1S-100X8N TRQJ250X2S-100X12N



Mud Cleaner

Mud Cleaner

10"×1pcs 10"×2pc

Hydroclycolone Qty

4 pcs

Desilter Cyclone

4"×8pcs 4"×12pcs

Supply Pump Model


Bottom Screen Area

1.35m2 2.12m2
Slurry Pump Model TRSB4X3-11J Supply Pump TRSB6X5-11J*2 TRSB8X6-11J*2
Mud Hopper TRSLH100 Slurry Pump TRSB6X5-12J TRSB8X6-12J
Gross Power 44kW Jet Mud Mixer TRSLH150-35(37KW) TRSLH150-35(45KW)
Total Volume 5m3 Mud Agitator TRJBQ7.5 TRJBQ7.5
Dimension 4000×2360×2940mm Gross Power 130kW 184kW
Weight 5500kg Total Volume 15m3 30m3
    Dimension 10000×2360×4228mm 12100×2630×4438mm
    Weight 17000kg 20000kg

10CBM Mud Mixing Tank System Agitator Preparation Tank 0


Our Service

1. We possess a 24 hr response system to provide convenient, fast, and effective pre-sale, during sale and after-sale service.
2. Our promise: Any equipment sold by our company at any place in the world, we will provide after-sale service promptly and efficiently. Any equipment component damaged by manufacturing defect or quality problem during the warranty period, TR will bear the direct cost of the damaged parts.
3. Warranty period: 18 months from the day that the unit leaves factory or 12 months from the date that the unit is put into use (choose the earliest one which comes to an end as the calculation standard).


Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
