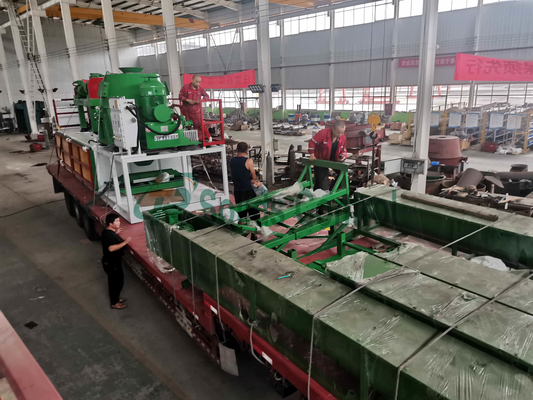

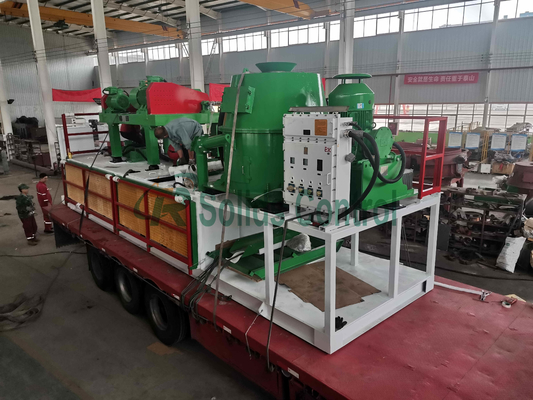

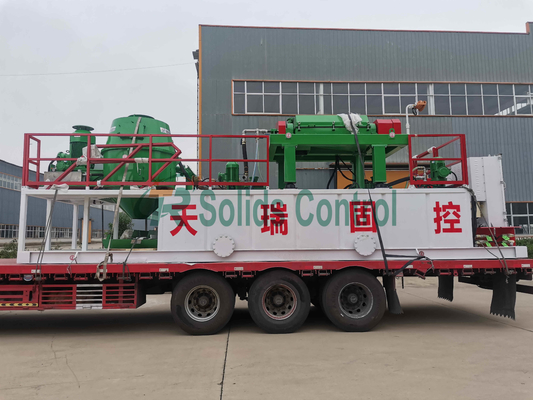

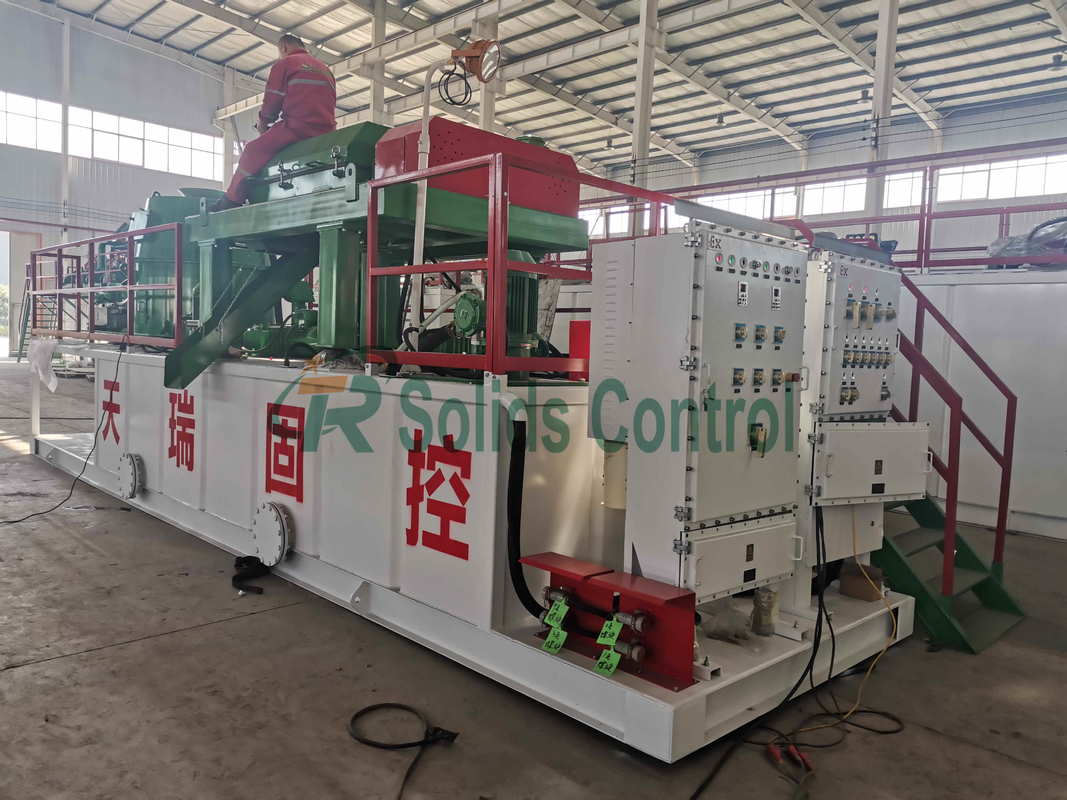

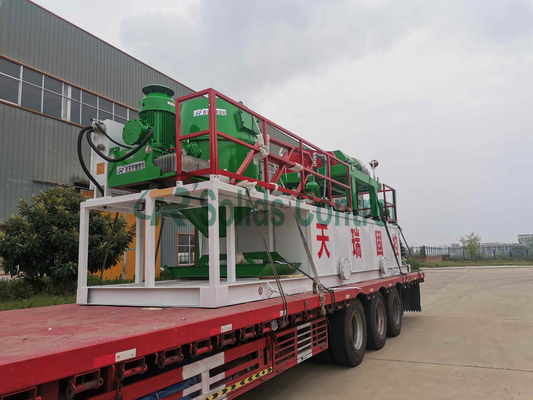

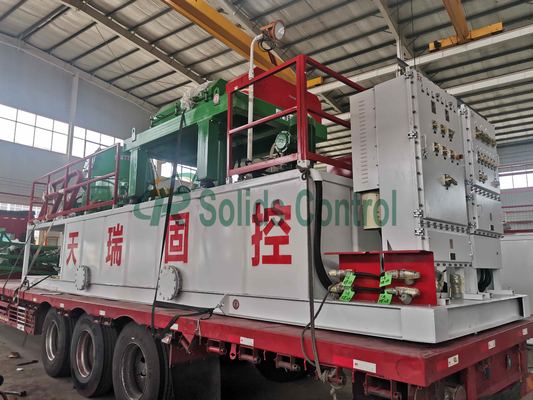

Oil Based Mud Waste Management Systems Drilling Mud Non Landing System

Oil Based Mud Waste Management Systems Drilling Mud Non Landing System
Oil Based Mud Waste Management Systems Drilling Mud Non Landing System
video play

Large Image :  Oil Based Mud Waste Management Systems Drilling Mud Non Landing System

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API & ISO Certified
Model Number: TRDWM-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case or by container
Delivery Time: 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 100 Set / Month
Detailed Product Description
Drying Shaker: TRZS585G*1pc Centrifuge Pump: 80YZ50-20B81pc
Decanter Centrifuge: TRLW355N-1*1pc Vertical Cutting Dryer: TRCD930C*1pc
Material: Carbon Steel / 304 Stainless Steel Package: Wooden Case
Function: Dewater Warranty: 18 Months
High Light:

Drilling Mud Non Landing System

,

Mud Drilling Waste Management System

,

API Oil Based Drilling Mud System

OBM Drilling Waste Management with Centrifuge and Dryer



Product Descrption



Drilling waste management systems are packages of different function for drilling waste management. Usually include high G drying shaker, auger feeder or screw conveyor, skid mounted cuttings dryer, and decanter centrifuge with telescopic skid, drilling cuttings tank or mud skips.



Mud not landing system is the common name of drilling waste treatment, also known as drilling fluid does not land, refers to the use of mud not landing equipment to screen the waste in drilling fluid. The equipment for mud not falling to the ground generally includes drying shaker, drilling cuttings dryer and high-speed mud centrifuge.


TR Solid Control has always adhered to the enterprise concept of "customer satisfaction is the highest pursuit of TianRui solid control", and constantly develops new mud purification equipment. We thank our customers for their trust in us, and we will continue to work hard to make greater contributions to drilling mud purification and national environmental protectio



Main Features of TR Drilling Waste Management



  • Good Result of Water-based Mud: 6%-10% Water Content.
  • Italy Technology: Overwhelmingly overcomes the difficulty in disposing the waste all or disposing them effectively, which combines the technology brought from Italy with advantages of the same products abroad.
  • Stable Performance: Our Drilling Waste Management is to control the volume of water containing in the drilling mud and stabilize the liquid performance, which achieves the purpose of managing the drilling waste and recycle the drilling mud without damaging the water performance.
  • Environmental and Economical:This cutting dryer system realizes the social value of environmental protection, maximizing the usage of drilling fluid economically.



Main Cofiguation of TR Drilling Waste Management



S/N S/N Description
1 Vertical Cuttings Dryer TRCD930 with option for VFD or fixed speed
2 Decanter Centrifuge TRGLW355Centrifuge 14inch bowl,Optional model as below:
TRGLW355 Centrifuge with VFD drive.
TRGLW355 standard with fixed speed
3 Screw Pump Two sets TRG30A-075 Screw Pump with capacity:30m³/h for each pump.
One for taking fluids from catching tank to feed the decanter centrifuge,the other for flushing the Vertical dryer.
4 Skid with catching tank Fast move skid for mounting all the equipment
One Catching tank with capacity:4m³ for catching fluid from vertical cuttings dryer.
5 Telescopic Skid Two telescopic skid with walkways and handrails for safe operation.
One for mounting the decanter centrifuge to a higher position in order to allow the centrifuge discharged fluids feed to active mud system by gravity.
The other telescopic skid for mounting and adjusting the height of the vertical cutting dryer to allow the discharge of drying cuttings
6 Electric Cradle 0.5 Tons electric cradle for lifting the components of vertical dryer
7 Electric Control System Two lighting system,electrical control boxes and cables and plugs for operation the complete system.



Oil Based Mud Waste Management Systems Drilling Mud Non Landing System 0



We exported directly or sold with supporting drillers to more than 30 countries and regions in the world such as Russia, United States, Australia, Latin America and the Middle East etc. Making sure to support first-class solid-control equipment with developing “Made in China” as our own tasks, holding forward-looking to each task, every drawing has technicity to direct, every process has worker to follow up and every product has QC to check on. To provide customers with a full set of solid-control equipment solutions effectively is our company’s goal.


Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
