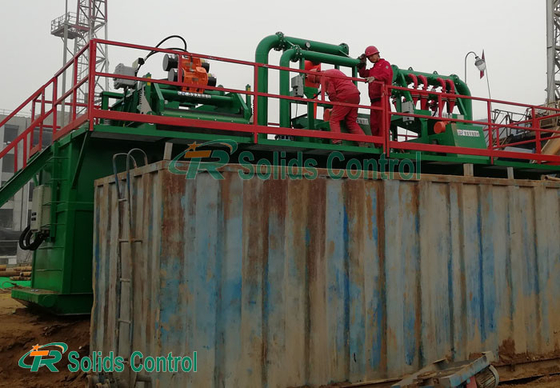

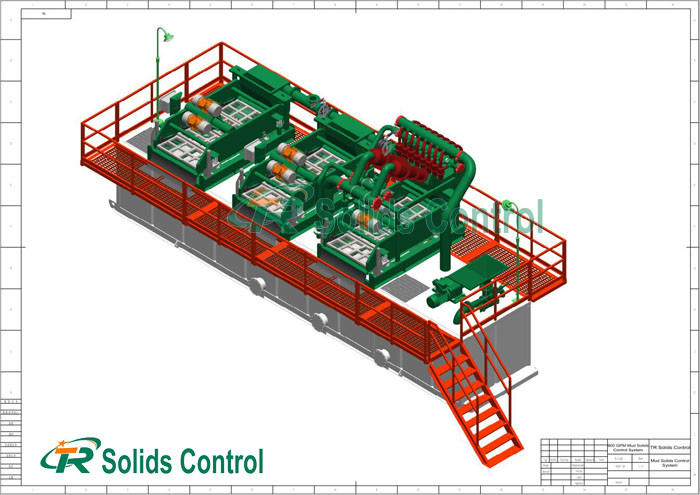

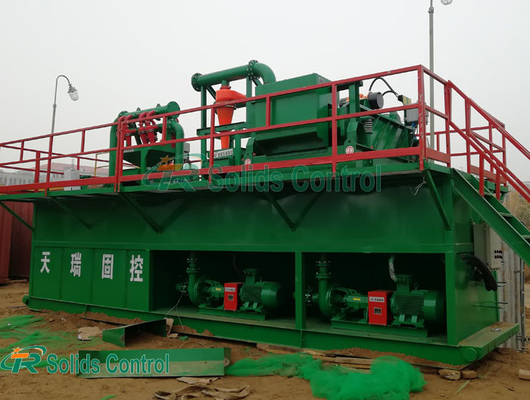

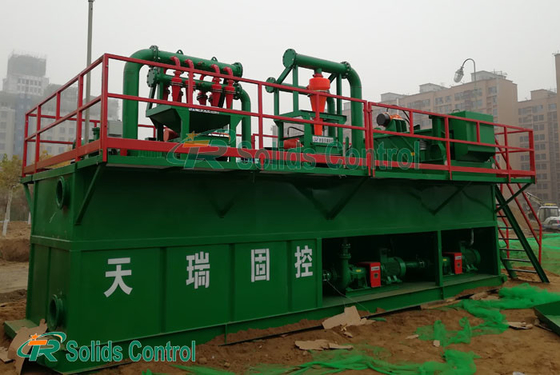

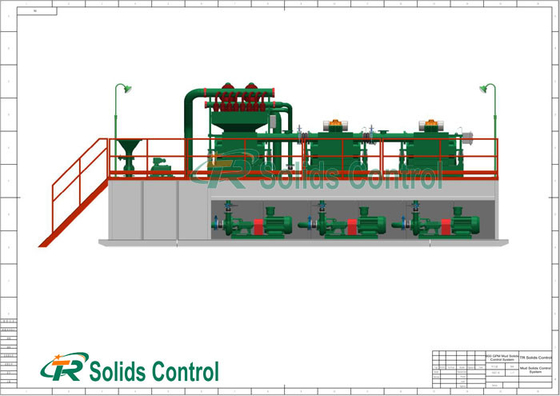

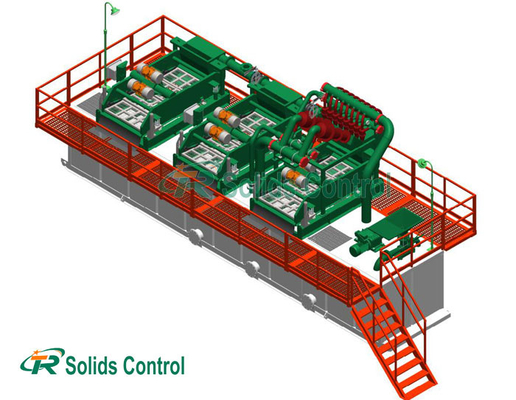

Oilfield Drilling Solid Control System Mud Recycling System 500gpm

Solids Control System is also called drilling fluid purification system, mainly used for solids control and solid-liquid separation to achieve drilling fluid recycling on the premise of guaranteeing stable drilling fluid performance. The system is composed of 3-7 mud tanks with five-stage solids control, dosing and weighting equipment, which is applicable to drilling projects of 500-9000m and can meet the supporting requirements of 250-3000HP drilling rigs. KOSUN Environmental solids control system conventionally falls into skid-mounted and mobile types, and can be divided into cryophylactic (polar) and desert types according to different requirements on ambient temperatures, to meet different working conditions and customer requirements.
Features:
1. With modular design and small footprint, it can be flexibly configured and installed according to the customer’s requirements.
2. The side plates of mud tanks are designed with corrugated and load-supporting type, which are safer and can bear more load.
3. The system adopts a centralized electric control, being convenient for operation.
4. All equipment is designed with corrosion and wear resistance, with a long service life.
5. It is is adaptable to severe drilling operating conditions, being cold-resistant, heat-resistant, explosion-proof, leakage-proof, corrosion resistant and rainproof.
6. It is simple for installation and disassembly, and convenient for frequent moving along with drilling crew.

Solids control system may contain shale shaker, vacuum degasser, desander, desilter, mud cleaner,decanter centrifuge, pump, mud agitator, mud gun, mud mixer, poor boy degasser, mud tank, etc. The systems will suit rig max drilling depth from 2000m to 9000m, as well as the offshore rig or jack-up platform drilling We promise clients optimal solution with cost-efficient budget. Boban manufactures complete equipment for Oil & Gas drilling rig for: 250HP, 350HP, 450HP, 550HP, 650HP, 750HP, 1000HP, 1500HP, 2000HP, 3000HP.
Components of Solids Control System
A complete solids control system including mud mixing and store units (mud tank, agitator, mud gun), solids removal units (shale shaker, hydrocyclone removal equipment, centrifuge), auiliary devices and lines.
mank tank are classified to trip tank, circulation tanks, weighting tanks,mixing tanks,stroage tanks, and etc. according to different usage.
Solids removal equipment including five stage purification equipment: shale shaker, vacuum degasser, desander, desilter decanter centrifuge. mud degasser and mud desilter can be combined with shaker as mud cleaner.
Auxiliary equipment mainly mean centrifugal pumps and other accessories parts like electrial pannal and so on. According function, centrifugal pump can be used as desander pump, desilter pump, mixing pump,trip pump, and metering pump.

Mud Circulation System Technical Parameters
