| Capacity:: | 400gpm | Dimension:: | 10000*2360*4228mm |
|---|---|---|---|
| High Light:: | Recovery Circulation Mud Tank System, 500GPM HDD Drilling Mud System, Carbon Steel Mud Recycling System | Video Outgoing-inspection:: | Provided |
| Product Name:: | HDD Drilling Mud Circulation System For Factory Price | Certification:: | API, ISO, CE |
| Color:: | Green | ||
| High Light: | HDD Drilling Mud Cleaning System,Drilling Mud Cleaning Equipment,400 Gpm Mud Recycling System |
||

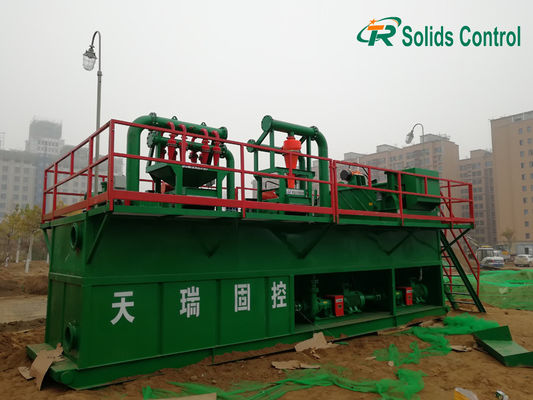

Features of HDD Mud Recycling System:
1.Mud recycling and mud mixing included in high standard model, the combination including complete line of mud recycling and mud mixing with suitable mud storage.
2.Compact design with minimum foot print. All equipments on tank top will sit on tank while local transport moving to allow fast moving and installation from jobsite to jobsite. Handrail and walkway can be folded on tank top or tank side with quick lock.

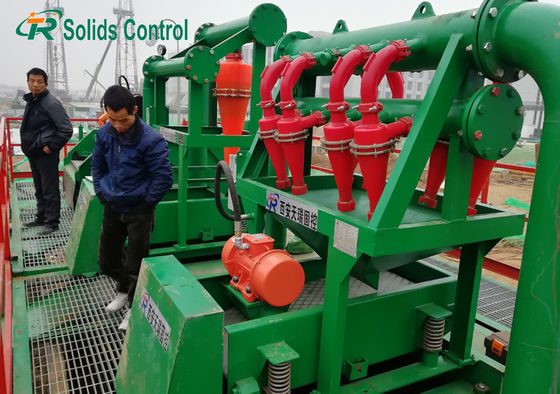

3.Composite material screen install on shale shaker to help for a better performance and longer screen working life. Our shaker screen build as per API RP 13C regulation to meet worldwide client's requirement.
4. Mud tank each corner weld container standard lifting lug for lifting tank and lock tank on trailer.
5. Self clean mud tank or V type mud tank for easy cleaning, each mud tank compartment install clean gate with butterfly valve. Mud tank size and pipeline arrangement can be customized depending on jobsite requirement.
Technical Specifications of TR HDD Mud Cleaning System
| Model | TRHDD-200 | Model | TRHDD-500 | TRHDD-1000 |
| Capacity | 200GPM (50m3 /h) | Capacity | 500GPM (120m3 /h) | 1000GPM (240m3 /h) |
| Shale Shaker | TRZS752S | Shale Shaker | TRZS703/TRZS585 | TRZS703/TRZS585 |
| Upper Screen Area | 0.875m2 | Screen Area | 2.7m2 | 2X2.7m2 |
| Upper Screen Area | 1.35m2 | Mud Cleaner | TRQJ250X1S-100X8N | TRQJ250X2S-100X12N |
| Hydrocyclone | 4" |
Mud Cleaner Mud Cleaner |
10"*1pcs | 10"*2pc |
| Hydroclycolone Qty | 4 pcs | Desilter Cyclone | 4"*8pcs | 4"*12pcs |
| Supply Pump Model | TRSB4X3-12J | Bottom Screen Area | 1.35m2 | 2.12m2 |
| Slurry Pump Model | TRSB4X3-11J | Supply Pump | TRSB6X5-11J*2 | TRSB8X6-11J*2 |
| Mud Hopper | TRSLH100 | Slurry Pump | TRSB6X5-12J | TRSB8X6-12J |
| Gross Power | 44kW | Jet Mud Mixer | TRSLH150-35(37KW) | TRSLH150-35(45KW) |
| Total Volume | 5m3 | Mud Agitator | TRJBQ7.5 | TRJBQ7.5 |
| Dimension | 4000*2360*2940mm | Gross Power | 130kW | 184kW |
| Weight | 5500kg | Total Volume | 15m3 | 30m3 |
| Dimension | 10000*2360*4228mm | 12100*2630*4438mm | ||
| Weight | 17000kg | 20000kg |
We are an exporter of HDD mud recycling system.Our factory approval the API,Solids Control Equipment have the API certification.TR solids control is the designed,selling,production,service and delivery of Chinese mud solids control system manufacturer. We will provide the high quality drilling solids control equipment and best service.Your best hdd mud recycling system start from TR solids control.
