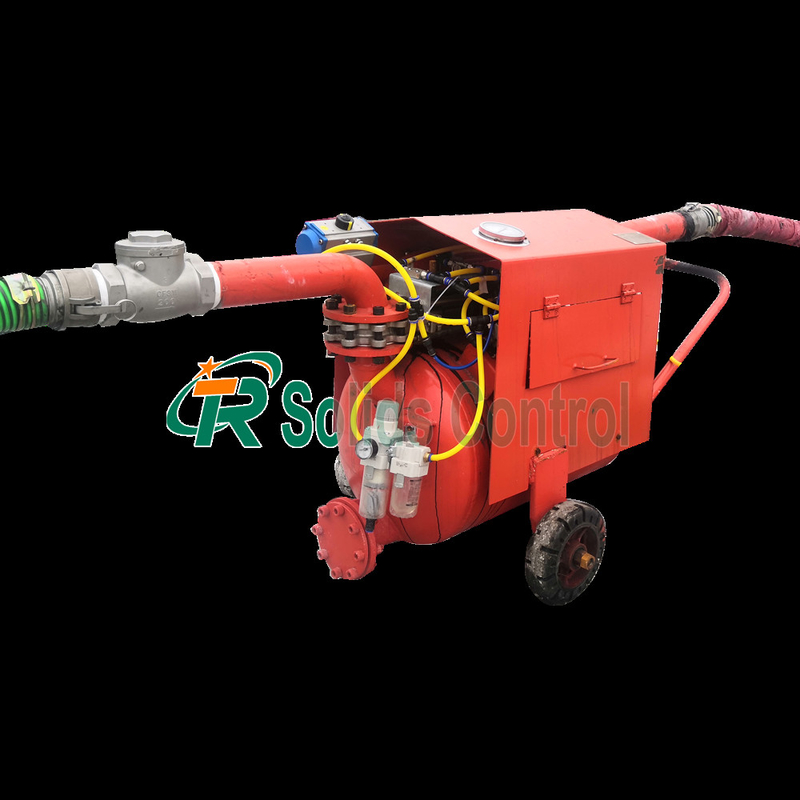

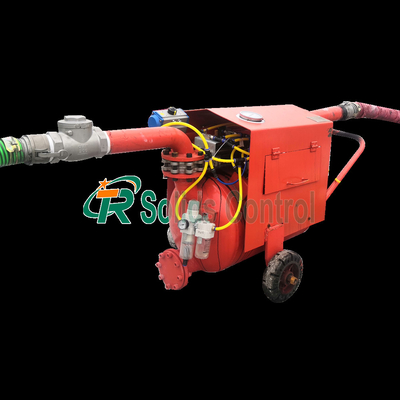

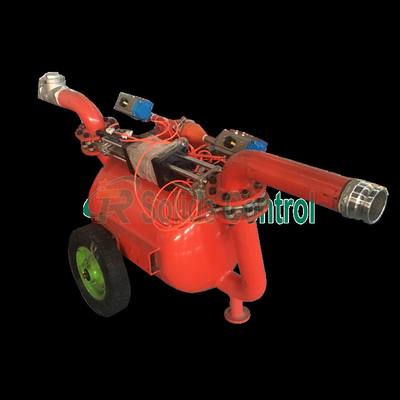

4" DN100 Solid Transfer Pump / Drilling Cuttings Transfer Pump

Solid Transfer Pump/Drilling Cuttings Transfer Pump
Product introduction:
Pneumatic vacuum transfer pump is a kind of pneumatic vacuum transfer pump with high load and strong suction, also known as solid transfer pump or drilling cuttings transfer pump. Capable of pumping solids, powders, liquids, and solid-liquid mixtures. The depth of pumping water is 8 meters, and the lift of discharged water is 80 meters. Its unique structural design enables it to operate in the most difficult environment with low maintenance rate. It can transport materials with more than 80% solid phase and high specific gravity at high speed. It has the following characteristics: the high-efficiency venturi device can generate up to 25 inches Hg (mercury) vacuum under strong air flow to suck materials, and then transport them through positive pressure, with almost no wear parts. It is commonly used for transportation of drilling cuttings, oily sludge, tank cleaning, long-distance transportation of waste suction, and transportation of minerals and wastes. The vacuum pump is a 100% aerodynamic and intrinsically safe pneumatic transportation solution, capable of conveying solids with a maximum inlet diameter of 80%. The unique patented venturi design creates a strong vacuum and high airflow, which can recover up to 25 meters (82 feet) of material and discharge up to 1000 meters (3280 feet). Because there is no internal working principle and no rotating vulnerable parts, it provides a very cost-effective solution for controlling the recovery and transfer of materials that are considered non pumpable.



Technical parameters:

Technical features:
*The pump can be operated by one person on duty;
*Super vacuum can absorb materials at 50m;
*All flow-through parts of the pump body are almost free of wear;
*Super large suction can absorb materials with a diameter of more than 7cm;
*Compressed air can be supplied centrally and transported remotely;
*Ultra long distance transportation, which can realize ultra long distance of over 1000m;
*The pump can operate indefinitely for a long time without limit;
*High applicability to materials: powder, thinner, viscous material, sewage, oil stain, etc;
*Full pneumatic control has the ability of fire prevention, explosion-proof and moisture-proof, and can be used in high-temperature occasions;
*The pump is controlled by manual, automatic and remote control to meet more use scenarios;
*Pneumatic control has high reliability and long service life. The effective action times of electrical components are about one million times, and the *Service life of solenoid valves is more than 200 million times;

Applicable material category:
*Drilling waste mud and drilling cuttings discharged from vibrating screen;
*Jam, peanut butter, tomato sauce, pickled vegetables;
*Metal mine, coal mine slurry and tail slurry;
*Material transportation of bulk tanks and silos;
*Chemical and pharmaceutical particle powder transportation;
*HDD / TBM urban construction sludge;
*Desilting of sedimentation tank and soaking tank;
*Recycling of toxic and hazardous wastes;
*Tank sludge and bottom slag removal;
*Sand, fine sand and fracturing sand;
*Large scale dredging of municipal pipelines;
*Bilge cleaning of transport ship;
*Livestock and poultry feces;
