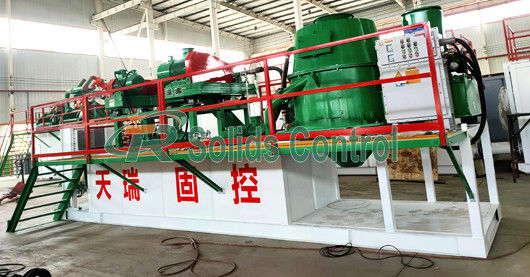

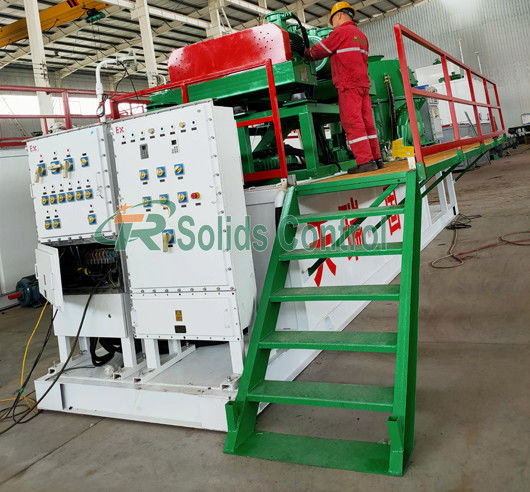

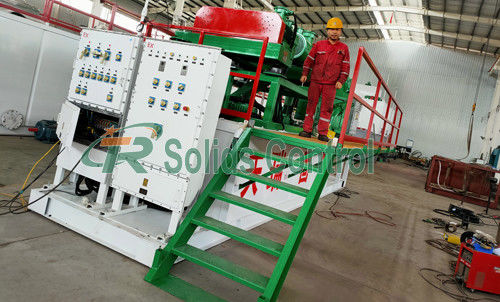

Environmental Friendly WBM Drilling Mud System With Telescopic Skid

Environmental Friendly WBM Drilling Mud System With Telescopic Skid
Environmental Friendly WBM Drilling Mud System With Telescopic Skid
video play

Large Image :  Environmental Friendly WBM Drilling Mud System With Telescopic Skid

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certified
Model Number: TRDWM-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case or by container
Delivery Time: 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 150 Sets / Month
Detailed Product Description
Drying Shaker: TRZS585*1pc Vertical Cutting Dryer: TRCD930C*1pc
High Speed Centrifuge: TRLW355N-1*1pc Sand Pump: TRSB4*3-11J*2pcs
Centrifuge Slurry Pump: 80YZ50-20B81pc Shale Shaker Tank: 3000*2150*1300mm
Decanter Centrifuge Tank: 9000*2200*1300mm Advantage: Environmental Friendly
High Light:

WBM Drilling Mud System

,

Telescopic Skid Solids Control Equipment

,

VFD Drive Solids Control Equipment

Environmental Friendly WBM Drilling Waste Management



System Introduction



Mud not landing system is the common name of drilling waste treatment, also known as drilling fluid does not land, refers to the use of mud not landing equipment to screen the waste in drilling fluid. The equipment for mud not falling to the ground generally includes drying shaker, drilling cuttings dryer and high-speed mud centrifuge.



Drilling waste management systems are packages of different function for drilling waste management. Usually include high G drying shaker, auger feeder or screw conveyor, skid mounted cuttings dryer, and decanter centrifuge with telescopic skid, drilling cuttings tank or mud skips.



We are not a one size fits all treatment provider. To deliver totally customized waste management solutions, we leverage a broad portfolio of modular to deploy unique configurations tailored to your operating needs. From shakers to cuttings dryer, conveyance systems to thermal processing units, we have the right products to tackle any challenge, and the expertly trained personnel to implement the ideal solution.



Characterstics of Drilling Waste Management Scheme

  1. Recycling drilling fluids for reuse to save cost.
  2. Reduce the drilling waste quantity to save money on the disposal or further treatment.
  3. For water based drilling cuttings, normally it can reduce the moisture content for easy transportation.
  4. For oil based drilling cuttings, normally it can reduce the oil on the cuttings to 3% to 5%.

Main Configuration of TR Drilling Waste Management



S/N S/N Description
1 Vertical Cuttings Dryer TRCD930 with option for VFD or fixed speed
2 Decanter Centrifuge TRGLW355Centrifuge 14inch bowl,Optional model as below:
TRGLW355 Centrifuge with VFD drive.
TRGLW355 standard with fixed speed
3 Screw Pump Two sets TRG30A-075 Screw Pump with capacity:30m³/h for each pump.
One for taking fluids from catching tank to feed the decanter centrifuge,the other for flushing the Vertical dryer.
4 Skid with catching tank Fast move skid for mounting all the equipment
One Catching tank with capacity:4m³ for catching fluid from vertical cuttings dryer.
5 Telescopic Skid Two telescopic skid with walkways and handrails for safe operation.
One for mounting the decanter centrifuge to a higher position in order to allow the centrifuge discharged fluids feed to active mud system by gravity.
The other telescopic skid for mounting and adjusting the height of the vertical cutting dryer to allow the discharge of drying cuttings
6 Electric Cradle 0.5 Tons electric cradle for lifting the components of vertical dryer
7 Electric Control System Two lighting system,electrical control boxes and cables and plugs for operation the complete system.



Environmental Friendly WBM Drilling Mud System With Telescopic Skid 0


TianRui Solid Control has always adhered to the enterprise concept of "customer satisfaction is the highest pursuit of TianRui solid control", and constantly develops new mud purification equipment. We thank our customers for their trust in us, and we will continue to work hard to make greater contributions to drilling mud purification and national environmental protection.

We are a professional manufacturer and designer of drilling waste management and solids control equipment in China. We provide one-stop service for your oil and gas drilling requirements. If you have any inquiry about mud system or solid control equipment like shale shaker, shaker screen, desilter, desander, mud agitator, mud cleaner, jet mud mixer, centrifugal pump, decanter centrifuge, shear pump etc, welcome to contact us freely.


Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
