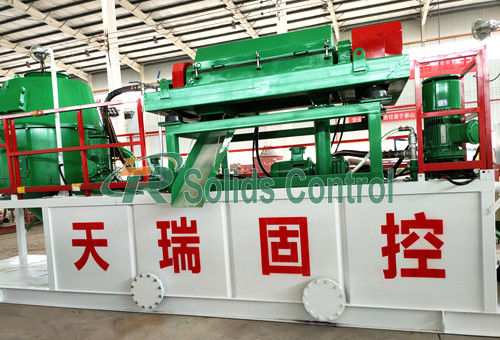

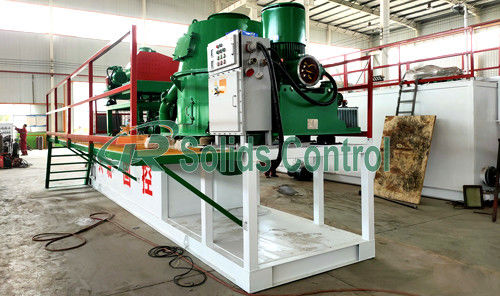

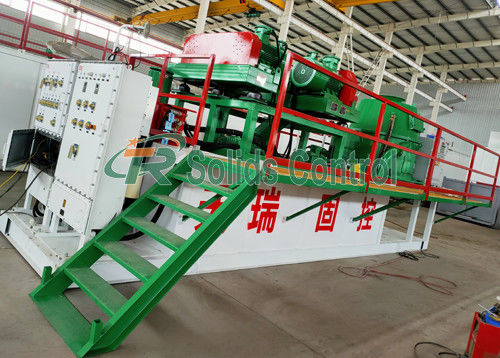

Skid Mounted Pitless Mud Treatment System With VFD Drive

Skid Mounted Pitless Mud Treatment System With VFD Drive
Skid Mounted Pitless Mud Treatment System With VFD Drive
video play

Large Image :  Skid Mounted Pitless Mud Treatment System With VFD Drive

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API & ISO Certified
Model Number: TRDWM-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case or by container
Delivery Time: 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 100 Sets / Month
Detailed Product Description
Drying Shaker: TRZS585G*1pc Centrifuge Pump: 80YZ50-20B81pc
Decanter Centrifuge: TRLW355N-1*1pc Vertical Cutting Dryer: TRCD930C*1pc
Material: Carbon Steel / 304 Stainless Steel Package: Wooden Case
Sand Pump: TRSB4*3-11J*2pcs Color: Green, Orange, Blue
High Light:

Pitless Mud Treatment System

,

VFD Drive Mud Treatment System

,

API Drilling Mud Treatment System

Skid-Mounted Pitless System Drilling Waste Management



Product Introduction



In the traditional oil and gas drilling site, there will be a simple mud pit of about 1,000 cubic meters, with floor space of 1.2 acres to 1.5 acres. The pit is used to contain drilling cuttings and waste mud. In the process of exploration and development, it needs to add a variety of chemical agents in order to maintain excellent performance of mud. In this case, the mud pit left in the drilling site becomes a "culprit" easy to pollute the environment. After wells completed, mud pits are buried in situ. In China, oilfield enterprises have more than 3,000 sets of drilling rigs, there will be about 10,000 wells drilled each year. If we calculate floor space of 1,2 acres per each well, then 12,000 acres land is required. That is, at least more than 10,000 pollution points will be produced, so pollution is very serious. In order to implement and follow environment requirements, TR Solids Control developed a set of drilling waste management independently. This system makes the mud pit disappear completely, and can realize harmless treatment during drilling. TR team has made our own contribution to environmental protection.



The oil-based mud not landing system customized by a domestic customer helps the environmental protection of oil drilling mud not landing again. With the continuous improvement of domestic environmental protection requirements in China, in order to respond to and adapt to the national environmental protection requirements, the oil drilling site also requires mud not to land.



Solutions of TR Drilling Waste Management



Solution 1
The system mainly consists of shale shaker, decanter centrifuge and tanks, used for the water-base drilling mud and drilling waste treatment. The drilling mud after treatment can be reused, but the moisture content of treated solid phase is relatively high.



Solution 2
The system mainly consists of vertical cutting dryer, decanter centrifuge and tanks, used for the water-base / oil-base drilling mud and drilling waste treatment. The moisture content and oil content of treated solid phase is lower.



Solution 3
The system mainly consists of filter press, chemical-adding unit and tanks, used for the water-base drilling mud and drilling waste treatment. The moisture content of treated solid phase is lower, but the working process is relatively complex and the equipment floor area is big.



Configuration of TR Drilling Waste Management



S/N S/N Description
1 Vertical Cuttings Dryer TRCD930 with option for VFD or fixed speed
2 Decanter Centrifuge TRGLW355Centrifuge 14inch bowl,Optional model as below:
TRGLW355 Centrifuge with VFD drive.
TRGLW355 standard with fixed speed
3 Screw Pump Two sets TRG30A-075 Screw Pump with capacity:30m³/h for each pump.
One for taking fluids from catching tank to feed the decanter centrifuge,the other for flushing the Vertical dryer.
4 Skid with catching tank Fast move skid for mounting all the equipment
One Catching tank with capacity:4m³ for catching fluid from vertical cuttings dryer.
5 Telescopic Skid Two telescopic skid with walkways and handrails for safe operation.
One for mounting the decanter centrifuge to a higher position in order to allow the centrifuge discharged fluids feed to active mud system by gravity.
The other telescopic skid for mounting and adjusting the height of the vertical cutting dryer to allow the discharge of drying cuttings
6 Electric Cradle 0.5 Tons electric cradle for lifting the components of vertical dryer
7 Electric Control System Two lighting system,electrical control boxes and cables and plugs for operation the complete system.



Skid Mounted Pitless Mud Treatment System With VFD Drive 0



Xi'An TianRui Petroleum Machinery Equipment Company is well-reputed manufacturer and exporter of Oil and Gas Equipment. Our products are manufactured by using best material and modern techniques, which make them extremely up to the standard in this challenging domain. The offered products are highly appreciated among customers due to their corrosion resistance, robust design, optimum finish and high tensile strength. Also, these are available in various sizes, dimensions and patterns in order to meet the requirements of customers.

Our staff are professional and experienced. By the hard efforts and united cooperation, we have established a wide sale network. Striving for excellent quality, better price and perfect service. Welcome new and old customers to order.


Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
