|Drying Shaker:||TRZS585G*1pc||Centrifuge Pump:||80YZ50-20B81pc|
|Decanter Centrifuge:||TRLW355N-1*1pc||Vertical Cutting Dryer:||TRCD930C*1pc|
|Material:||Carbon Steel / 304 Stainless Steel||Package:||Wooden Case|
OBM Waste Management Drilling Mud System,
Dewatering Drilling Mud System,
SS304 Drilling Mud System

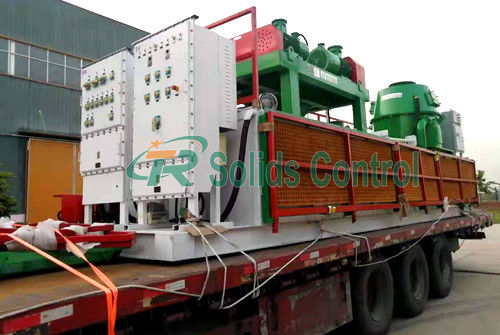

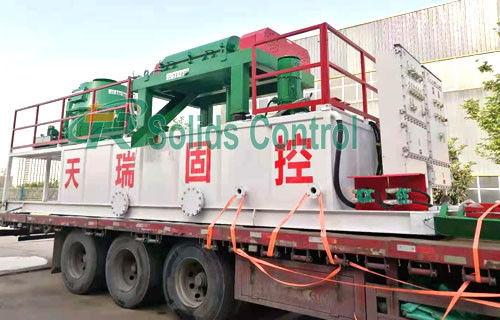

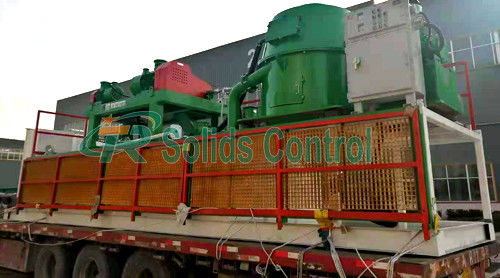

OBM Drilling Waste Management with Centrifuge and Dryer
Drilling waste management systems are packages of different function for drilling waste management. Usually include high G drying shaker, auger feeder or screw conveyor, skid mounted cuttings dryer, and decanter centrifuge with telescopic skid, drilling cuttings tank or mud skips.
Mud not landing system is the common name of drilling waste treatment, also known as drilling fluid does not land, refers to the use of mud not landing equipment to screen the waste in drilling fluid. The equipment for mud not falling to the ground generally includes drying shaker, drilling cuttings dryer and high-speed mud centrifuge.
TR Solid Control has always adhered to the enterprise concept of "customer satisfaction is the highest pursuit of TianRui solid control", and constantly develops new mud purification equipment. We thank our customers for their trust in us, and we will continue to work hard to make greater contributions to drilling mud purification and national environmental protectio
Main Features of TR Drilling Waste Management
Main Cofiguation of TR Drilling Waste Management
|1||Vertical Cuttings Dryer||TRCD930 with option for VFD or fixed speed|
|2||Decanter Centrifuge||TRGLW355Centrifuge 14inch bowl,Optional model as below:
TRGLW355 Centrifuge with VFD drive.
TRGLW355 standard with fixed speed
|3||Screw Pump||Two sets TRG30A-075 Screw Pump with capacity:30m³/h for each pump.
One for taking fluids from catching tank to feed the decanter centrifuge,the other for flushing the Vertical dryer.
|4||Skid with catching tank||Fast move skid for mounting all the equipment
One Catching tank with capacity:4m³ for catching fluid from vertical cuttings dryer.
|5||Telescopic Skid||Two telescopic skid with walkways and handrails for safe operation.
One for mounting the decanter centrifuge to a higher position in order to allow the centrifuge discharged fluids feed to active mud system by gravity.
The other telescopic skid for mounting and adjusting the height of the vertical cutting dryer to allow the discharge of drying cuttings
|6||Electric Cradle||0.5 Tons electric cradle for lifting the components of vertical dryer|
|7||Electric Control System||Two lighting system,electrical control boxes and cables and plugs for operation the complete system.|
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
