500GPM Solids Control Drilling Mud Circulation System

500GPM Solids Control Drilling Mud Circulation System
500GPM Solids Control Drilling Mud Circulation System
video play

Large Image :  500GPM Solids Control Drilling Mud Circulation System

Product Details:
Place of Origin: China
Brand Name: TR Solids Control
Certification: API Q1, ISO 9001:2000
Model Number: TRZJ70
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case or by Container
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month
Detailed Product Description
Specification: 4000*2200*1300mm Port: Tianjing, Shanghai
Color: Green, Orange, Customized Voltage: 220V/380V/415V/460V
Frequency: 50/60 HZ Product Name: Drilling Fluid Purification System
Usage: Oilfield & Energy Warranty: 12 Months
High Light:

500GPM Mud Circulation System

,

Solids Control Mud Circulation System

,

Oilfield Mud Circulation System

500 GPM Drilling Fluid Purification System with Compact Size

Brief Introduction

Oil Drilling Mud System may contain shale shaker, Vacuum Degasser, Mud Desander, desilter, Mud Cleaner, Decanter Centrifuge, centrifugal pump, Drilling Mud Agitator, Mud Gun, Jet Mud Mixer, poor boy degasser, Mud Tank, etc. TR solids control system will suit rig max drilling depth from 2000m to 9000m, as well as the offshore rig or jack-up platform drilling. We promise clients optimal solution with a cost-efficient budget.

TR independently design and manufacture of the mud solid control system has been widely adapted to the ZJ20 system, ZJ30 system, ZJ40 system,ZJ50 system, use ZJ70 drilling solid control system. According to the "Petroleum Healthy Environmental Protection and Environmental Management System" to design and manufacturereasonable reflects TR people's thought idea.


Operating Principle of Solids control system:


Solids control system assembles five-stage solids control equipment, security equipment and other auxiliary equipment via manifolds according to their separation effects in an orderly way. Mud tank serves as a carrier and drilling fluid carrying cuttings directly enters shale shaker through a diverter. The shale shaker separates big cuttings particles from drilling fluid and the treated drilling fluid containing smaller particles passes through screens and enters the mud tank. If mud contains bubbles, self-priming device of vacuum degasser can suction the mud into the degasser for mud-gas separation. The degassed mud is then fed to desander and desilter via centrifugal pump. Solid-liquid separation of mud is continued in cyclones by using the principle of centrifugal sedimentation. Solid particles within 44~74μm separated by desander and those within 15~44μm separated by desilter are discharged and the mud enters the mud tank under centrifuge through manifolds connecting with cyclones for the last stage separation. Submersible slurry pump (screw pump) feeds mud to decanter centrifuge and solids particles over 2~15μm in diameter are separated by the centrifuge. Each mud tank is connected by using built-in pipes. During drilling operations, drilling fluids of different separation effects can be pumped for use as needed. Jet mud mixer on mud tank can prepare mud as needed.


Technical Specification of TR Oil Drilling Mud System


Configure Equipment ZJ70 ZJ50 ZJ40 ZJ30 ZJ20 ZJ10
Mud Tank ≥270m³/h ≥200m³/h ≥180m³/h ≥160m³/h ≥160m³/h ≥80m³/h
Storing Tank ≥160m³/h ≥120m³/h ≥80m³/h ≥80m³/h × ×
Shale Shaker ≥360m³/h ≥280m³/h ≥240m³/h ≥180m³/h ≥140m³/h ≥80m³/h
Vacuum Degasser 360m³/h 300m³/h 240m³/h ×
Desander ≥320m³/h ≥240m³/h ≥200m³/h ≥180m³/h ≥120m³/h
Desilter ≥320m³/h ≥240m³/h ≥200m³/h × ×
Middle Speed Centrifuge 50m³/h 50m³/h 40m³/h ×
High Speed Centrifuge 40m³/h 40m³/h × × ×
Jet Mud Mixer ≥300m³/h ≥240m³/h ≥200m³/h ≥180m³/h ≥120m³/h ≥80m³/h
Shear Pump ≥120m³/h ≥120m³/h ≥120m³/h ≥120m³/h ≥100m³/h ×
Charging Pump ≥240m³/h ≥200m³/h ≥180m³/h ≥150m³/h ≥100m³/h ×

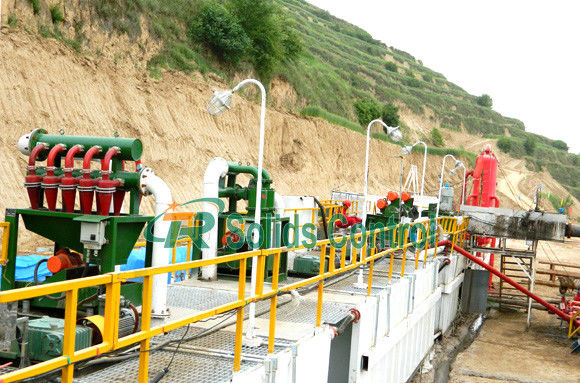

500GPM Solids Control Drilling Mud Circulation System 0


TR Solids Control manufactures all solids control equipment. Mud tanks are also designed and manufactured to compose whole mud systems to meet the demands of drilling rigs from 250HP to 3000HP. As a solids control manufacturer owns API,CE,IEC ,ISO certificate.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet


Customer's satisfaction is the highest pursuit of TR Solids Control.
