Product Details:
Payment & Shipping Terms:
|
| Shale Shaker: | ≥280m3/h | Vacuum Degasser: | ≥280m3/h |
|---|---|---|---|
| Desander: | ≥300m3/h | Desilter: | ≥240m3/h |
| Middle Speed Centrifuge: | ≥50m3/h | Charging Pump: | ≥200m3/h |
| Advantage: | High Performance | Color: | Green, White, Orange |
| High Light: | Oilfield Drilling Mud System,450HP Drilling Mud System,Skid Mounted Drilling Mud System |
||

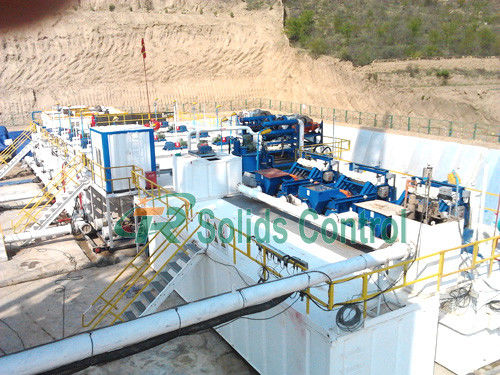

Oilfield Drilling Slurry System for Drill Rig 450HP
Product Introduction
Oil Drilling Mud System may contain shale shaker, Vacuum Degasser, Mud Desander, desilter, Mud Cleaner, Decanter Centrifuge, centrifugal pump, Drilling Mud Agitator, Mud Gun, Jet Mud Mixer, poor boy degasser, Mud Tank, etc. TR solids control system will suit rig max drilling depth from 2000m to 9000m, as well as the offshore rig or jack-up platform drilling. We promise clients optimal solution with a cost-efficient budget.
TR can also design and manufacture of directional drilling purification system, shield mud purification system, gas layer exploration mud purification system, the mining mud purification system, channel dredging mud purification system, such as series of projects.
Skid-mounted Solids Control System Application
The multifunctional design of TR Skid-mounted Solids Control System enables the overall system to meet the requirements of various well depths and drilling fluids. Each solid control equipment can operate independently or collectively with the others. TR is able to manufacture the mud circulating system for 350HP, 450HP, 550HP, 650HP, 750HP Workover Rig and for 1000HP, 1500HP and 2000HP Skid-mounted Land Rig.
As the leading manufacturer for oil gas drilling mud system, TR Solids Control products is certified by API, Europe CE, and Russia TP and TC. The explosion proof standard can be IEC Ex, or ATEX certified for developed countries for Zone 1 and Zone II application.
Technical Specifications of TR Oil Drilling Mud System
| Configure Equipment | ZJ70 | ZJ50 | ZJ40 | ZJ30 | ZJ20 | ZJ10 |
| Mud Tank | ≥270m³/h | ≥200m³/h | ≥180m³/h | ≥160m³/h | ≥160m³/h | ≥80m³/h |
| Storing Tank | ≥160m³/h | ≥120m³/h | ≥80m³/h | ≥80m³/h | × | × |
| Shale Shaker | ≥360m³/h | ≥280m³/h | ≥240m³/h | ≥180m³/h | ≥140m³/h | ≥80m³/h |
| Vacuum Degasser | 360m³/h | 300m³/h | 240m³/h | √ | √ | × |
| Desander | ≥320m³/h | ≥240m³/h | ≥200m³/h | ≥180m³/h | ≥120m³/h | √ |
| Desilter | ≥320m³/h | ≥240m³/h | ≥200m³/h | √ | × | × |
| Middle Speed Centrifuge | 50m³/h | 50m³/h | 40m³/h | √ | √ | × |
| High Speed Centrifuge | 40m³/h | 40m³/h | √ | × | × | × |
| Jet Mud Mixer | ≥300m³/h | ≥240m³/h | ≥200m³/h | ≥180m³/h | ≥120m³/h | ≥80m³/h |
| Shear Pump | ≥120m³/h | ≥120m³/h | ≥120m³/h | ≥120m³/h | ≥100m³/h | × |
| Charging Pump | ≥240m³/h | ≥200m³/h | ≥180m³/h | ≥150m³/h | ≥100m³/h | × |
Xi'An TianRui Petroleum Machinery Equipment Company Limited follows the principle of "quality first, science and technology innovated, people oriented", it benefits from the convenient running, high efficiency, swift reaction, experienced experts and the advanced management. In a meanwhile, it has about 50 sub-contractors to cooperate all over the country, and it always sticks to good faith, strictness, specialty, innovation, also satisfactory service.our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions).
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
