| Fluid Capacity: | ≤50m3/h | Separation Point: | 25μm |
|---|---|---|---|
| Shale Shaker: | TRZS753 | Vibration Motor: | 1.0kw*2 |
| Matching Pump: | TRSB4*3-12J(15kw) | Hydrocyclones: | DN100*4pcs |
| Tank Dimension: | 2300*1830*1300mm | System Dimension: | 2300*1830*2400mm |
| Material: | Cast Steel | Feed Capacity: | 20m /3h~250m/3h |
| High Light: | 200GPM Mud Desander,25μm Mud Desander,Bored Pile Mud Desander |
||

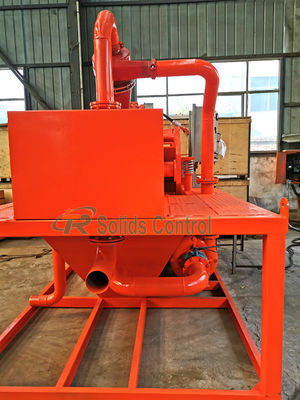

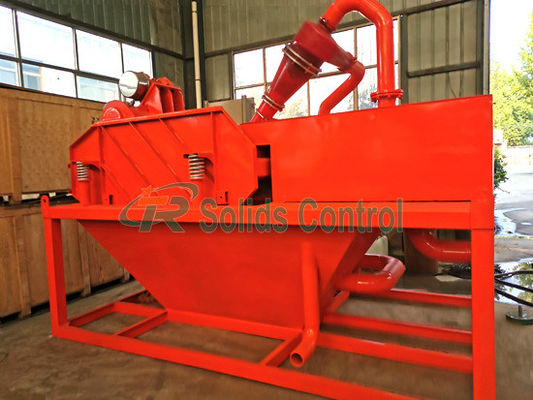

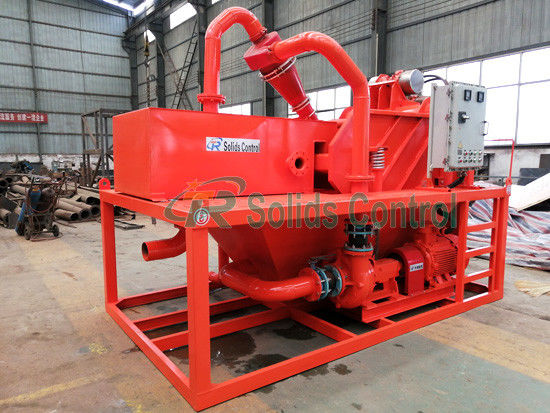

Small Scale Mud System Desanding Plant with Capacity 200GPM
Product Introduction
Desanding plant is design for bored pile & TBM on construction with economy option and very compact design for small footprint. TR desanding plant can be used for economy option as HDD mud recycling system. The desanding plant is design for flexible working and installation to suit bored pile, TBM or HDD mud recycling system.
Slurry Separation system is a necessary equipment of foundation construction, used for pile foundation projects adopting slurry hole/tunnel wall supporting, rotary drilling rig, circular drilling technology; Diaphragm wall project and slurry purification recycling of slurry pipe-jacking construction, with the features of reducing construction cost, increasing construction efficiency.
TR Solids Control is the experienced Desanding plants Manufacturer and Exporter in China. We have many years experience of equipment design, production and application. Our Desanding plants have further applications in Bored Pile, Diaphragm Walls, Water well drilling, Microtunneling projects, Mining industry.
Key Advantages of TR Bored Piling Desanding Plant
Main pecifications of TR Bored Pile Desanding Plant
| Model | TRZX-50/25 | TRZX-100/50 | TRZX-200/50 |
| Fluid Capacity | ≤50m³/h | ≤100m³/h | ≤200m³/h |
|
Sludge Treatment Capacity |
≤26T/h | ≤50m³/h | ≤50m³/h |
| Separation Point | 25μm | 50μm | 50μm |
| Shale Shaker | TRZS753 | TRZS753 | TRZS705 |
|
Screen Area |
Upper:700×1250 Bottom:750×900×2 |
Upper:700×1250 Bottom:750×900×2 |
Upper:750×900×2 Bottom:700×1250×3 |
|
Vibration Motor |
1.0kw×2 | 1.0kw×2 | 1.5KW×2 |
| Matching Pump | TRSB4×3-12(15KW) | TRSB5×4-13(30KW) | TRSB6×5-13J(45KW) |
| Matching Hydrocyclone | DN100×4 | DN250×1 | DN250×2 |
| Tank Dimension | 2.1x1.5x2.6m | 3.05x2.0x1.2m | 3.6x2.1x1.2m |
| Dimension | 3.12x2.2x2.38m | 3.7x2.2x2.54m |
Our company has always focused on research, development and innovation. TR will initiate the second phase of our development strategy. Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
