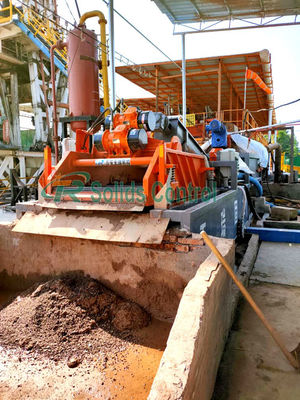

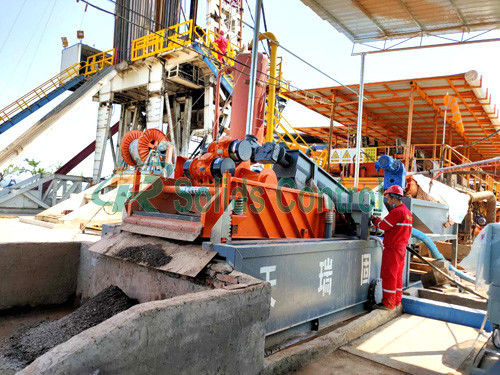

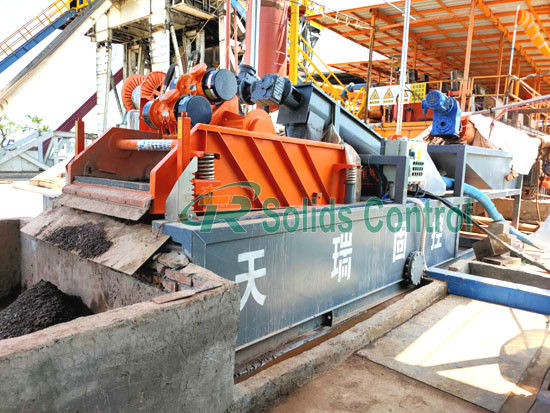

Oil Gas Water Well Drilling Waste Management Equipment

Oil Gas Water Well Drilling Waste Management Equipment
Oil Gas Water Well Drilling Waste Management Equipment
video play

Large Image :  Oil Gas Water Well Drilling Waste Management Equipment

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API & ISO Certified
Model Number: TRDWM-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case or by container
Delivery Time: 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 100 Set / Month
Detailed Product Description
Drying Shaker: TRZS585G*1pc Centrifuge Pump: 80YZ50-20B81pc
Decanter Centrifuge: TRLW355N-1*1pc Vertical Cutting Dryer: TRCD930C*1pc
Material: Carbon Steel / 304 Stainless Steel Package: Wooden Case

Oil Gas Water Well Drilling Waste Management Equipment



Product Overview



Drilling waste management systems are packages of different function for drilling waste management. Usually include high G drying shaker, auger feeder or screw conveyor, skid mounted cuttings dryer, and decanter centrifuge with telescopic skid, drilling cuttings tank or mud skips.



Our oil-based drilling waste management is mainly divided into waste drying collection unit, liquid phase separation unit. As for disposal of waste mud, we need to add gel breaker processing unit.



Drilling waste management is our latest researched and manufactured unit for a better environment protection and high working efficacy. Just as we know, oil and gas wells drilling fields will create waste in the drilling progress, which will be harmful to the environment. Therefore, we need drilling waste management unit to solve this kind of problem. Normally, with a good waste managementpractice, the amount of waste and the toxicity of waste will be reduced and bring a good environment for drilling fields.



Main Solutions



Solution 1
The system mainly consists of shale shaker, decanter centrifuge and tanks, used for the water-base drilling mud and drilling waste treatment. The drilling mud after treatment can be reused, but the moisture content of treated solid phase is relatively high.



Solution 2
The system mainly consists of vertical cutting dryer, decanter centrifuge and tanks, used for the water-base / oil-base drilling mud and drilling waste treatment. The moisture content and oil content of treated solid phase is lower.



Solution 3
The system mainly consists of filter press, chemical-adding unit and tanks, used for the water-base drilling mud and drilling waste treatment. The moisture content of treated solid phase is lower, but the working process is relatively complex and the equipment floor area is big.



Equipment Details of TR Drilling Waste Management



S/N S/N Description
1 Vertical Cuttings Dryer TRCD930 with option for VFD or fixed speed
2 Decanter Centrifuge TRGLW355Centrifuge 14inch bowl,Optional model as below:
TRGLW355 Centrifuge with VFD drive.
TRGLW355 standard with fixed speed
3 Screw Pump Two sets TRG30A-075 Screw Pump with capacity:30m³/h for each pump.
One for taking fluids from catching tank to feed the decanter centrifuge,the other for flushing the Vertical dryer.
4 Skid with catching tank Fast move skid for mounting all the equipment
One Catching tank with capacity:4m³ for catching fluid from vertical cuttings dryer.
5 Telescopic Skid Two telescopic skid with walkways and handrails for safe operation.
One for mounting the decanter centrifuge to a higher position in order to allow the centrifuge discharged fluids feed to active mud system by gravity.
The other telescopic skid for mounting and adjusting the height of the vertical cutting dryer to allow the discharge of drying cuttings
6 Electric Cradle 0.5 Tons electric cradle for lifting the components of vertical dryer
7 Electric Control System Two lighting system,electrical control boxes and cables and plugs for operation the complete system.



Oil Gas Water Well Drilling Waste Management Equipment 0



Xi'An TianRui Petroleum Machinery Equipment Company is well-reputed manufacturer and exporter of Oil and Gas Equipment. Our products are manufactured by using best material and modern techniques, which make them extremely up to the standard in this challenging domain. The offered products are highly appreciated among customers due to their corrosion resistance, robust design, optimum finish and high tensile strength. Also, these are available in various sizes, dimensions and patterns in order to meet the requirements of customers.


Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
