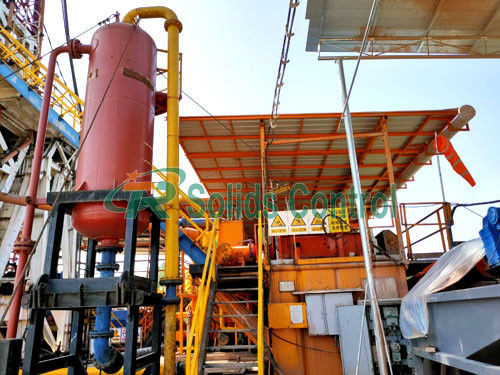

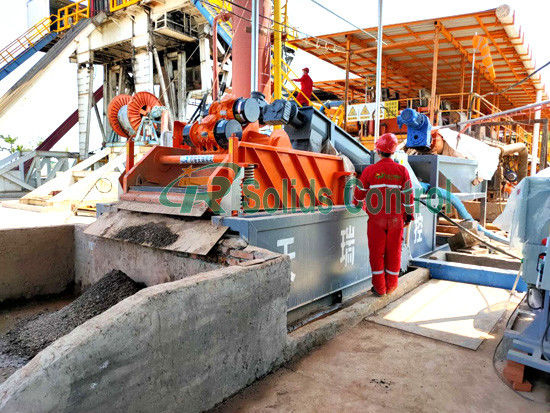

Waste Management 30m³/H Oilfield Drilling Mud System

Waste Management 30m³/H Oilfield Drilling Mud System
Waste Management 30m³/H Oilfield Drilling Mud System
video play

Large Image :  Waste Management 30m³/H Oilfield Drilling Mud System

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API & ISO Certified
Model Number: TRDWM-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case or by container
Delivery Time: 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 100 Set / Month
Detailed Product Description
Drying Shaker: TRZS585G*1pc Vertical Cutting Dryer: TRCD930C*1pc
Centrifuge Pump: 80YZ50-20B81pc Feeding Pump: TRSB4*3-11J*2pcs
Decanter Centrifuge: TRLW355N-1*1pc Selling Point: Eco-friendly
High Light:

Oilfield Drilling Mud System

,

30m³/H Drilling Mud System

,

VFD Drilling Cutting Management System

Eco-friendly Drilling Waste Management for Oil and Gas Drilling



Product Overview


Drilling waste management system, also called as drill cutting treatment system or drilling cutting management system. According to different applications, it can be classified as water-base drilling waste management system and oil-base drilling waste management system. The main system equipments are drying shaker, cutting dryer, decanter centrifuge, screw conveyor, screw pump and tanks. The drilling waste management system can effectively control the moisture content (6%-15%) and oil content (2%-8%) in drilling cuttings and stabilizes the liquid phase performance.



Using the corrugated sheet structure,and with the“five stages purification,control of total access,total intrinsically safe circuit,the mud circulation tank is well received by the drilling crew.



As the professional manufacturer in China, TR can independently design and manufacture various model Drilling Waste Managementor or Cutting Dryer System according to the customers requirement.



Design Features of Drilling Waste Management Scheme



  1. Italy Technology: Overwhelmingly overcomes the difficulty in disposing the waste all or disposing them effectively, which combines the technology brought from Italy with advantages of the same products abroad.
  2. Good Result of Water-based Mud: 6%-10% Water Content.
  3. Environmental and Economical:This cutting dryer system realizes the social value of environmental protection, maximizing the usage of drilling fluid economically.
  4. Stable Performance: Our Drilling Waste Management is to control the volume of water containing in the drilling mud and stabilize the liquid performance, which achieves the purpose of managing the drilling waste and recycle the drilling mud without damaging the water performance.



Equipment List of TR Drilling Waste Management



S/N S/N Description
1 Vertical Cuttings Dryer TRCD930 with option for VFD or fixed speed
2 Decanter Centrifuge TRGLW355Centrifuge 14inch bowl,Optional model as below:
TRGLW355 Centrifuge with VFD drive.
TRGLW355 standard with fixed speed
3 Screw Pump Two sets TRG30A-075 Screw Pump with capacity:30m³/h for each pump.
One for taking fluids from catching tank to feed the decanter centrifuge,the other for flushing the Vertical dryer.
4 Skid with catching tank Fast move skid for mounting all the equipment
One Catching tank with capacity:4m³ for catching fluid from vertical cuttings dryer.
5 Telescopic Skid Two telescopic skid with walkways and handrails for safe operation.
One for mounting the decanter centrifuge to a higher position in order to allow the centrifuge discharged fluids feed to active mud system by gravity.
The other telescopic skid for mounting and adjusting the height of the vertical cutting dryer to allow the discharge of drying cuttings
6 Electric Cradle 0.5 Tons electric cradle for lifting the components of vertical dryer
7 Electric Control System Two lighting system,electrical control boxes and cables and plugs for operation the complete system.



Waste Management 30m³/H Oilfield Drilling Mud System 0


As the professional manufacturer in China, TR can independently design and manufacture various model Drilling Waste Managementor or Cutting Dryer System according to the customers requirement.

Xi'An TianRui Petroleum Machinery Equipment Company is with perfect attitude, product and service. We are going to make further development together with customers at home and abroad. We will always be an old friend give you best both price product quality and service! We deserve your trust!


Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
