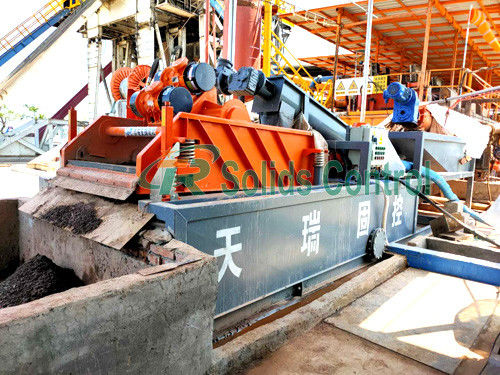

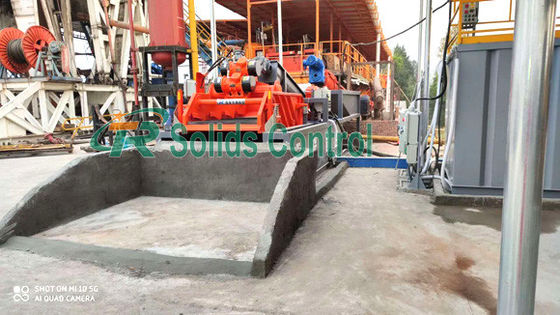

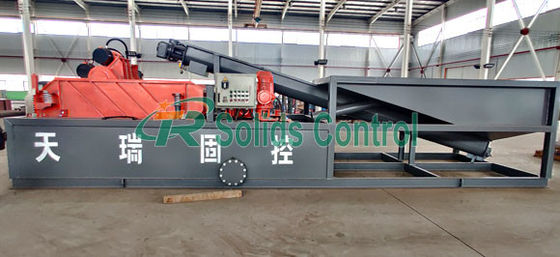

Solids Control VFD Drill Cuttings Mud Treatment System

Solids Control VFD Drill Cuttings Mud Treatment System
Solids Control VFD Drill Cuttings Mud Treatment System
video play

Large Image :  Solids Control VFD Drill Cuttings Mud Treatment System

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API & ISO Certified
Model Number: TRDWM-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case or by container
Delivery Time: 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 100 Set / Month
Detailed Product Description
Drying Shaker: TRZS585G*1pc High Speed Centrifuge: TRLW355N-1*1pc
Vertical Cutting Dryer: TRCD930C*1pc Centrifuge Pump: 80YZ50-20B81pc
Feeding Pump: TRSB4*3-11J*2pcs Advantage: High Performance
Certificate: API, CE, ISO9001
High Light:

Drill Cuttings Mud Treatment System

,

VFD Mud Treatment System

,

VFD Drilling Mud System

Oil Drilling Waste Manage System Drill Cuttings Treatment System



Product Overview



Drilling Waste Management is also called Cutting Dryer System, Drill Cuttings Treatment or Drilling Cuttings Treatment, It is mainly combined with Drying Shake, Vertical Cutting Dryer, Decanter Centrifuge, Submersible Slurry Pump and Screw Pump. It is widely used for oil drilling waste treatment and mud drying.


Mud solid control system(Drilling Fluid Circulation Tank, Mud circulation tank) is an indispensable part of modern drilling. It can ensure that the drilling rig in the drilling process of the normal circulation and performance of the slurry, the product mainly by the explosion-proof power, lighting distribution and control devices, double-excited double-layer new drilling fluid shale shaker, centrifugal vacuum degassing, desilter,desander, horizontal centrifuges, vertical sand pumps, mud mixers, mixed dosing funnels, and tanks can be used to separate, agitate and reserve the drilling fluid to meet the drilling Engineering needs. The company, developed a set of solid control system, has ZJ40J, ZJ50D, ZJ70D, ZJ32, ZJ20B7 and other types of rig supporting.



Key Characterstics of Drilling Waste Management Scheme



1. Good Result of Water-based Mud: 6%-10% Water Content.
2. Italy Technology: Overwhelmingly overcomes the difficulty in disposing the waste all or disposing them effectively, which combines the technology brought from Italy with advantages of the same products abroad.
3. Stable Performance: Our Drilling Waste Management is to control the volume of water containing in the drilling mud and stabilize the liquid performance, which achieves the purpose of managing the drilling waste and recycle the drilling mud without damaging the water performance.
4. Environmental and Economical:This cutting dryer system realizes the social value of environmental protection, maximizing the usage of drilling fluid economically.



Equipment List Details of TR Drilling Waste Management



S/N S/N Description
1 Vertical Cuttings Dryer TRCD930 with option for VFD or fixed speed
2 Decanter Centrifuge TRGLW355Centrifuge 14inch bowl,Optional model as below:
TRGLW355 Centrifuge with VFD drive.
TRGLW355 standard with fixed speed
3 Screw Pump Two sets TRG30A-075 Screw Pump with capacity:30m³/h for each pump.
One for taking fluids from catching tank to feed the decanter centrifuge,the other for flushing the Vertical dryer.
4 Skid with catching tank Fast move skid for mounting all the equipment
One Catching tank with capacity:4m³ for catching fluid from vertical cuttings dryer.
5 Telescopic Skid Two telescopic skid with walkways and handrails for safe operation.
One for mounting the decanter centrifuge to a higher position in order to allow the centrifuge discharged fluids feed to active mud system by gravity.
The other telescopic skid for mounting and adjusting the height of the vertical cutting dryer to allow the discharge of drying cuttings
6 Electric Cradle 0.5 Tons electric cradle for lifting the components of vertical dryer
7 Electric Control System Two lighting system,electrical control boxes and cables and plugs for operation the complete system.



Solids Control VFD Drill Cuttings Mud Treatment System 0


TR Solids Control is one of the most famous International Brand for Mud Solids Control System & Drilling Waste Management. We have the one stop for Solids Control Solution of your oil gas drilling, CBM drilling, HDD, and water well drilling as well as the construction drilling mud treatment etc.


Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
