API VFD Skid Mounted API PLC Drilling Mud Equipment

API VFD Skid Mounted API PLC Drilling Mud Equipment
API VFD Skid Mounted API PLC Drilling Mud Equipment
video play

Large Image :  API VFD Skid Mounted API PLC Drilling Mud Equipment

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certified
Model Number: TRDWM-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case or by container
Delivery Time: 30 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 100 Set / Month
Detailed Product Description
Drying Shaker: TRZS585*1pc High Speed Centrifuge: TRLW355N-1*1pc
Sand Pump: TRSB4*3-11J*2pcs Centrifuge Slurry Pump: 80YZ50-20B81pc
Screw Conveyor: TRL350*3000 Vertical Cutting Dryer: TRCD930C*1pc
High Light:

API PLC Drilling Mud Equipment

,

VFD Drilling Mud Equipment

,

API Drilling Mud System

Water-Based Drilling Waste Management Solution for Oil Gas Drilling



Introduction

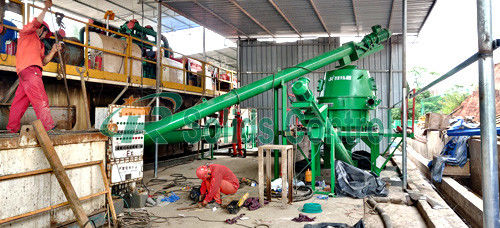

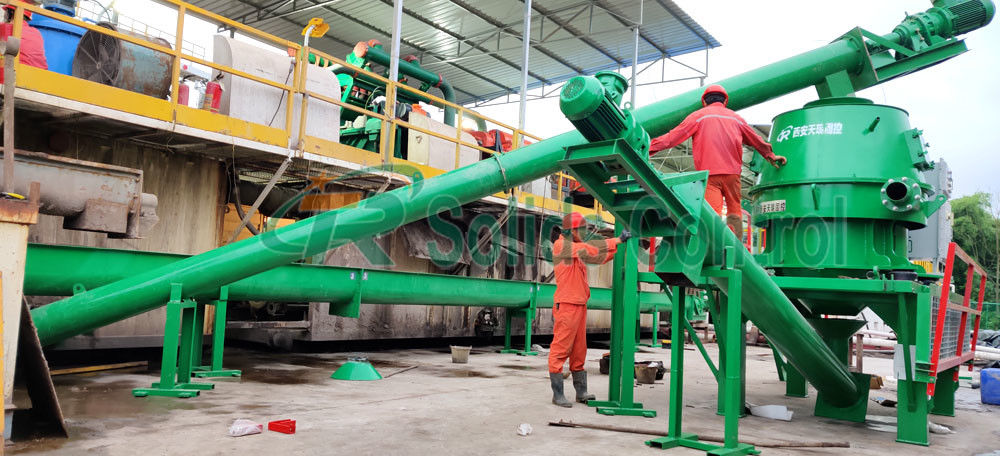

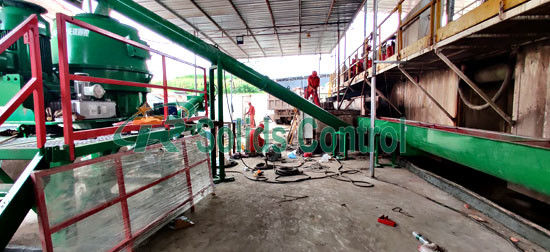

The skid-mounted drying machine system is composed of mud tank, cutting dryer, VFD decanter centrifuge, mud agitator, screw pump, collection tank, screw conveyor, ladder, walkway, handrail, pipes and valves.



The whole drilling waste management (unit)is composed of VFD decanter centrifuge, vertical cutting dryer, screw pumps, 12 meters screw conveyor and 9 meter screw conveyor, mud tanks, mud agitator, etc. In some customized projects, maybe there will appear some solid control equipment, such as sand pump, mud cleaner, shale shaker with shaker screen, vacuum degasser, etc. We do not think this is a hard problem for WestPetro to customized drilling waste management, on the other hand, we believe strongly that if the drilling waste management unit works well with the solid control system, that means their combination will bring an amazing high efficiency in the oil drilling work, and we are believe this is what we all want to get.



Characterstics of Drilling Waste Management Scheme



  • Programmable Logic Controller (PLC), with automatic warning indicators, monitors temperature, torque, oil flow and operating hours.
  • High-capacity, continuous feed units have the throughput to keep up with drilling.
  • Tungsten-carbide-coated, independently adjustable flights reduce wear and ensure optimal tolerance.
  • Handrail and walkways is convenient for operators to do routine maintenance work, that can reduce risk to personnel.
  • Different kinds of screens can meet various operation requirement.
  • Explosion-proof motors and control panels can be certified with CE/ATEX.



Equipment List Details of TR Drilling Waste Management



S/N S/N Description
1 Vertical Cuttings Dryer TRCD930 with option for VFD or fixed speed
2 Decanter Centrifuge TRGLW355Centrifuge 14inch bowl,Optional model as below:
TRGLW355 Centrifuge with VFD drive.
TRGLW355 standard with fixed speed
3 Screw Pump Two sets TRG30A-075 Screw Pump with capacity:30m³/h for each pump.
One for taking fluids from catching tank to feed the decanter centrifuge,the other for flushing the Vertical dryer.
4 Skid with catching tank Fast move skid for mounting all the equipment
One Catching tank with capacity:4m³ for catching fluid from vertical cuttings dryer.
5 Telescopic Skid Two telescopic skid with walkways and handrails for safe operation.
One for mounting the decanter centrifuge to a higher position in order to allow the centrifuge discharged fluids feed to active mud system by gravity.
The other telescopic skid for mounting and adjusting the height of the vertical cutting dryer to allow the discharge of drying cuttings
6 Electric Cradle 0.5 Tons electric cradle for lifting the components of vertical dryer
7 Electric Control System Two lighting system,electrical control boxes and cables and plugs for operation the complete system.



API VFD Skid Mounted API PLC Drilling Mud Equipment 0


TR Solids Control exported directly or sold with supporting drillers to more than 30 countries and regions in the world such as Russia, United States, Australia, Latin America and the Middle East etc. Making sure to support first-class solid-control equipment with developing“Made in China”as our own tasks, holding forward-looking to each task, every drawing has technicity to direct, every process has worker to follow up and every product has QC to check on. To provide customers with a full set of solid-control equipment solutions effectively is our company's goal.


Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
