Product Details:
Payment & Shipping Terms:
|
| Capacity: | 200GPM | Shale Shaker: | TRZS752S |
|---|---|---|---|
| Hydrocyclone: | 4" | Hydrocyclone Qty: | 4 Pcs |
| Supply Pump Model: | TRSB4*3-12J | Slurry Pump Model: | TRSB4*3-11J |
| Mud Hopper: | TRSLH100 | Gross Power: | 44 KW |
| Weight: | 5500kg | Dimension: | 4000*2360*2940mm |
| High Light: | 250GPM Drilling Mud Treatment System,HDD Drilling Mud Treatment System |
||

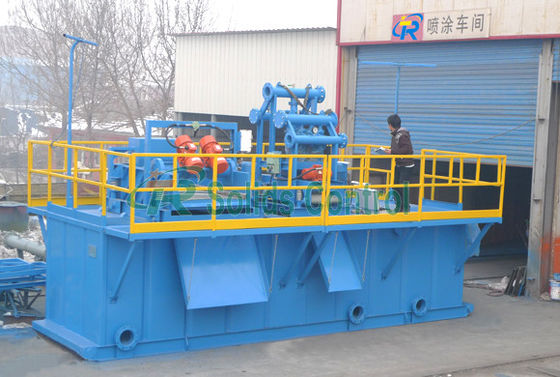

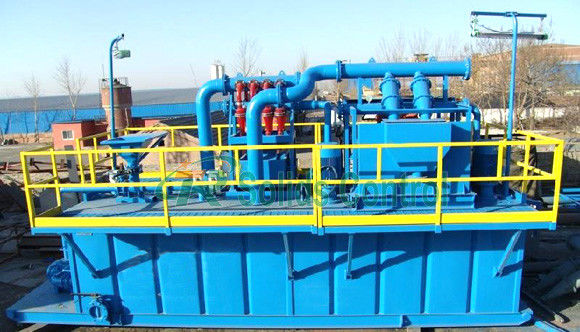

250 GPM HDD Drilling Mud Treatment System
System Introduction

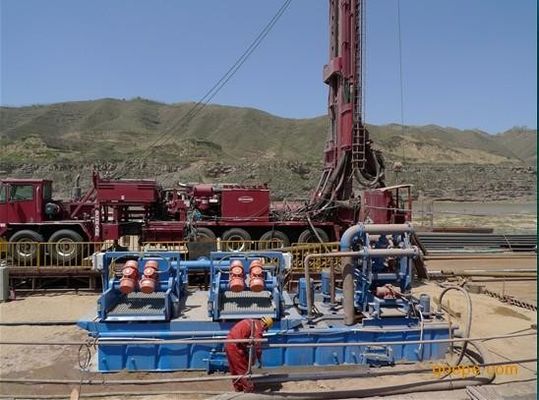

Horizontal directional drilling short name is HDD. This technology has wide application in oil and gas pipelines crossing the rivers, lakes, highway, railway hub and other obstacles and important area. HDD site is all in large no-excavation area and do not allow to make mud discharge randomly, so it is very important to equip with mud recovery system. TR Solids Control is a professional manufacture in designing and customizing HDD mud recovery system.
Drilling fluid preparing tank consist of mud tank, injection mixer device, agitator, electric control system, wellhead manifolds. Cubage of tank and flow of drilling fluid pre-preparing all can customize as order. Power of mixer pump and flow all can customize according flow rate of mud pump. Whole external size will be changed as power spec.
Benefits of HDD Mud Recycling System:
1. Mud recycling and mud mixing included in high standard model, the combination including complete line of mud recycling and mud mixing with suitable mud storage.
2. Compact design with minimum foot print. All equipments on tank top will sit on tank while local transport moving to allow fast moving and installation from jobsite to jobsite. Handrail and walkway can be folded on tank top or tank side with quick lock.
3. Composite material screen install on shale shaker to help for a better performance and longer screen working life. Our shaker screen build as per API RP 13C regulation to meet worldwide client's requirement.
4. Mud tank each corner weld container standard lifting lug for lifting tank and lock tank on trailer.
5. Self clean mud tank or V type mud tank for easy cleaning, each mud tank compartment install clean gate with butterfly valve. Mud tank size and pipeline arrangement can be customized depending on jobsite requirement.
Main Specifications of TR HDD Mud Recovery System
| Model | TRHDD-200 | Model | TRHDD-500 | TRHDD-1000 |
| Capacity | 200GPM (50m3 /h) | Capacity | 500GPM (120m3 /h) | 1000GPM (240m3 /h) |
| Shale Shaker | TRZS752S | Shale Shaker | TRZS703/TRZS585 | TRZS703/TRZS585 |
|
Upper Screen Area |
0.875m2 |
Screen Area |
2.7m2 | 2X2.7m2 |
|
Upper Screen Area |
1.35m2 |
Mud Cleaner |
TRQJ250X1S-100X8N | TRQJ250X2S-100X12N |
|
Hydrocyclone |
4" |
Mud Cleaner Mud Cleaner |
10"×1pcs | 10"×2pc |
|
Hydroclycolone Qty |
4 pcs |
Desilter Cyclone |
4"×8pcs | 4"×12pcs |
|
Supply Pump Model |
TRSB4X3-12J |
Bottom Screen Area |
1.35m2 | 2.12m2 |
| Slurry Pump Model | TRSB4X3-11J | Supply Pump | TRSB6X5-11J*2 | TRSB8X6-11J*2 |
| Mud Hopper | TRSLH100 | Slurry Pump | TRSB6X5-12J | TRSB8X6-12J |
| Gross Power | 44kW | Jet Mud Mixer | TRSLH150-35(37KW) | TRSLH150-35(45KW) |
| Total Volume | 5m3 | Mud Agitator | TRJBQ7.5 | TRJBQ7.5 |
| Dimension | 4000×2360×2940mm | Gross Power | 130kW | 184kW |
| Weight | 5500kg | Total Volume | 15m3 | 30m3 |
| Dimension | 10000×2360×4228mm | 12100×2630×4438mm | ||
| Weight | 17000kg | 20000kg |
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
