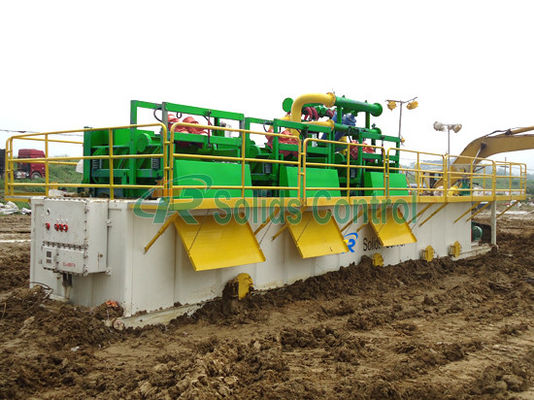

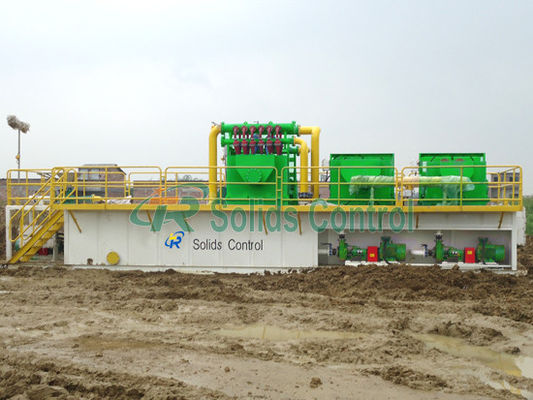

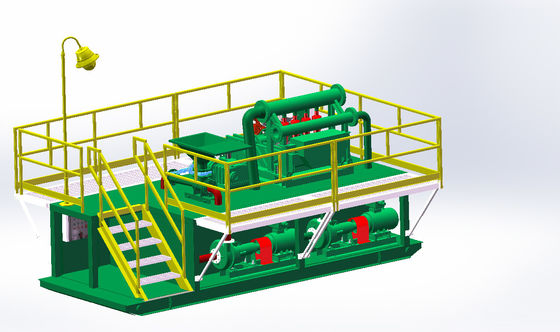

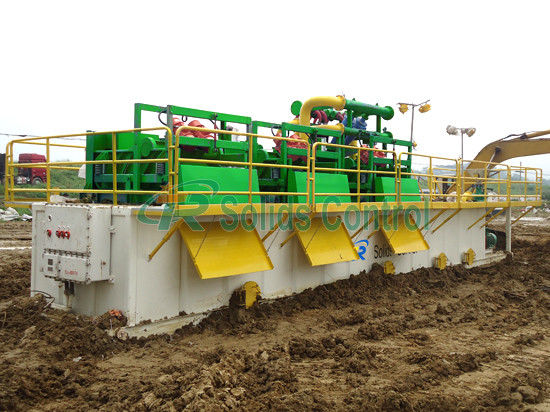

Engineering 1000gpm HDD 240m3/H Mud Mixing System

Engineering 1000gpm HDD 240m3/H Mud Mixing System
Engineering 1000gpm HDD 240m3/H Mud Mixing System
video play

Large Image :  Engineering 1000gpm HDD 240m3/H Mud Mixing System

Product Details:
Place of Origin: China
Brand Name: TR Solids Control
Certification: ISO 9001:2008
Model Number: TRHDD-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: By Container
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Set / Month
Detailed Product Description
Specification: 12100*2630*4438mm Power Source: Electric
Operation Pressure: Atmospheric Pressure Material: Stainless Steel
Type: HDD System Capacity: 1000gpm
High Light:

HDD Mud Mixing System

,

240m3/H Mud Mixing System

Mud Mixing System for HDD Project 240m3/H



Product Introduction



HDD mud recovery system is a standard design type and is divided into the following series according to different capacities. In addition, TR sticks to management idea of “More Than Customized”, and is capable of designing and manufacturing various mud recovery systems as per customers' specific treatment requirements.



TR HDD mud recycling system is design for Horizontal Directional Drilling ( HDD ) rig. A HDD mud recycling system can including shale shaker, desander cyclone, desilter cyclone, decanter centrifuge, mud tank, mud agitator, mud gun, transfer pump, etc. The shaker screen mesh size will depending on a shaker performance for mud flow and drilling mud separation at different mud requirement.



Advantages of our HDD Mud Solids Control System Equipment is as belows:



  • Effective HDD Solids Control Syestm Equipment integration. Instead of a collection of equipment from various sources, the TR fluids processing system is a field-proven network of solids-control components specifically designed to function as a single unit.
  • Custom engineering: TR Solids Control Team analyzes well parameters and drilling objectives for each application and tailors the right combination of equipment for optimal results.
  • Best Price HDD Mud Syestm Equipment: TR Solids Control is located in China ancient well-know city Xi'an. The price of raw material here is very low and with high quality. There are also many experienced workforce in iron machine production.They work very efficiently. Moreover,we control production of fluids processing system cost well by outsourcing some processin
  • This HDD mud solids control will decrease costs on the lowest level to guarantee customers’benefit. TR Solids Control provides accomplished services to customers. So our fluids processing systems must be your ideal choice.



Main Specifications of HDD Mud Recovery System



Model TRHDD-200 Model TRHDD-500 TRHDD-1000
Capacity 200GPM (50m3 /h) Capacity 500GPM (120m3 /h) 1000GPM (240m3 /h)
Shale Shaker TRZS752S Shale Shaker TRZS703/TRZS585 TRZS703/TRZS585
Upper Screen Area 0.875m2 Screen Area 2.7m2 2X2.7m2
Upper Screen Area 1.35m2 Mud Cleaner TRQJ250X1S-100X8N TRQJ250X2S-100X12N
Hydrocyclone 4"

Mud Cleaner

Mud Cleaner

10"×1pcs 10"×2pc
Hydroclycolone Qty 4 pcs Desilter Cyclone 4"×8pcs 4"×12pcs
Supply Pump Model TRSB4X3-12J Bottom Screen Area 1.35m2 2.12m2
Slurry Pump Model TRSB4X3-11J Supply Pump TRSB6X5-11J*2 TRSB8X6-11J*2
Mud Hopper TRSLH100 Slurry Pump TRSB6X5-12J TRSB8X6-12J
Gross Power 44kW Jet Mud Mixer TRSLH150-35(37KW) TRSLH150-35(45KW)
Total Volume 5m3 Mud Agitator TRJBQ7.5 TRJBQ7.5
Dimension 4000×2360×2940mm Gross Power 130kW 184kW
Weight 5500kg Total Volume 15m3 30m3
    Dimension 10000×2360×4228mm 12100×2630×4438mm
    Weight 17000kg 20000kg



Engineering 1000gpm HDD 240m3/H Mud Mixing System 0



TR Solids Control is a professional manufacturer of solid control system/equipment in china. we will provide our client high quality products with most reasonable price, at the same time we also sincerely offer the high level after sales service for any home or abroad clients. We still adhere to the concept of Creating the maximum values and the satisfaction for our clients.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
