Trenchless Recycling HDD 240m3/H Oil Rig Mud System

High Capacity 240m3/h HDD Mud Recycling System

Product Introduction

HDD mud recycling system is design for Horizontal Directional Drilling ( HDD ) rig. A HDD mud recycling system can including shale shaker, desander cyclone, desilter cyclone, decanter centrifuge, mud tank, mud agitator, mud gun, transfer pump, etc. The shaker screen mesh size will depending on a shaker performance for mud flow and drilling mud separation at different mud requirement.

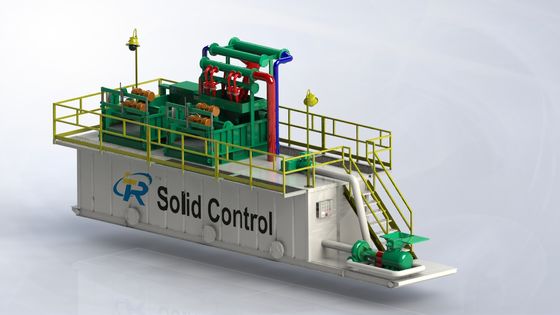

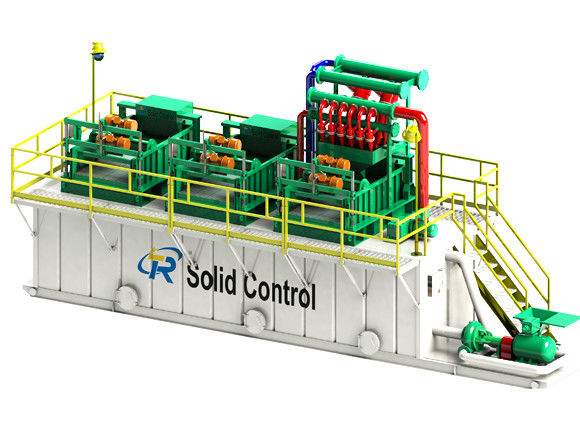

Our HDD mud system is designed for the 500-800 tons horizontal directional drilling rig and can match the 4000L/min mud pump in trenchless projects. The design capacity is 240m3/h (1000GPM). It's is composed of ZS103 shale shaker, ZJ103-2S12N mud cleaner, SB centrifugal pump, SLH jet mud mixer, mud agitator and mud tanks.

Working Procedure of HDD Mud Recycling System:

1. There is a drill pit at each side of drilling hole, a set of vertical slurry pump will set on top of mud pit for feeding shale shaker. The shale shaker screen will separate drilling cuttings and discharge out, fluids part will drop into sand trap through screen hole.
2. 1 or 2 or 3 sets of desander cyclone sit after shale shaker, one set of centrifugal pump will feed desander cyclong for second phase separation, solids out of desander will be discharge to shaker screen or cutting box directly and fluids over flow from desander will flow into desander compartment.
3. A quantity of desilter cyclones will sit after desander for fine solids separation, solids out of desilter will discharge to shaker screen or cuttings box, fluids over from desilter will drop into desilter compartment.
4. A mixing pump sit on tank skid for drilling mud transfer and feed mud into mud hopper for new mud remix by new chemicals. The mixing hopper can sit on top of tank or tank skid as per client’s demand.

Main Specifications of HDD Mud Recovery System

TR Solids Control is one of the most famous International Brand for Mud Solids Control System & Drilling Waste Management. We have the one stop for Solids Control Solution of your oil gas drilling, CBM drilling, HDD, and water well drilling as well as the construction drilling mud treatment etc.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
