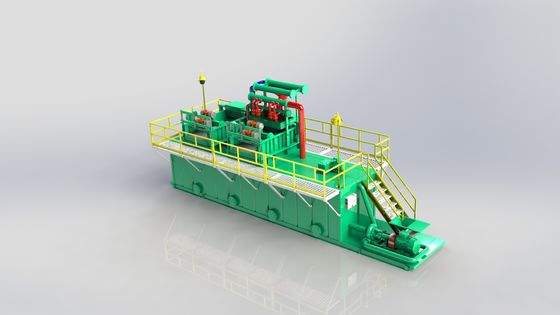

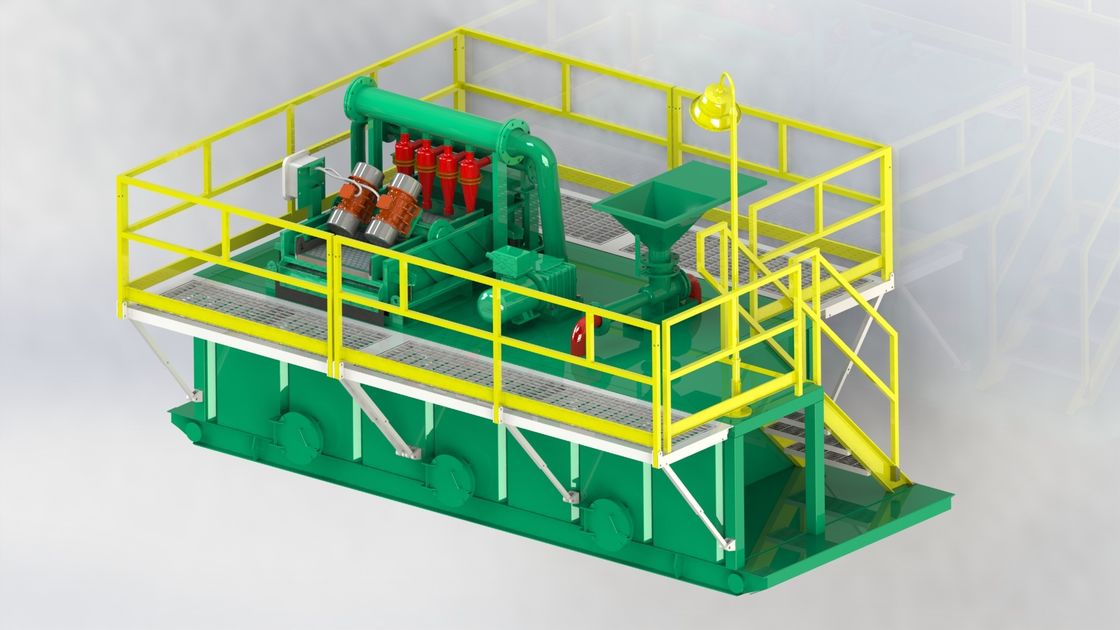

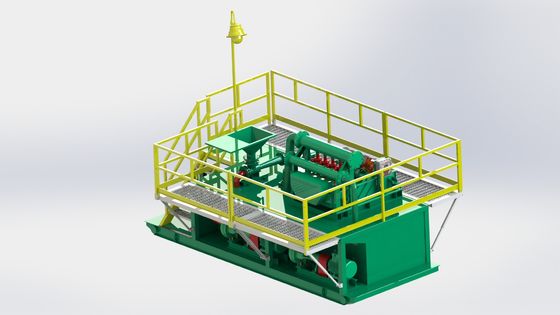

Explosion Proof 500GPM HDD Drilling Mud Recycling System

Explosion Proof 500GPM HDD Drilling Mud Recycling System
Explosion Proof 500GPM HDD Drilling Mud Recycling System
video play

Large Image :  Explosion Proof 500GPM HDD Drilling Mud Recycling System

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certified
Model Number: TRHDD-500
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: By Container
Delivery Time: 25 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 100 Set / Month
Detailed Product Description
Capacity: 500GPM Shale Shaker: TRZS703/TRZS585
Mud Cleaner: TRQJ250*1S-100*8N Desilter Cyclone: 4"*8pcs
Supply Pump Model: TRSB6*5-11J*2pcs Slurry Pump Model: TRSB6*5-12J
Jet Mud Mixer: TRSLH150-35(37kw) Mud Agitator: TRJBQ7.5
Weight: 17000kg Dimension: 10000*2360*4228mm
High Light:

500GPM Drilling Mud Recycling System

,

HDD Drilling Mud Recycling System

Compact Design Drilling Mud Recycling System for HDD



System Introduction



HDD mud recovery is developed, designed and manufactured to meet trenchless technology requirements at home and abroad and is applied in purification treatment of mud returned from underground during horizontal directional drilling process. Cuttings with big particle sizes are separated by shale shaker, mud cleaner and other solids control equipment. Mud materials required are added and evenly mixed for circulation via mud mixer to meet performance requirements for reuse. Mud is pumped into horizontal directional drilling mud system by mud pump for recycling. TR HDD mud recovery system can remarkably improve mud treatment efficiency, reduce mud cost of horizontal directional drilling and greatly increase rate of penetration.



Main Benefits of TR HDD Mud System:



1. Mud recovery system is designed based on both over 10 years of technical experience in solids control industry and in-depth market research, with benefits as reasonable structure, favorable treatment process and a wide range of application fields.
2. Multifunctional and integrated design to meet mud purification, recycling, preparation and storage, greatly reducing overall dimensions of the tank system, meeting HDD requirements on site and space.
3. Explosion-proof, rainproof and dustproof electric system to ensure construction safety and quality.
4. With simple and compact structure, light weight, foldable or dismountable walkway and guardrail, being easy for transportation and installation.
5. Manufacturing base and outstanding research & development and management team. TR has obtained API and ISO certifications, CE certification, Certification for export to Russia, ISO14001 and ISO18001 of Environmental Safety System, and can meet export standards of all countries around the world.



Main Parameters of TR HDD Mud System



Model TRHDD-200 Model TRHDD-500 TRHDD-1000
Capacity 200GPM (50m3 /h) Capacity 500GPM (120m3 /h) 1000GPM (240m3 /h)
Shale Shaker TRZS752S Shale Shaker TRZS703/TRZS585 TRZS703/TRZS585

Upper Screen Area

0.875m2

Screen Area

2.7m2 2X2.7m2

Upper Screen Area

1.35m2

Mud Cleaner

TRQJ250X1S-100X8N TRQJ250X2S-100X12N

Hydrocyclone

4"

Mud Cleaner

Mud Cleaner

10"×1pcs 10"×2pc

Hydroclycolone Qty

4 pcs

Desilter Cyclone

4"×8pcs 4"×12pcs

Supply Pump Model

TRSB4X3-12J

Bottom Screen Area

1.35m2 2.12m2
Slurry Pump Model TRSB4X3-11J Supply Pump TRSB6X5-11J*2 TRSB8X6-11J*2
Mud Hopper TRSLH100 Slurry Pump TRSB6X5-12J TRSB8X6-12J
Gross Power 44kW Jet Mud Mixer TRSLH150-35(37KW) TRSLH150-35(45KW)
Total Volume 5m3 Mud Agitator TRJBQ7.5 TRJBQ7.5
Dimension 4000×2360×2940mm Gross Power 130kW 184kW
Weight 5500kg Total Volume 15m3 30m3
    Dimension 10000×2360×4228mm 12100×2630×4438mm
    Weight 17000kg 20000kg




Explosion Proof 500GPM HDD Drilling Mud Recycling System 0



TR Solids Control is one of the most famous International Brand for Mud Solids Control System & Drilling Waste Management. We have the one stop for Solids Control Solution of your oil gas drilling, CBM drilling, HDD, and water well drilling as well as the construction drilling mud treatment etc.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
