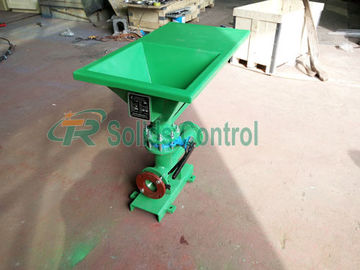

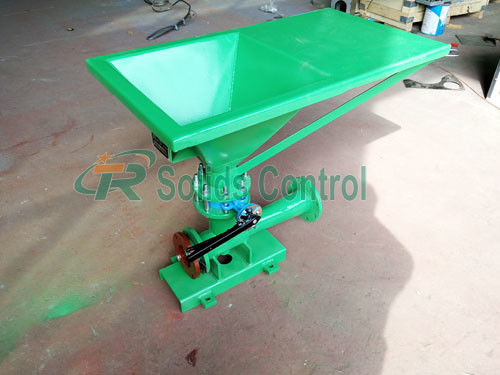

Epoxy Coated 240m3/H 600*600mm Mud Mixing Hopper

Epoxy Coated 240m3/H 600*600mm Mud Mixing Hopper
Epoxy Coated 240m3/H 600*600mm Mud Mixing Hopper
video play

Large Image :  Epoxy Coated 240m3/H 600*600mm Mud Mixing Hopper

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRSL150-50
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Iron or wooden case
Delivery Time: 10 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 5000pcs Per Month
Detailed Product Description
Capacity: 240m3/h Work Pressure: 0.25 To 0.4Mpa
Inlet Diameter: DN150 Hopper Dimension: 600*600mm
Weight: 170 Kg Application: Oil Well Drilling, Tunnel, Subway
High Light:

600*600mm Mud Mixing Hopper

,

240m3/H Mud Mixing Hopper

Large Capacity 240m3/h Mud Mixing Hopper



Product Introduction



Jet mixing device is used to prepare or add more drilling fluid, change the density, viscosity, water loss of the drilling fluid.
With this device, the raw materials for drilling fluid could be mixed and devided well.
There are two kinds of hopper:
* Rotational flow Hopper
* Jet Hopper



TRSLH jet mud mixer is a unit used together with the solids control system for petroleum drilling and horizontal directional drilling(HDD). The unit includes one sand pump, one venturi mud mixing hopper and one jet mud mixing hopper and pump that are installed in a base with pipe valves. It is safe and stable and can be moved conveniently. .



Main Advantages of TRSL Mud Hopper:

  1. Epoxy coated.
  2. Low-pressure, high-volume design.
  3. High feed rates for all types of solids.
  4. Exclusive jet nozzle/venturi design.
  5. Suitable for long return lines or high tanks.
  6. Efficient shearing to prevent balls or slugs.
  7. Rapid, uniform dispersion.
  8. Built-in sack table and receiving basin.
  9. Flexible operation for weighted or underweighted mixing applications.
Specifications of Jet Mud Mixer & Mud Hopper



Model TRSLH150-50 TRSLH150-40 TRSLH150-30 TRSLH100
Matched Pump TRSB8×6-13J(55kw) TRSB6×5-13J(45kw) TRSB5×4-14J(37kw) TRSB4X3-11J(15kw)
Treating Capacity 240m3/h 180m3/h 120m3/h 60m3/h
Working Pressure 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa
Inlet Diameter 150mm 150mm 150mm 100mm
Nozzle Diameter 50mm 40mm 30mm 30mm
Hopper Size 750x750mm 750x750mm 600x600mm 600x600mm
Burden Speed ≤100kg/min ≤80kg/min ≤60kg/min ≤40kg/min
Weight 1600kg 1450kg 1300kg 1100kg
Dimension 2200*1700*1200mm 2200*1700*1200mm 2000*1650*1100mm 2000*1650*1100mm



Epoxy Coated 240m3/H 600*600mm Mud Mixing Hopper 0
