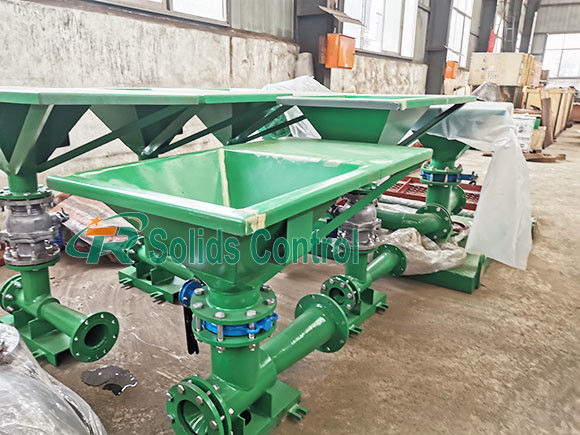

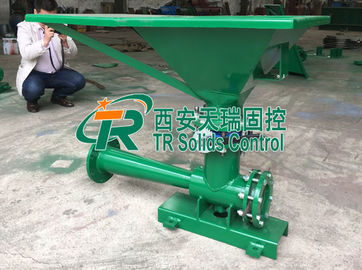

Solids Control 0.4Mpa Mud Funnel Jet Mud Mixer

Solids Control 0.4Mpa Mud Funnel Jet Mud Mixer
Solids Control 0.4Mpa Mud Funnel Jet Mud Mixer
video play

Large Image :  Solids Control 0.4Mpa Mud Funnel Jet Mud Mixer

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRSL150-30
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Iron or wooden case
Delivery Time: 10 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 5000pcs Per Month
Detailed Product Description
Capacity: 120m3/h Work Pressure: 0.25 To 0.4Mpa
Inlet Diameter: DN150 Hopper Dimension: 600*600mm
Weight: 165kg Application: Oil Well Drilling, Tunnel, Subway
High Light:

Mud Funnel Jet Mud Mixer

,

0.4Mpa Jet Mud Mixer

Mud Funnel Used in Jet Mud Mixer



Main Introduction



The mud hopper is a new type of jet ejector device designed by combining the venturi tube with the original jet nozzle and funnel. It is not only simple in structure, but also has strong feasibility. It is an important spare part of jet mud mixer. It’s the most commonly used dosing equipment in solid control system. In the emergency situation of blowout, we can use mud hopper to mix a large amount of weighting materials uniformly in the shortest time.



Our jet mud mixer can be matched with other drilling solids control system. It’s safe and reliable, and easy to move. It can improve pressure head of mixed liquid, enhance dispersion effect of material, make the material recycle and mix enough in the mud tank.



Design Features of TRSL Mud Hopper:

  1. Efficient shearing to prevent balls or slugs.
  2. High feed rates for all types of solids.
  3. Rapid, uniform dispersion.
  4. Exclusive jet nozzle/venturi design.
  5. Low-pressure, high-volume design.
  6. Suitable for long return lines or high tanks.
  7. Epoxy coated.
  8. Built-in sack table and receiving basin.
  9. Flexible operation for weighted or underweighted mixing applications.
Technical Data of Jet Mud Mixer & Mud Hopper



Model TRSLH150-50 TRSLH150-40 TRSLH150-30 TRSLH100
Matched Pump TRSB8×6-13J(55kw) TRSB6×5-13J(45kw) TRSB5×4-14J(37kw) TRSB4X3-11J(15kw)
Treating Capacity 240m3/h 180m3/h 120m3/h 60m3/h
Working Pressure 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa
Inlet Diameter 150mm 150mm 150mm 100mm
Nozzle Diameter 50mm 40mm 30mm 30mm
Hopper Size 750x750mm 750x750mm 600x600mm 600x600mm
Burden Speed ≤100kg/min ≤80kg/min ≤60kg/min ≤40kg/min
Weight 1600kg 1450kg 1300kg 1100kg
Dimension 2200*1700*1200mm 2200*1700*1200mm 2000*1650*1100mm 2000*1650*1100mm



Solids Control 0.4Mpa Mud Funnel Jet Mud Mixer 0



TR Solids Control offer the world with drilling mud jet mud mixing.We are an exporter of drilling fluid jet mud mixing hopper for Indian, Russian,middle east.etc. We manufacture and design drilling bentonite mud mixing hopper unit,drilling mud tank jet mixer. We supplied to Oilfield Company of the Turkey, Venezuela, Indonesia, Russia, the United Arab Emirates,Turkey,and Morocco and United Arab Emirates etc.



Competitive Advantages



1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
