Product Details:
Payment & Shipping Terms:
|
| Capacity: | 60 M3/h | Work Pressure: | 0.25 To 0.4Mpa |
|---|---|---|---|
| Inlet Diameter: | DN150 | Hopper Dimension: | 500*500mm |
| Weight: | 140 Kg | Application: | Oil Well Drilling, Tunnel, Subway |
| High Light: | 0.4Mpa Mud Mixing Equipment,60 M3/H Mud Mixing Equipment |
||

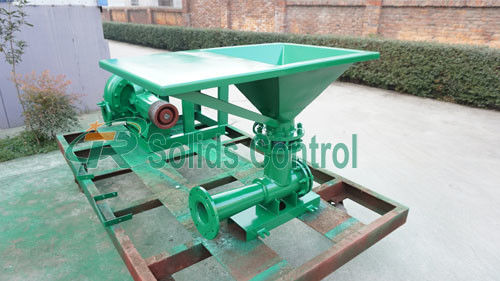

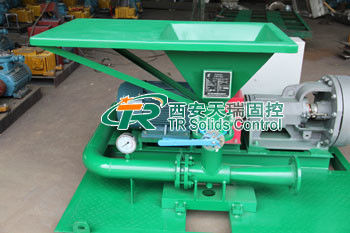

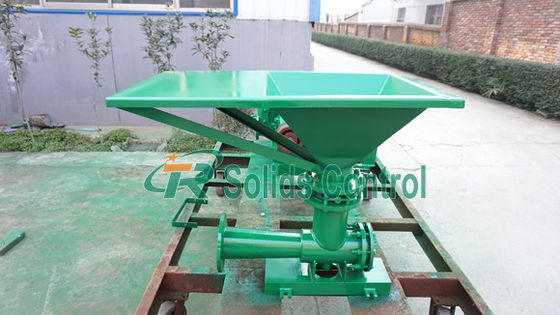

Hopper with Aluminium Tube, Butterfly Valve and Nozzle
Main Introduction
Our jet mud mixer aslo called mud mixing hopper unit is special equipment to prepare and increase the drilling fluids weight by adding and mixing bentonite, change the fluid density, change the mud density, viscosity, and dehydration. The effect is more prominent matching with Shear Pump. TRSLH jet mud mixer is a unit used together with the solids control system for petroleum drilling and horizontal directional drilling(HDD). The unit includes one sand pump, one venturi mud mixing hopper and one jet mud mixing hopper and pump that are installed in a base with pipe valves. It is safe and stable and can be moved conveniently. At the same time,we can make Twin-Hopper Unit with two pumps according to the user requirements. It is designed by TR solids control bentonite mud mixer,drilling mud tank jet mixer.
Put drilling fluid materials (betonies, barite powder) and some chemical additives (polymer) into circulation tank to increase total drilling fluid preparation and change drilling fluid density, viscosity, dehydration and so on. Direct inputting will cause a lot of settlement or agglomerate of drilling fluid materials and chemical additives with no gain of dispersed and well-proportioned drilling fluid.
Characterstics of TRSL Mud Hopper:
1. High feed rates for all types of solids.
2. Exclusive jet nozzle/venturi design.
3. Low-pressure, high-volume design.
4. Suitable for long return lines or high tanks.
5. Efficient shearing to prevent balls or slugs.
6. Rapid, uniform dispersion.
7. Built-in sack table and receiving basin.
8. Flexible operation for weighted or underweighted mixing applications.
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
Our company is willing to cooperate and make common progress with friends at home and abroad with first-calss products, first-class service and reasonable prices.
Packing & Delivery
Packing: Wooden case, or customized packing.
Delivery time: Stock or depending on quantity.
Delivery: By express, truck, train, air, sea.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
