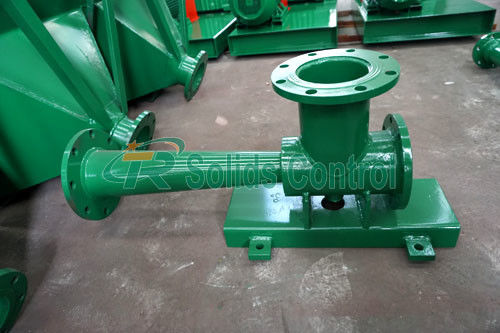

Epoxy Coated 0.4Mpa Oilfield Drilling Jet Mud Hopper

Epoxy Coated 0.4Mpa Oilfield Drilling Jet Mud Hopper
Epoxy Coated 0.4Mpa Oilfield Drilling Jet Mud Hopper
video play

Large Image :  Epoxy Coated 0.4Mpa Oilfield Drilling Jet Mud Hopper

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRSL150-30
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Iron or wooden case
Delivery Time: 10 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 5000pcs Per Month
Detailed Product Description
Capacity: 120m3/h Work Pressure: 0.25 To 0.4Mpa
Inlet Diameter: DN150 Hopper Dimension: 600*600mm
Weight: 165kg Application: Oil Well Drilling, Tunnel, Subway
High Light:

Drilling Jet Mud Hopper

,

Oilfield Mud Hopper

Jet Mud Hopper for Feeding in Oilfield Drilling



Main Introduction



The mud hopper is a new type of jet ejector device designed by combining the venturi tube with the original jet nozzle and funnel. It is not only simple in structure, but also has strong feasibility. It is an important spare part of jet mud mixer. It’s the most commonly used dosing equipment in solid control system. In the emergency situation of blowout, we can use mud hopper to mix a large amount of weighting materials uniformly in the shortest time.



Our direct injected mixing hopper is a directly injected mixer of the additive material of drilling fluid. It is mainly used to mix drilling fluid and additives quickly and uniformly to improve drilling fluid's performance. It also can have shearing and hydration system with shear pump. We have two models with metric and British system.



Main Features of TRSL Mud Hopper:

  1. High feed rates for all types of solids.
  2. Rapid, uniform dispersion.
  3. Exclusive jet nozzle/venturi design.
  4. Low-pressure, high-volume design.
  5. Suitable for long return lines or high tanks.
  6. Efficient shearing to prevent balls or slugs.
  7. Epoxy coated.
  8. Built-in sack table and receiving basin.
  9. Flexible operation for weighted or underweighted mixing applications.
Technical Parameters of Jet Mud Mixer & Mud Hopper



Model TRSLH150-50 TRSLH150-40 TRSLH150-30 TRSLH100
Matched Pump TRSB8×6-13J(55kw) TRSB6×5-13J(45kw) TRSB5×4-14J(37kw) TRSB4X3-11J(15kw)
Treating Capacity 240m3/h 180m3/h 120m3/h 60m3/h
Working Pressure 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa
Inlet Diameter 150mm 150mm 150mm 100mm
Nozzle Diameter 50mm 40mm 30mm 30mm
Hopper Size 750x750mm 750x750mm 600x600mm 600x600mm
Burden Speed ≤100kg/min ≤80kg/min ≤60kg/min ≤40kg/min
Weight 1600kg 1450kg 1300kg 1100kg
Dimension 2200*1700*1200mm 2200*1700*1200mm 2000*1650*1100mm 2000*1650*1100mm



Epoxy Coated 0.4Mpa Oilfield Drilling Jet Mud Hopper 0



TR Solids Control is a professional petroleum equipment company, has right of foreign trade(import and export), mainly engaged in drilling solid-control equipment production including sand pump series, WJQ serial shear pump, LW serial centrifuge, ZS/Z serial shale shaker, CS desander, CN desilter, QJ serial integrated cleaner, ZCQ vacuum deaerator, screen of shale shaker, mixing hopper, cyclone mixer, JB/W serial mud agitator, special screw conveyor and explosion-proof control box of various models etc. .We have passed American Petroleum Institute (API), Norwegian DNV and American Bureau of Shipping (ABS) authoritative on-spot inspections.



Competitive Advantages



1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
