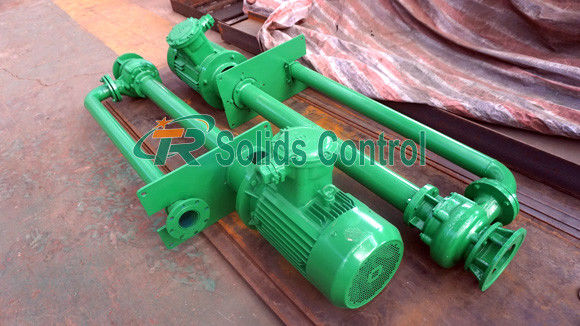

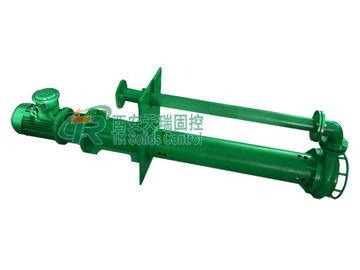

Oil Drilling Mud 82m3/H Industrial Submersible Pump

Oil Drilling Mud 82m3/H Industrial Submersible Pump
Oil Drilling Mud 82m3/H Industrial Submersible Pump
video play

Large Image :  Oil Drilling Mud 82m3/H Industrial Submersible Pump

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: 100YZ160-38B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 10 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 1000 Sets Per Month
Detailed Product Description
Model: 100YZ160-38B Flow: 82m3/h
Lift: 33m Speed: 1480r/min
Motor: 30kw Appllication: Oil & Gas Drilling, Trechless HDD & Tunnel, Drilling Waste Management
High Light:

submersible sludge pump

,

submersible sewage pump

Oil Drilling Mud Pump Vertical Feeding Pump Submerged Slurry Pump



Product Introduction



Our Submersible Slurry Pump adopt SS304 material to achieve a good seal effect, environmental protection,characteristics of Low noise, no pollution, smooth operation. No bearing and shaft seal between the impeller and the pump body underwater , so it is free-maintenance, durable for high temperature, then it is the ideal equipment to transport the greater medium of solid particles and provide impetus for the decanter centrifuge.


Submerged vertical centrifugal pump is vertical single-stage centrifugal pump structure, this series of pump is half open impeller, the impeller suction side stretches with mixing impeller, and on the front cover is equipped with cutter grinding fiber weeds, work flow mixing, mechanical crushing, to prevent clogging.



TR submersible slurry pump normally is used for feeding shale shaker for CBM, HDD or other drilling industry. The pump rotates clockwise from the direction of the motor. It is vertical single stage and single suction system and made of abrasion-resistant alloy. The standard length of pump 1.3m, but TR submersible slurry pump can be customized.



Properties of TR Submersible Slurry Pump

  1. Compact design covers small space.
  2. Impeller is semi-open type.
  3. Enough rigidity in submerged parts of the shaft.
  4. Could convey the medium containing solid particles with larger density.
  5. Submerge length can be customizable.
  6. No bearing between impeller and pump for less repair cost.
  7. Vertical motor is installed on motor base, connecting the pump by coupling.

Technical Parameters of YZ Submersible Slurry Pump



Model Flow Lift Speed Motor
50YZ25-12 25m3/h 12m 1430r/min 3kw
50YZ20-18 20m3/h 18m 1430r/min 4kw
80YZ50-20B 40m3/h 16m 1440r/min 5.5kw
80YZ50-20 60m3/h 17.5m 1440r/min 7.5kw
80YZ80-20 90m3/h 22m 1460r/min 11kw
100YZ100-30A 75m3/h 30m 1470r/min 18.5kw
100YZ100-30 60m3/h 36m 1470r/min 22kw
100YZ160-38B 82m3/h 33m 1480r/min 30kw
100YZ120-60 120m3/h 40m 1480r/min 45kw
150YZ250-40A 135m3/h 35m 1480r/min 55kw
150YZ250-40B 120m3/h 28m 1480r/min 37kw



Oil Drilling Mud 82m3/H Industrial Submersible Pump 0



Pump Applications


This series of pump is mainly used in environmental protection, municipal works, coal-fired power plants, gas coke plant, oil refineries, steel mills, mining, paper industry, cement factories, food factories, printing and dyeing industry such as suction thick liquid, heavy oil, diesel, dirty fluid, mud, mortar, sand flow and city ditches flow of sludg



Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
