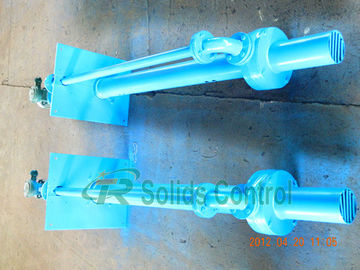

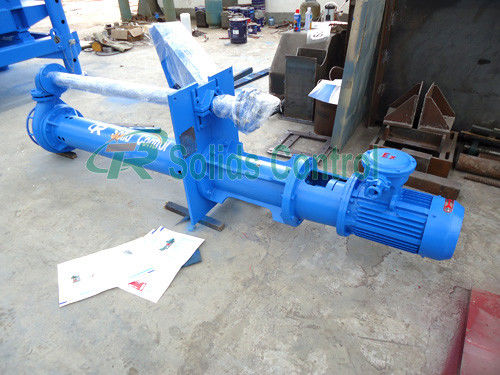

API Oil Drilling 17.5m Lift Submersible Sand Pump

API Oil Drilling 17.5m Lift Submersible Sand Pump
API Oil Drilling 17.5m Lift Submersible Sand Pump
video play

Large Image :  API Oil Drilling 17.5m Lift Submersible Sand Pump

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: 80YZ50-20
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 10 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 1000 Sets Per Month
Detailed Product Description
Model: 80YZ50-20 Flow: 60m3/h
Lift: 17.5m Speed: 1440r/min
Motor: 7.5kw Appllication: Oil & Gas Drilling, Trechless HDD & Tunnel, Drilling Waste Management
High Light:

submersible sludge pump

,

submersible sewage pump

Solid Control System Submersible Slurry Pump for Oil Drilling



Main Product Introduction



Submersible slurry pump normally is used for feeding shale shaker for CBM, HDD or other drilling industry. It is vertical single stage and single suction system and made of abrasion-resistant alloy. The standard length of pump 1.3m but TR submersible slurry pump can be customized.



Our YZ series submersible pump is mainly used in environmental protection, new type building materials, coal washing, municipal works, thermal power generation, coal gas coking planet, refinery, mining, paper making, cement plant, food products factory and other fields to pump thick oil, oil residue, dirty oil, mud, mortar, running sand and other liquids. Or used to pump liquid containing silt materials and corrosive liquids in chemical and medicine industry.



Characterstics of TR Submersible Slurry Pump

  1. Enough rigidity in submerged parts of the shaft.
  2. Submerge length can be customizable.
  3. Impeller is semi-open type.
  4. Compact design covers small space.
  5. Could convey the medium containing solid particles with larger density.
  6. Vertical motor is installed on motor base, connecting the pump by coupling.
  7. No bearing between impeller and pump for less repair cost.

Main Specifications of YZ Series Submersible Slurry Pump



Model Flow Lift Speed Motor
50YZ25-12 25m3/h 12m 1430r/min 3kw
50YZ20-18 20m3/h 18m 1430r/min 4kw
80YZ50-20B 40m3/h 16m 1440r/min 5.5kw
80YZ50-20 60m3/h 17.5m 1440r/min 7.5kw
80YZ80-20 90m3/h 22m 1460r/min 11kw
100YZ100-30A 75m3/h 30m 1470r/min 18.5kw
100YZ100-30 60m3/h 36m 1470r/min 22kw
100YZ160-38B 82m3/h 33m 1480r/min 30kw
100YZ120-60 120m3/h 40m 1480r/min 45kw
150YZ250-40A 135m3/h 35m 1480r/min 55kw
150YZ250-40B 120m3/h 28m 1480r/min 37kw



API Oil Drilling 17.5m Lift Submersible Sand Pump 0



OUR SERVICE


1). Competitive price.
2). Perfect After-Sale Service. Free technical support after-sale.
3). One year guarantee time.
4). Various kinds of models available.
5). We accept customized products as per your special requirement.
6). We are factory, with good product quality control and laoding time control.



TR Solids Control is a well-known manufacturer of submersible slurry pump in China for over 10 years. Our submersible slurry pumps have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices. We are welcome your inquiry and consulting!



Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
