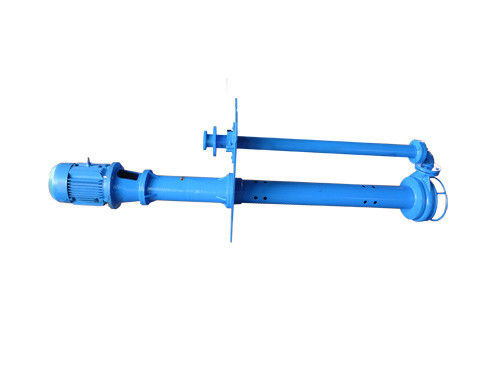

5.5kw 1440r/Min Speed Oilfield Submersible Slurry Pump

China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
Professional solids control manufacturer. Their Product replacement shaker screens have long service time and good treatment. They help us a lot!

—— Mr. Samir

I purchased 10 pcs TRSB8*6-12J centrifugal pump from TR Solids Control. They are good-looking and really have good quality and considerate after sales service!

—— Mr. Warren

We ordered a set of mud system for our oilfield drilling field, TR product showed good performance in the site. We like that very much!

—— Diego Olbrich

TR shaker screens have top quality and good price. We have been purchasing them from TR for more than 4 years.

—— Nghiem Thic Hai

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Hossein Jafari

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Ms. Crina

We start use TRZS703 Shale Shaker since 2012, now we have 8 sets working in our customer's oilfield site, perfect machine with reasonable price.

—— S. A. Kazi

I'm Online Chat Now

5.5kw 1440r/Min Speed Oilfield Submersible Slurry Pump

5.5kw 1440r/Min Speed Oilfield Submersible Slurry Pump
5.5kw 1440r/Min Speed Oilfield Submersible Slurry Pump
video play

Large Image :  5.5kw 1440r/Min Speed Oilfield Submersible Slurry Pump

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: 80YZ50-20B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 10 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 1000 Sets Per Month
Detailed Product Description
Model: 80YZ50-20B Flow: 40m3/h
Lift: 16m Speed: 1440r/min
Motor: 5.5kw Appllication: Oil & Gas Drilling, Trechless HDD & Tunnel, Drilling Waste Management
High Light:

submersible sludge pump

,

submersible sewage pump

Oilfield Vertical Submersible Slurry Pump With Short Delivery

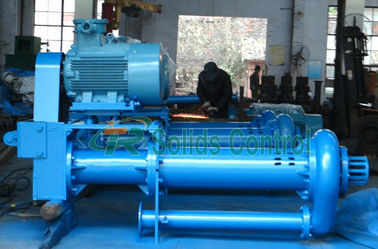

Product Introduction



Submersible slurry pump normally is used for feeding shale shaker for CBM, HDD or other drilling industry. It is vertical single stage and single suction system and made of abrasion-resistant alloy. The standard length of pump 1.3m but TR submersible slurry pump can be customized.



Submersible slurry pump can transport large particles of solid particles. The standard length of pump inserting liquid is 1.3 meter, and it can be equipped with a suction tube if required. The drive is mounted on the motor base by a vertical motor and connected to the pump with a coupling. The pump rotates clockwise from the direction of the motor.



Our YZ series submersible pump is mainly used in environmental protection, new type building materials, coal washing, municipal works, thermal power generation, coal gas coking planet, refinery, mining, paper making, cement plant, food products factory and other fields to pump thick oil, oil residue, dirty oil, mud, mortar, running sand and other liquids. Or used to pump liquid containing silt materials and corrosive liquids in chemical and medicine industry.



Main Features of TR Submersible Slurry Pump

  1. Submerge length can be customizable.
  2. Enough rigidity in submerged parts of the shaft.
  3. Impeller is semi-open type.
  4. Compact design covers small space.
  5. Could convey the medium containing solid particles with larger density.
  6. No bearing between impeller and pump for less repair cost.
  7. Vertical motor is installed on motor base, connecting the pump by coupling.

Technical Data of YZ Series Submersible Slurry Pump



Model Flow Lift Speed Motor
50YZ25-12 25m3/h 12m 1430r/min 3kw
50YZ20-18 20m3/h 18m 1430r/min 4kw
80YZ50-20B 40m3/h 16m 1440r/min 5.5kw
80YZ50-20 60m3/h 17.5m 1440r/min 7.5kw
80YZ80-20 90m3/h 22m 1460r/min 11kw
100YZ100-30A 75m3/h 30m 1470r/min 18.5kw
100YZ100-30 60m3/h 36m 1470r/min 22kw
100YZ160-38B 82m3/h 33m 1480r/min 30kw
100YZ120-60 120m3/h 40m 1480r/min 45kw
150YZ250-40A 135m3/h 35m 1480r/min 55kw
150YZ250-40B 120m3/h 28m 1480r/min 37kw



5.5kw 1440r/Min Speed Oilfield Submersible Slurry Pump 0



OUR SERVICE:
1). Competitive price.
2). Perfect After-Sale Service. Free technical support after-sale.
3). One year guarantee time.
4). Various kinds of models available.
5). We accept customized products as per your special requirement.
6). We are factory, with good product quality control and laoding time control.



Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
