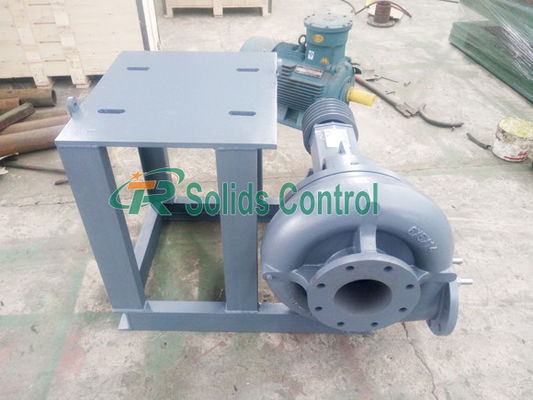

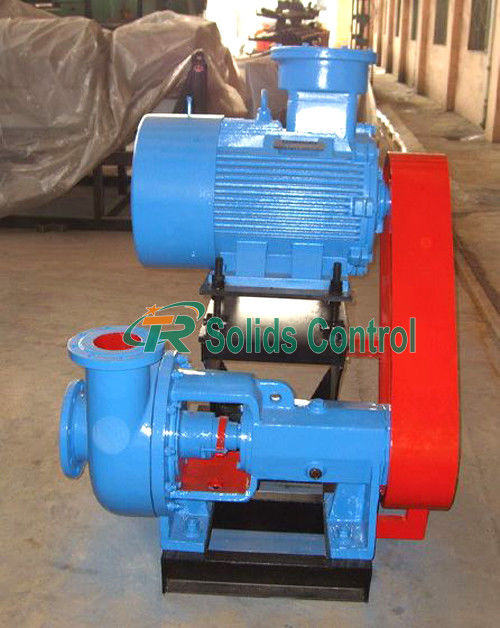

Oilfield Solid Control Mud Shear Pump 30m Motor For Trenchless Tunneling

Oilfield Solid Control Mud Shear Pump 30m Motor For Trenchless Tunneling
Oilfield Solid Control Mud Shear Pump 30m Motor For Trenchless Tunneling
video play

Large Image :  Oilfield Solid Control Mud Shear Pump 30m Motor For Trenchless Tunneling

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO9001 Certificate
Model Number: TRJQB5430
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 15 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 5000 Sets / Month
Detailed Product Description
Material: Steel Color: Green
Flow: 60m3/h Lift: 30m
Motor: 30kw Weight: 650kg
Dimension: 1050×1000×1100mm Application: Oil & Gas Drilling, Trenchless HDD & Tunnelling
High Light:

drill fluid pump


cutter pump

Oilfiedl Solid Control Mud Shear Pump for Trenchless Tunneling


Product Introduction


TRJQB series Shear Pump is a new type equipment which provides the fast configuration and treatment mud for users. TR Shear Pump can mix effectively and hydrate completely the material added in the drilling fluid, save the mud material, reduce the time of configuration, and provide the high performance mud for the well drilling.


Impeller of our shear pump is specially designed to have a wider flow pass and smooth vanes, with larger flow area and smooth fluid pass, making the shear pump reach the internationally advanced level in shear pump efficiency and energy-saving, 10% higher than similar products. TR shear pump can provide high displacement and head, and meet the requirements of mud preparation and management.


Main Advantages of TRJQB Shear Pump

  1. TR pump body adopts wear-resistant alloy cast iron, with longer service life.
  2. Material of mechanical seal is carbide alloy, its life is 5 times than normal.
  3. Using special impeller and shear board, shear efficiency> 95%.
  4. Pump shell wall is thick, made by casting mold. Wear-resistant, fine appearance.
  5. Oil seal adopts imported fluorine plastic seal, with good cooling capacity.
  6. Bearings use internationally renowned brands SKF, quality assured.

Technical Specifications of TR Oilfield Shear Pump


Model Flow Rate Lift Motor Weight Dimension
TRJQB6545 150m3/h 45m 55kw 980kg 1050×1000×1360mm
TRJBQ6535 100m3/h 35m 37kw 800kg 1050×1000×1230mm
TRJBQ5430 60m3/h 30m 30kw 650kg 1050×1000×1100mm
TRJBQ4330 40m3/h 30m 18.5kw 450kg 1050×1000×900mm


Oilfield Solid Control Mud Shear Pump 30m Motor For Trenchless Tunneling 0


Prior to entering into the drilling fluid, polymer are chopped and reduced in size with ideal efficiency to keep polymer particles perfectly contact with water, finally to accelerate the dissolving, dispersion and hydration process .Using shearing pump to treat the drilling fluid is favorable for increasing drilling operation,improving quality of drilling fluid, reducing the drilling cost and time,and reducing the labor intensity.


Maintain and enhance the excellent hydration effect of bentonite particles. Shearing pumps effectively accelerate the dispersion of bentonite to increase the surface contact area and ion exchange frequency of the particles, thereby to generate a better hydration velocity and drilling fluid rheological property. Particularly for offshore drilling with sea water drilling fluid.


Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
