| Specification: | 1050×1000×900mm | Weight: | 450kg |
|---|---|---|---|
| Motor: | 18.5kw | Type: | Shear Pump |
| High Light: | drill fluid pump,cutter pump |
||

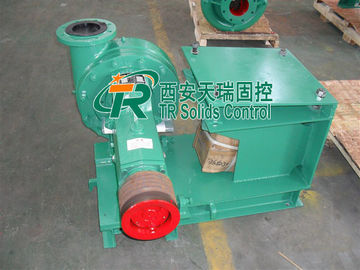

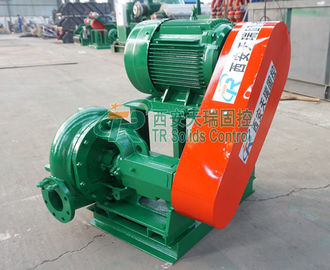

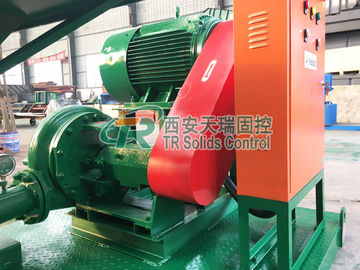

Mud Solid Control System JQB Series High Drilling Shear Pump
Introduction
JQB Series shearing pump is used to shear, refine, mix polymer, bentonite etc drilling mud material. It can remove “fish eye” help drilling fluid achieve high property for oil drilling. JQB series shearing pump can save over 30% bentonite. It is ideal equipment for oil and gas drilling contractor.
TR shear pump adopts high quality mechanical seal with high durability. There won't be any leakage. When drilling fluids flows pass shearing pump, there will be second cutting on the 50% fluid in the swirl collection room. Sometimes clients will require shearing mixing pump combined with shearing pump and mixing hopper.
Main Benefits of TR Mud Shear Pump
Key Specifications of TR Shear Pump
| Model | Flow Rate | Lift | Motor | Weight | Dimension |
| TRJQB6545 | 150m3/h | 45m | 55kw | 980kg | 1050×1000×1360mm |
| TRJBQ6535 | 100m3/h | 35m | 37kw | 800kg | 1050×1000×1230mm |
| TRJBQ5430 | 60m3/h | 30m | 30kw | 650kg | 1050×1000×1100mm |
| TRJBQ4330 | 40m3/h | 30m | 18.5kw | 450kg | 1050×1000×900mm |
The shear pump shaft has high strength that can bear certain load, reducing shafts deflection and extending seals service life;The shaft is lubricated with lubricants and lubricating grease and the oil seal is made of special structure and materials, suitable for high and low temperatures and complicated environment.
Front opening structure is used for convenient installation, repair and maintenance.
Our TRJQB serial shear pump is a special pump for solid control drilling fluid additives, with engine powers of 75kw, 55kw, 45kw and 37kw, suitable for power grids of 50Hz and 60Hz, and it has both Metric and British systems as measuring standards.
The shear pump can provide high displacement and head, and meet the requirements of mud preparation and management.
Any other questions please contact us freely. You must get satisfied solutions on TRJQB Shear pump just contact TR Solids Control freely. The qualified products while economical cost with swift delivery and circumspect service.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
