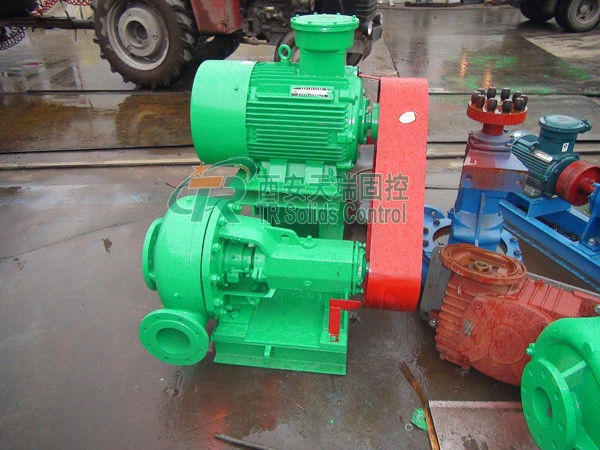

18.5kw Shear Oilfield Pumping Units Trenchless Shield Drilling Mud With 30m Lift

China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
Professional solids control manufacturer. Their Product replacement shaker screens have long service time and good treatment. They help us a lot!

—— Mr. Samir

I purchased 10 pcs TRSB8*6-12J centrifugal pump from TR Solids Control. They are good-looking and really have good quality and considerate after sales service!

—— Mr. Warren

We ordered a set of mud system for our oilfield drilling field, TR product showed good performance in the site. We like that very much!

—— Diego Olbrich

TR shaker screens have top quality and good price. We have been purchasing them from TR for more than 4 years.

—— Nghiem Thic Hai

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Hossein Jafari

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Ms. Crina

We start use TRZS703 Shale Shaker since 2012, now we have 8 sets working in our customer's oilfield site, perfect machine with reasonable price.

—— S. A. Kazi

I'm Online Chat Now

18.5kw Shear Oilfield Pumping Units Trenchless Shield Drilling Mud With 30m Lift

18.5kw Shear Oilfield Pumping Units Trenchless Shield Drilling Mud With 30m Lift
18.5kw Shear Oilfield Pumping Units Trenchless Shield Drilling Mud With 30m Lift
video play

Large Image :  18.5kw Shear Oilfield Pumping Units Trenchless Shield Drilling Mud With 30m Lift

Product Details:
Place of Origin: Xi′an, China
Brand Name: TR Solids Control
Certification: ISO 9001:2008
Model Number: TRJQB4330
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: can be negotiated
Packaging Details: Pallet or Wooden Case
Delivery Time: 30days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 5000 Sets / Month
Detailed Product Description
Specification: 1050×1000×900mm Weight: 450kg
Motor: 18.5kw Type: Shear Pump
Certification: ISO 9001:2008 Model: TRJQB4330
High Light:

drill fluid pump

,

cutter pump

18.5KW Trenchless Shield Drilling Mud Shear Pump ISO Certified , With Short Delivery

Main Introduction

JQB Series shearing pump is used to shear, refine, mix polymer, bentonite etc drilling mud material. It can remove “fish eye” help drilling fluid achieve high property for oil drilling. JQB series shearing pump can save over 30% bentonite. It is ideal equipment for oil and gas drilling contractor.

TR shear pump adopts high quality mechanical seal with high durability. There won't be any leakage. When drilling fluids flows pass shearing pump, there will be second cutting on the 50% fluid in the swirl collection room. Sometimes clients will require shearing mixing pump combined with shearing pump and mixing hopper.



TRJQB series shear pump is a special equipment in solids control system which can meet all customers’ requirements of preparing dilling fluid in oil drilling site. Its design has a special impeller structure, which produces a strong shear force when liquid flows. By smashing and dispersing chemical particles, soil and other solid phase in liquid flow, so that the liquid in the solid phase broken and distributed evenly. This ideal solids control equipment has high performance and gains customer’s good evaluation.

Characterstics of TR Shear Pump

  1. Oil seal adopts imported fluorine plastic seal, with good cooling capacity.
  2. Using special impeller and shear board, shear efficiency> 95%.
  3. Bearings are internationally renowned brands SKF, quality assured.
  4. Material of mechanical seal is carbide alloy, its life is 5 times than normal.
  5. Pump shell wall is thick, made by casting mold. Wear-resistant, fine appearance.
  6. Pump body adopts wear-resistant alloy cast iron with long service life.

Specifications of TR Shear Pump:



Model Flow Rate Lift Motor Weight Dimension
TRJQB6545 150m3/h 45m 55kw 980kg 1050×1000×1360mm
TRJBQ6535 100m3/h 35m 37kw 800kg 1050×1000×1230mm
TRJBQ5430 60m3/h 30m 30kw 650kg 1050×1000×1100mm
TRJBQ4330 40m3/h 30m 18.5kw 450kg 1050×1000×900mm



18.5kw Shear Oilfield Pumping Units Trenchless Shield Drilling Mud With 30m Lift 0



Our shear pump which manufactured with special machinery seal technology, has very long service life, reaching internationally advanced level and improved operational reliability; Its impeller is specially designed to have a wider flow pass and smooth vanes, with larger flow area and smooth fluid pass, making the shear pump reach the internationally advanced level in shear pump efficiency and energy-saving, 10% higher than similar products.



Shear pump can make polymer shear dilute and hydrate The polymer used in mud has a high molecular weight and is difficult to be hydrated directly. Therefore, the polymer needs to be pre sheared. Shear pump can provide high shear efficiency and accelerate the process of polymer dilution and hydration.


Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
