Product Details:
Payment & Shipping Terms:
|
| Capacity: | 180m3/h | Matching Pump: | TRSB6*5-13J |
|---|---|---|---|
| Motor Power: | 45kw | Work Pressure: | 0.25 To 0.4Mpa |
| Inlet Diameter: | 150mm | Nozzle Diameter: | 40mm |
| Hopper Dimension: | 750*750mm | Burden Speed: | <80kg/min |
| Weight: | 1450kg | Dimension: | 2200*1700*1200mm |
| High Light: | mud hopper,mud mixing hopper |
||

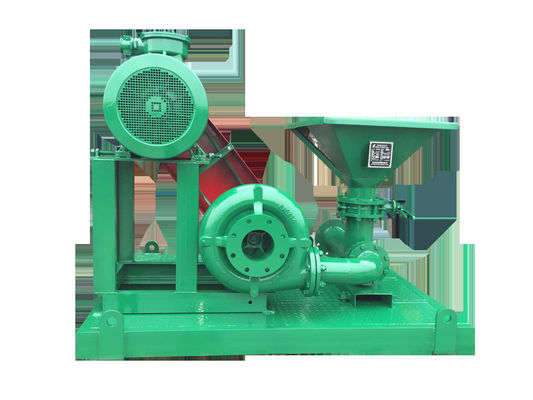

High Performance Solids Control Oil Drilling Jet Mud Mixer for Sale
Product Introduction
Jet Mud mixeris is a special equipment to prepare and increase the drilling fluids weight by adding and mixing bentonite, change the fluid density, change the mud density, viscosity, and dehydration. The effect is more prominent matching with Shear Pump. TRSLH series jet mud mixer is a unit used together with the solids control system for petroleum drilling and horizontal directional drilling(HDD).
Jet Mud Mixer is mainly used to weight the amount of drilling mud and changing drilling fluid density and viscosity, water lose, etc. If mud mixer works with shearing pump, the efficiency of it will increase rapidly. Double jet mud mixer can be also produced according to your requirements.
TRSL series mud hopper are welcomed by clients for good price and high performance. Nowadays TRSLH series jet mud mixer is widely used in these industries: Trenchless HDD & Tunnelling, Drilling Waste Management, Oil and Gas Drilling, Water Drilling, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, Bored Piling.
Main Advantages of TR Drilling Jet Mud Mixer
Parameters of TR Drilling Jet Mud Mixer
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Work Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
Main Service
1. Material: Iron Q235B from BAOSTEEL with quality certificate.
2. Electric components: The well-known brands as Siemens, Schneider or ABB.
3. Motor: Adopt Nanyang or other national famous brand explosion-proof motor.
4. Painting: Anti-rust treatment: Galvanizing treatment for the base, hopper and the pipes.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
