Product Details:
Payment & Shipping Terms:
|
| Capacity: | 180m3/h | Matching Pump: | TRSB6*5-13J |
|---|---|---|---|
| Motor Power: | 45kw | Work Pressure: | 0.25 To 0.4Mpa |
| Inlet Diameter: | 150mm | Nozzle Diameter: | 40mm |
| Hopper Dimension: | 750*750mm | Burden Speed: | <80kg/min |
| Weight: | 1450kg | Dimension: | 2200*1700*1200mm |
| High Light: | mud hopper,mud mixing hopper |
||

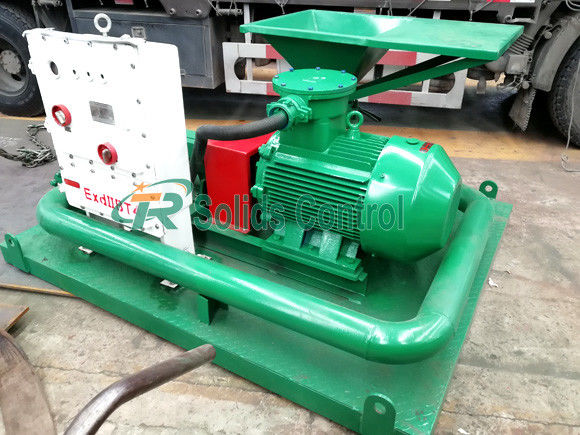

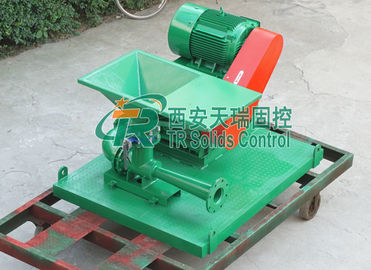

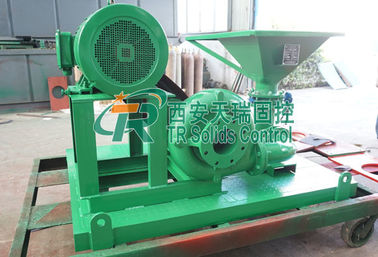

Oilfield Jet Mud Mixer / Oil Drilling Mud Mixing Equipment Bentonite Mixer
Mian Introduction
Drilling jet mud mixer is a piece of equipment used together with solids control system together. It can meet the requirements of drilling fluid weighting and mixing for solids control system of 1,500 m to 7,000 m drilling. This equipment is a single jet mixer combined with 45 Kw (or 55 Kw) sand pump and a jet mud hopper or a double jet mixer of two pumps and two hoppers. It features as safe performance and convenient transportation.
TRSL series mud hopper are welcomed by clients for good price and high performance. Nowadays TRSLH series jet mud mixer is widely used in these industries: Trenchless HDD & Tunnelling, Drilling Waste Management, Oil and Gas Drilling, Water Drilling, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, Bored Piling.
Design Features of TR Jet Mud Mixer
Main Parameters of Drilling Jet Mud Mixer
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Work Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
We are an exporter of drilling fluid jet mud mixer for Indian, Russian,middle east.etc. TR Solids Control operate international oil gas drilling mud separation system sales,service,manufacturing,distribution serivce.Buy drilling cuttings jet mud mixer from China manufacturer.China leading technology,100% Quality Control,Best pirce,Reliable service.Your best hydraulic bentonite mud mixer,drilling mud tank jet mixer deal starts here.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
