Water Based Management Drilling Mud System With 2 Screw Pumps 9000*2200*1300mm

Water Based Management Drilling Mud System With 2 Screw Pumps 9000*2200*1300mm
Water Based Management Drilling Mud System With 2 Screw Pumps 9000*2200*1300mm
video play

Large Image :  Water Based Management Drilling Mud System With 2 Screw Pumps 9000*2200*1300mm

Product Details:
Place of Origin: Xi′an, China
Brand Name: TR Solids Control
Certification: ISO 9001:2008
Model Number: TRDWM
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: can be negotiated
Packaging Details: Wooden Case or by Container
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 set per month
Detailed Product Description
Material: Stainless Steel Operation Pressure: Atmospheric Pressure
Specification: 9000*2200*1300mm Type: Wbm
High Light:

mud recycling system

,

mud treatment system

Water-Based Drilling Waste Management Meets API Standard / Drill Cutting Treatment System

Introduction

Drilling waste mud is one of the major pollution sources in the oil and gas industry. Due to the engineering requirements, oil drilling mud is mixed with oil, water and organic clay etc. In order to meet the customer's requirements and environmental protection, TR Solids Control has developed drilling waste management(Mud non-landing system) with our own intellectual property rights. This system is used to treat waste drilling fluids by matched with drilling processing equipment and applicable pharmaceutical formulations. It ensures that waste slurry doesn't land for harmless treatment, and solves the issue successfully that drilling waste can not be treated efficiently and environmentally friendly.



Our TR drilling waste management is composed of drying shale shaker, vertical cutting dryer, decanter centrifuge, screw conveyor, slurry sand pump, centrifuge slurry pump (submersible slurry pump or screw pump), mud agitator, mud storage tank and other equipment.

Features of TR Drilling Waste Management

  1. Reduce the drilling waste quantity to save money on the disposal or further treatment.
  2. For oil based drilling cuttings, normally it can reduce the oil on the cuttings to 3% to 5%.
  3. For water based drilling cuttings, normally it can reduce the moisture content for easy transportation.
  4. Recycling drilling fluids for reuse to save cost.


Technical Data of TR Drilling Waste Management



S/N S/N Description
1 Vertical Cuttings Dryer TRCD930 with option for VFD or fixed speed
2 Decanter Centrifuge TRGLW355Centrifuge 14inch bowl,Optional model as below:
TRGLW355 Centrifuge with VFD drive.
TRGLW355 standard with fixed speed
3 Screw Pump Two sets TRG30A-075 Screw Pump with capacity:30m³/h for each pump.
One for taking fluids from catching tank to feed the decanter centrifuge,the other for flushing the Vertical dryer.
4 Skid with catching tank Fast move skid for mounting all the equipment
One Catching tank with capacity:4m³ for catching fluid from vertical cuttings dryer.
5 Telescopic Skid Two telescopic skid with walkways and handrails for safe operation.
One for mounting the decanter centrifuge to a higher position in order to allow the centrifuge discharged fluids feed to active mud system by gravity.
The other telescopic skid for mounting and adjusting the height of the vertical cutting dryer to allow the discharge of drying cuttings
6 Electric Cradle 0.5 Tons electric cradle for lifting the components of vertical dryer
7 Electric Control System Two lighting system,electrical control boxes and cables and plugs for operation the complete system.

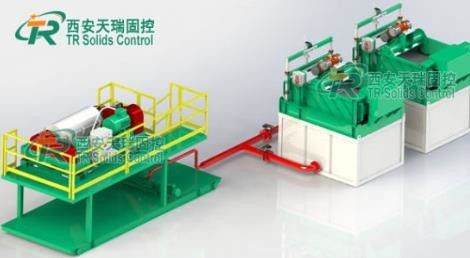

Water Based Management Drilling Mud System with 2 Screw Pumps



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
