SLH150-30 API Jet Mud Mixer Oil Well Drilling Solid Control 150mm Inlet Diameter

SLH150-30 API Jet Mud Mixer Oil Well Drilling Solid Control 150mm Inlet Diameter
SLH150-30 API Jet Mud Mixer Oil Well Drilling Solid Control 150mm Inlet Diameter
video play

Large Image :  SLH150-30 API Jet Mud Mixer Oil Well Drilling Solid Control 150mm Inlet Diameter

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRSLH150-30
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Iron or wooden case
Delivery Time: 15 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 5000 Sets Per Month
Detailed Product Description
Capacity: 120m3/h Matching Pump: TRSB5*4-14J
Motor Power: 37kw Work Pressure: 0.25 To 0.4Mpa
Inlet Diameter: 150mm Nozzle Diameter: 30mm
Hopper Dimension: 600*600mm Burden Speed: <60kg/min
Weight: 1300kg Dimension: 2000*1650*1100mm
High Light:

mud hopper

,

mud mixing hopper

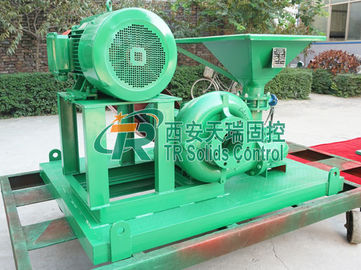

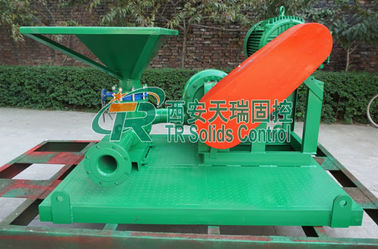

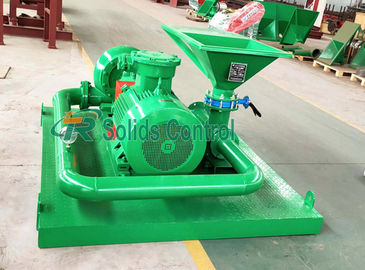

SLH150-30 API Oil Well Drilling Solid Control Jet Mud Mixer with Hopper



Main Introduction



Jet mud mixer(mud mixing hopper) is the equipment to match with the drilling solids control equipments, regularly used to mix and adjust the proportion of drilling fluid, changing the density and viscosity etc. It has a more excellent operation if being matched with shear pump, and also can be designed as double jet mud mixer as the clients’ requirements.



TRSLH series mud hopper is used to concoct the drilling fluids and to change its density and viscosity. It is a new type of jet ejector device designed by combining the venturi tube with the original jet nozzle and funnel. It is not only simple in structure, but also has strong feasibility. It is an important spare part of jet mud mixer. In addition, it’s the most commonly used dosing equipment in solid control system. In the emergency situation of blowout, we can use mud hopper to mix a large amount of weighting materials uniformly in the shortest time.



Design Characterstics of TR Jet Mud Mixer

  1. The unit includes one sand pump, one jet mixing hopper
  2. It is safe and stable and can be moved conveniently.
  3. It is designed for solids control bentonite mud mixer,drilling mud tank jet mixer.
  4. The effect is more prominent matching with Shear Pump.
  5. It can be made Twin Jet Mud Mixers according to the user requirements.
Technical Parameters of TR Jet Mud Mixer



Model TRSLH150-50 TRSLH150-40 TRSLH150-30 TRSLH100
Matched Pump TRSB8×6-13J(55kw) TRSB6×5-13J(45kw) TRSB5×4-14J(37kw) TRSB4X3-11J(15kw)
Treating Capacity 240m3/h 180m3/h 120m3/h 60m3/h
Working Pressure 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa
Inlet Diameter 150mm 150mm 150mm 100mm
Nozzle Diameter 50mm 40mm 30mm 30mm
Hopper Size 750x750mm 750x750mm 600x600mm 600x600mm
Burden Speed ≤100kg/min ≤80kg/min ≤60kg/min ≤40kg/min
Weight 1600kg 1450kg 1300kg 1100kg
Dimension 2200*1700*1200mm 2200*1700*1200mm 2000*1650*1100mm 2000*1650*1100mm



SLH150-30 API Jet Mud Mixer Oil Well Drilling Solid Control 150mm Inlet Diameter 0



Main Service



1. Material: Iron Q235B with quality certificate.
2. Motor: Adopt Nanyang or other national famous brand explosion-proof motor.

3. Electric components: The well-known brands as Siemens, Schneider or ABB.
4. Painting: Anti-rust treatment: Galvanizing treatment for the base, hopper and the pipes.



Competitive Advantages



1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
