ZX100/50 Bored Piling Mud Treatment System High Mud Handling Capacity RoHS

ZX100/50 Bored Piling Mud Treatment System High Mud Handling Capacity RoHS
ZX100/50 Bored Piling Mud Treatment System High Mud Handling Capacity RoHS
video play

Large Image :  ZX100/50 Bored Piling Mud Treatment System High Mud Handling Capacity RoHS

Product Details:
Place of Origin: China
Brand Name: TR Solids Control
Certification: CE, RoHS, ISO 9001:2000
Model Number: TRZX-100/50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Can be nogotiated
Packaging Details: Wooden Case or by Container
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 PCS/Year
Detailed Product Description
Specification: 3100*2030*1300mm Transport Package: Wooden Case Or By Container
Port: Tianjin, China Material: Stainless Steel, Q235
High Light:

mud recycling system


mud treatment system

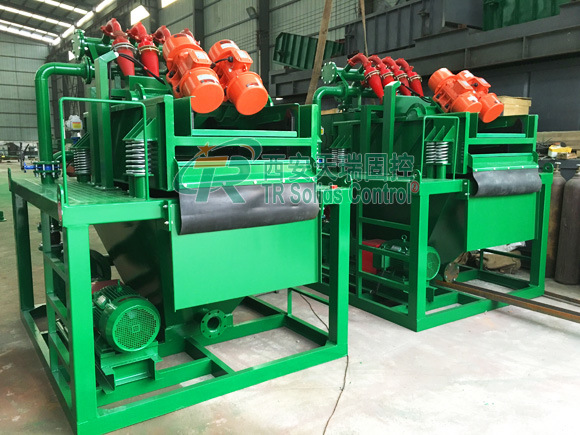

High Capacity ZX100/50 Bored Pile Desanding Plant , For Well Drilling Slurry Treatment


Brief Introduction


TR bored pile desanding plant is design for bored pile & TBM on construction with economy option and very compact design for small footprint. Our desanding plant can be used for economy option as HDD mud recycling system. The desanding plant is design for flexible working and installation to suit bored pile, TBM or HDD mud recycling system.


This kind of mud recovery system is mainly used in mud solids wall taken modern foundation engineering construction, circulation drilling technology of large diameter pile and cut-off walls. The device makes the mud purification fully, for effective separation of slag. It reduces the sticking accidents, improves the drilling quality. During this process mud can be recycled fully, it reduces the cost and the pollution to environment.


Advantages of TR Bored Pile Desanding Plant

  1. High mud handling capacity, sand can be removed efficiently.
  2. Effective separation of soil crusts, pore-forming efficiency is enhanced.
  3. Mud reuse saves mud making materials and reduces construction cost.
  4. It can improve quality and working efficiency of pore making in the pile foundation.
  5. Mud closed-circuit circulation mode and low ballast material moisture content are helpful to reduce environment pollution.
  6. The equipment for modular design and compact structure, making it easy to put in the construction and convenient to move.

Technical Parameters of TR Bored Pile Desanding Plant


Model TRZX-50/25 TRZX-100/50 TRZX-200/50
Fluid Capacity ≤50m³/h ≤100m³/h ≤200m³/h
Sludge Treatment Capacity ≤26T/h ≤50m³/h ≤50m³/h
Separation Point 25μm 50μm 50μm
Shale Shaker TRZS753 TRZS753 TRZS705
Screen Area







Vibration Motor 1.0kw×2 1.0kw×2 1.5KW×2
Matching Pump TRSB4×3-12(15KW) TRSB5×4-13(30KW) TRSB6×5-13J(45KW)
Matching Hydrocyclone DN100×4 DN250×1 DN250×2
Tank Dimension 2.1x1.5x2.6m 3.05x2.0x1.2m 3.6x2.1x1.2m
Dimension   3.12x2.2x2.38m 3.7x2.2x2.54m

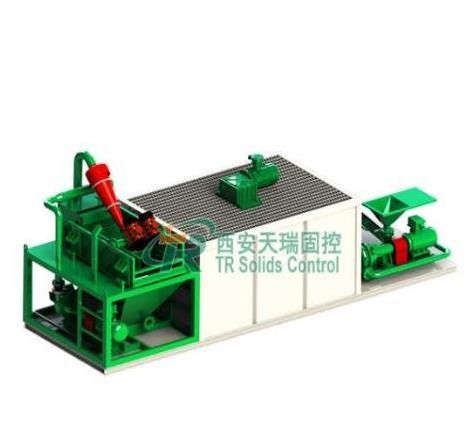

100m³ /H Capacity Bored Piling Mud Recycling System

Main Application


TR Bored Pile Desanding Plant has demonstrated its high-performance capabilities at many job sites worldwide including the applications of tunneling, micro-tunneling, pipe-jacking, bored piles construction, piling construction and diaphragm wall construction, etc. We welcome your inquiry and visiting our company!


Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
