| Material: | Stainless Steel | Type: | Bored Pile Construction Drilling Mud System |
|---|---|---|---|
| Power Source: | Electric | Operation Pressure: | Atmospheric Pressure |
| System Dimension: | 2300*1830*2400mm | Port: | Tianjin, Shanghai Etc. |
| High Light: | mud recycling system,mud treatment system |
||

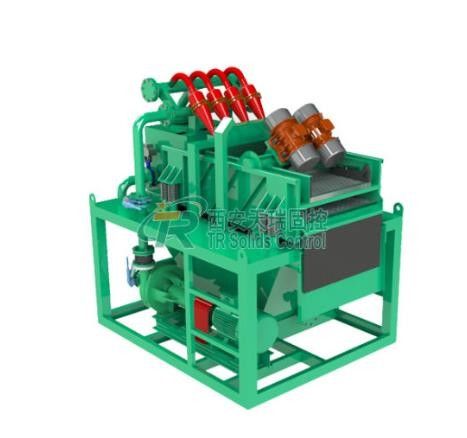

Green Electric Drilling Mud System Double Layers Bored Pile Construction
Main Introduction

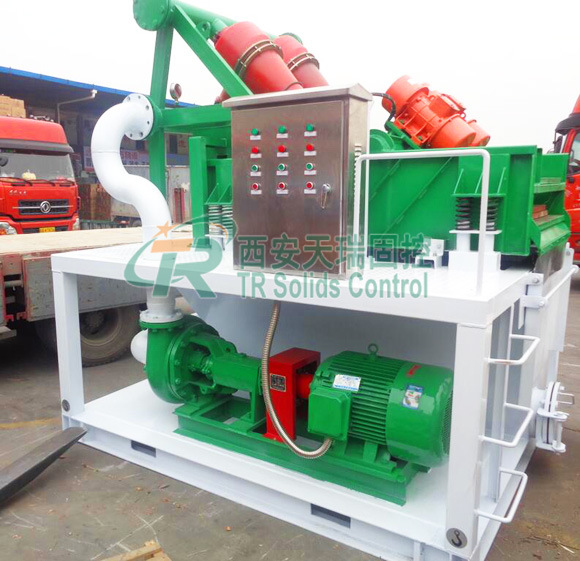

TR bored pile desanding plant is an economic way for the mud recycling. It is very popular for bored piling slurry treatment, HDD (trenchless) industry, TBM slurry treatment as well as water well drilling etc.
The whole equipment where mud may splash did seal or block processing, such as plasma around the pool and storage rack connection part completely sealed, which is located around the pool of slurry storage in shale shakerto increase the protective plate and prevent the machine in operation. Mud splash effectively protects the three-phase asynchronous motor unaffected by flying pulp covered its heat dissipation function, which protects the tidy of the machine.
Key Features of TR Bored Pile Desanding Plant:
Technical info. of TR Bored Pile Desanding Plant
| Model | TRZX-50/25 | TRZX-100/50 | TRZX-200/50 |
| Fluid Capacity | ≤50m³/h | ≤100m³/h | ≤200m³/h |
| Sludge Treatment Capacity | ≤26T/h | ≤50m³/h | ≤50m³/h |
| Separation Point | 25μm | 50μm | 50μm |
| Shale Shaker | TRZS753 | TRZS753 | TRZS705 |
| Screen Area |
Upper:700×1250 Bottom:750×900×2 |
Upper:700×1250 Bottom:750×900×2 |
Upper:750×900×2 Bottom:700×1250×3 |
| Vibration Motor | 1.0kw×2 | 1.0kw×2 | 1.5KW×2 |
| Matching Pump | TRSB4×3-12(15KW) | TRSB5×4-13(30KW) | TRSB6×5-13J(45KW) |
| Matching Hydrocyclone | DN100×4 | DN250×1 | DN250×2 |
| Tank Dimension | 2.1x1.5x2.6m | 3.05x2.0x1.2m | 3.6x2.1x1.2m |
| Dimension | 3.12x2.2x2.38m | 3.7x2.2x2.54m |
Product Application
TR Bored Pile Desanding Plant has demonstrated its high-performance capabilities at many job sites worldwide including the applications of bored piles construction, tunneling, micro-tunneling, pipe-jacking, piling construction and diaphragm wall construction etc. We also provide customized mud system. Welcome your inquiry and consulting!
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
